HELP!!! Impeller replacement!!
Submitted by Didzy on Fri, 2014-03-28 19:41
Gday Guys
Started my 97 4 stroke 50hp Merc today and no water shooting from outlet!!
Dropped the 5 bolts to drop off leg but the leg will only move about 3 inches then won't budge!!
looks like it's stuck on the shaft that's closest to the boat!!
Am I missing something or should it pull straight out so I can access water pump??
EDIT
2 pictured added
1st is as far as I can drop leg

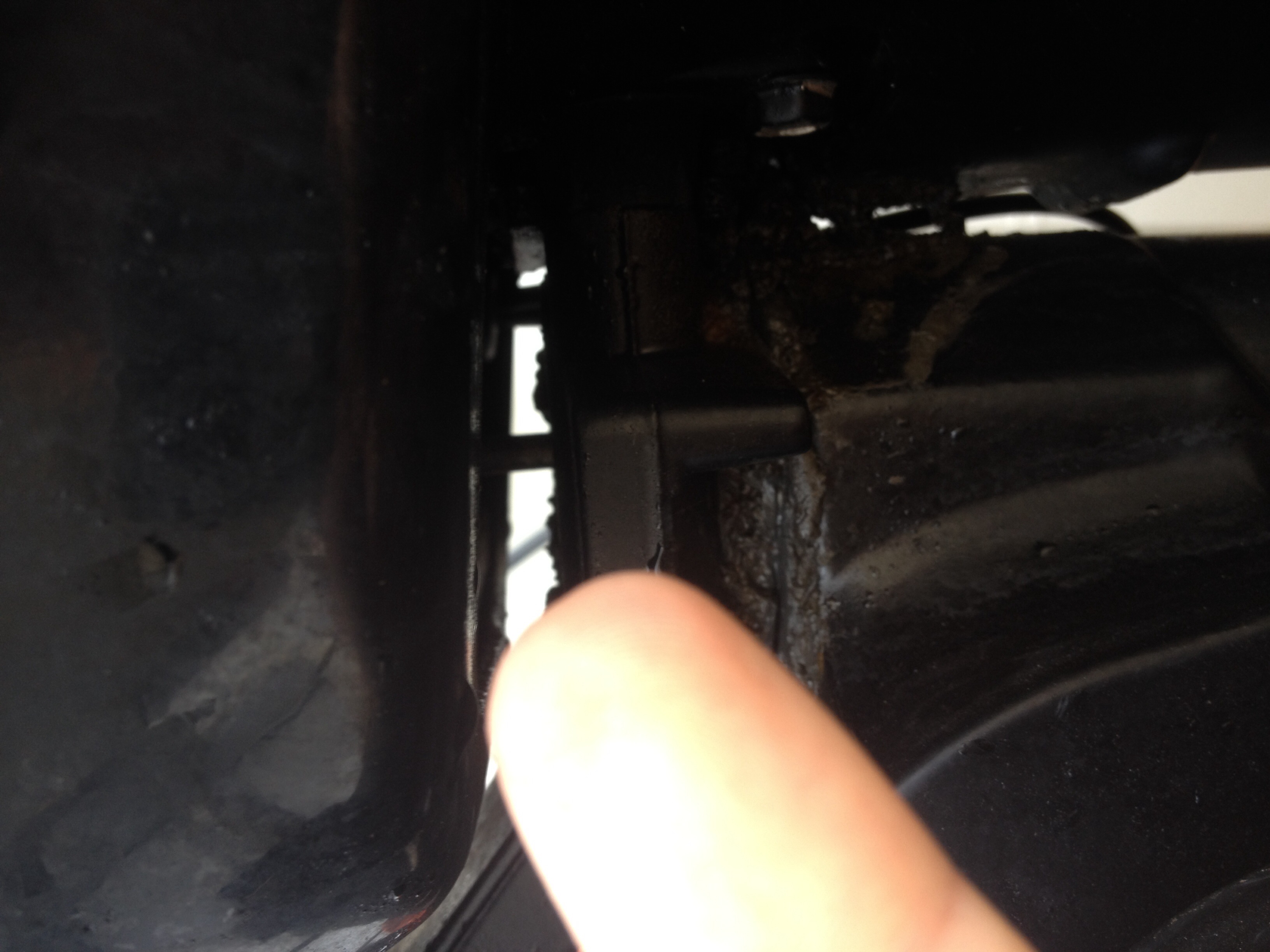

2nd finger pointing to where I thought u could access lock nut
____________________________________________________________________________
4 days on 4 days off equates to 4 days work and 4 days fishing
Image Upload:
DTrain
Posts: 486
Date Joined: 10/02/12
Have you disconnected the
Have you disconnected the gear linkage? The rod that connects the gear shifter down to the gearbox.
Also some engines have a bolt underneath where the trim tab is, so you need to undo the trim tab to get to the bolt underneath. (Make sure you mark the trim tab position before removing it).
Didzy
Posts: 33
Date Joined: 19/05/13
Na I haven't done gear
Na I haven't done gear linkage how do u do that?? Is it under cowling?? Think I've got all bolts cause I can drop it enuff to clear the bolts and spin it!!
4 days on 4 days off equates to 4 days work and 4 days fishing
dxd351
Posts: 12
Date Joined: 23/09/13
is this the model where the
is this the model where the power head has to come off to disconnect gear selector shaft.
DTrain
Posts: 486
Date Joined: 10/02/12
Is this the right
Is this the right model?
http://www.youtube.com/watch?v=wv6oBxA9Gtw
dxd351
Posts: 12
Date Joined: 23/09/13
just remembered I was doing
just remembered I was doing the seals on the steering / pivot shaft. Power head off, but also did impeller while apart
scano
Posts: 1247
Date Joined: 31/05/07
The easiest way is
Mark what height the gear linkage lower nut is positioned in with masking tape. Then using two spanners separate the upper linkage nut from the lower linkage locking nut. Wind the main linkage nut upward in a clockwise direction to a point where the the 2x gear linkage shafts separate.
if you are still unsure the you tube is your best friend in this regard
scano
Rob H
Posts: 5807
Date Joined: 18/01/12
Most outboards the gear
Most outboards the gear linkage (front one) just slips into a spline but some the gear linkage goes up and down rather than rotates and has a clamp to join it.
The ones I have seen are accessable under the powerhead between the leg and transom bracket, you may need to put it in fwd or reverse so the clamp appears.
It shouldnt be inside the engine cover but underneath.
Put the lower unit back in place with a couple of bolts, and have someone put it in fwd/rev while you watch the front of the leg halfway up to see what is moving and look for where it is joined.
Sometimes the drive shaft spline wears into the end of the crankshaft which is a pain but if yours is moving 3" then its not that.
Give a man a mask, and he'll show you his true face...
The older you get the more you realize that no one has a f++king clue what they're doing.
Everyone's just winging it.
Didzy
Posts: 33
Date Joined: 19/05/13
Cheers fellas was tryna find
Cheers fellas was tryna find a YouTube vid!!
Thats a splitting image of my motor!!
Same Vengeance prop and all!!
Hopefully I can get a water pump in Bunbury 2mora so she's ready for Monday!!
4 days on 4 days off equates to 4 days work and 4 days fishing
scano
Posts: 1247
Date Joined: 31/05/07
Leave it in gear
And then lowering the impeller housing over the new impeller then you just need to rotate the prop the same direction as what the gear is selected (so if you have selected reverse then spin the prop backwards when lowering the impeller housing)
Didzy
Posts: 33
Date Joined: 19/05/13
That gear linkage isn't
That gear linkage isn't showing like in the video supllied.
ive changed from forward thru to reverse but cant c lock not and holding nut!!
HEEEELLLLPPPPP!!!!
its doing my head in!!
found a youtube link to my motor showing it off but not how to do it!!
could some1 have a look and advise!!
http://www.google.com.au/url?sa=t&rct=j&q=&esrc=s&source=web&cd=1&cad=rja&uact=8&ved=0CCgQtwIwAA&url=http%3A%2F%2Fwww.youtube.com%2Fwatch%3Fv%3D46RryAt1smY&ei=e6U3U5zvDM7GkAWv5YGIDA&usg=AFQjCNHimMRxrGC7NxySxct47ZXAg-tEeA
Cheers
4 days on 4 days off equates to 4 days work and 4 days fishing
Rob H
Posts: 5807
Date Joined: 18/01/12
better still, why dont you
better still, why dont you put up a picture of the setup and outboard itself to make it easier for us to help you!
Especially the front of the mid leg where you would normally be able to see the gear linkage.
Normally that linkage will do one of two things while you flick it in and out of gear-
1/ rotate (normally just slips apart as you remove leg)
2/ goes up and down and is secured.
Give a man a mask, and he'll show you his true face...
The older you get the more you realize that no one has a f++king clue what they're doing.
Everyone's just winging it.
Didzy
Posts: 33
Date Joined: 19/05/13
Edited post with photos!!
Edited post with photos!!
4 days on 4 days off equates to 4 days work and 4 days fishing
Marineboy
Posts: 845
Date Joined: 14/03/14
Water pump
Hey didzy if you really fall in a hole jump on eBay and purchase a seloc service manual for your motor they are great value at around $80.
Wont get you fishing this week but might help you in the future.
My spots are so secret even the fish don't know about them !
Rob H
Posts: 5807
Date Joined: 18/01/12
Id skip the Seloc ones as
Id skip the Seloc ones as they seem to cover a vast range of engines?
There are a couple of sites where you can get the factory ones for $8.95US or so and immediate download-I have them for my F115 Yam and DF115 Suz
Didz I cant see on your pics, too dark and just looks like a silhouette to me unfortunately
Give a man a mask, and he'll show you his true face...
The older you get the more you realize that no one has a f++king clue what they're doing.
Everyone's just winging it.
Didzy
Posts: 33
Date Joined: 19/05/13
Cheers mate yeah got a cd
Cheers mate yeah got a cd version off eBay but wat it says doesn't match my motor hahaha yeah I'll have to do that
4 days on 4 days off equates to 4 days work and 4 days fishing
Didzy
Posts: 33
Date Joined: 19/05/13
Figured it out!!Under
Figured it out!!
Under cowelling at back of motor above the gear linkage there's a plastic clip
lift that slide it to the starboard side and she slides straight out!!
Something so simple!!!
Cheers for ya help fellas!!
4 days on 4 days off equates to 4 days work and 4 days fishing
Rob H
Posts: 5807
Date Joined: 18/01/12
There ya go, sorted!
There ya go, sorted! Next-find the pump parts
