sounder shots
Submitted by lyle rogers on Mon, 2015-01-05 15:45

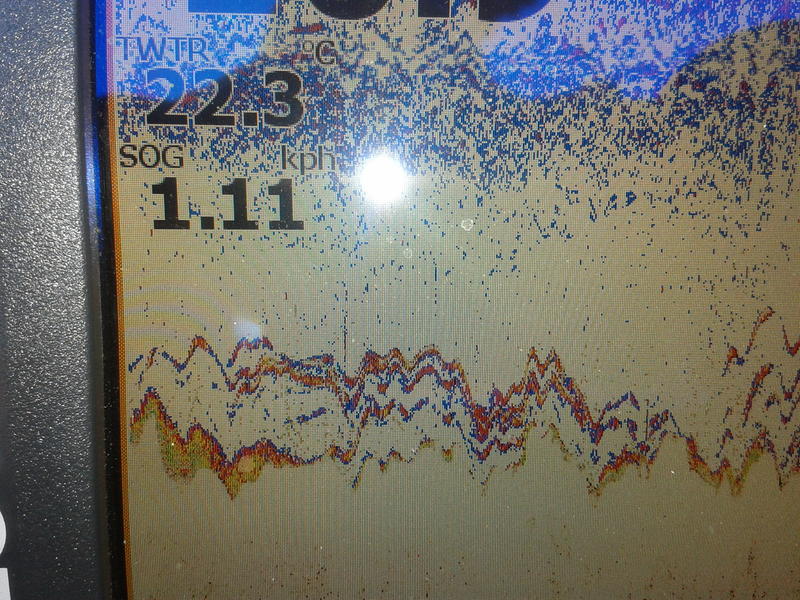

went for a quick fish today and was messing around with my sounder settings. Its a newish unit so just trying to learn how to read what things are. i have put it back to factory settings now as i got carried away and things ended up looking pretty bad. its a lowance elite 5 if that helps. i took these two shots and was wondering if anybody can tell me what it actually means please. we were only getting the usual wrasse at the time of these shots.
Image Upload:
Rob H
Posts: 5748
Date Joined: 18/01/12
looks like it was quite
looks like it was quite choppy or swell for a start?
Give a man a mask, and he'll show you his true face...
The older you get the more you realize that no one has a f++king clue what they're doing.
Everyone's just winging it.
scottland
Posts: 3031
Date Joined: 10/05/10
Ok
hlw can u tell that that the bit i dont get
i support two teams eagles and whoever is playing the dockers
Fraser 5.25
Posts: 122
Date Joined: 25/07/11
The second picture looks
The second picture looks like the gain is set too high, that's why you are getting all the mid water clutter. There isn't a good return from the sea floor and that's why the bottom looks faint with all those ghost echos which could be that the transducer is not installed correctly, just check how it sits. You can go on to the Lowrance web site and download an Elite 5 emulator and that way you can muck around with settings on your computer screen with the actual sounder. I used to own an Elite 5 so could come out and show you how to use it if you lived in the Rockingham area if you wanted but it's all about trying things out and seeing the end results.
Ken
randall df223
Posts: 6454
Date Joined: 08/08/11
Hi Lyle. for future
Hi Lyle. for future reference Adam has created forums for each type of sounder. so members can review like against like in one location. :)
Fish! HARD!
randall df223
Posts: 6454
Date Joined: 08/08/11
http://www.fishwrecked.com/f
http://www.fishwrecked.com/forums/fishing-essentials/soundergps-information-photos-reviews
Fish! HARD!
Brock O
Posts: 3171
Date Joined: 11/01/08
Since when
Must have been off that day.
randall df223
Posts: 6454
Date Joined: 08/08/11
Since a few months ago :)
Since a few months ago :)
Fish! HARD!
sandbar
Posts: 704
Date Joined: 25/10/09
Weed Bottom
And get yourself a much needed late xmas present,
How To Read Your Echo Sounder by John Adams.
Tim
Posts: 2497
Date Joined: 26/09/06
Moved
Has now been moved to the Lowrance section
z00m
Posts: 1086
Date Joined: 10/05/14
The second shot had the
The second shot had the downscan overlay turned on so we can see the difference between what the sounder sees as the bottom and the green/yellow which would be a weedy bottom. The type of weed that looks like green hair. If you want to overlay the downscan you're better off changing the colour so it looks more like something. The fish look like whiting due to the streaks. The clutter on the surface looks like turbulence so you will need to adjust your transducer location or height. Try reducing the surface clutter setting as well.
The top shot looks like hard bottom with the larger echos likely to be Sambos chasing your wrasse. If you catch a wrasse put it out as a livie and you'll soon find out what they are!
ProFish
Posts: 66
Date Joined: 21/03/14
How To Read Your Echo Sounder by John Adams.
Hi All ,
Can this book be bought from shops or just of ebay . I would be interested in getting a copy .
Cheers Ray
randall df223
Posts: 6454
Date Joined: 08/08/11
I think Oceanside might
I think Oceanside might stock it. pm the boys.
Fish! HARD!
ProFish
Posts: 66
Date Joined: 21/03/14
Thank You
Thanks for that , will give them a call tomorrow .
lyle rogers
Posts: 52
Date Joined: 14/09/13
Thanks for the replys guys ,
Thanks for the replys guys , appreciate your input
Perfish
Posts: 103
Date Joined: 15/11/11
Fremantle Boat School
Has a link to buy John's book - www.fremantleboatschool.com.au/
Man with line in water catches fish!
You only get what you always got if you only do what you've always done!
