Transducer placement

 Howdy all

l have just purchased a furuno 582l colour sounder with p66 Airmar Transducer.  I want to get the transducer put on right the first time.  I'm not too sure on where to place it on my western craft hull.  So would someone be able to come out and help a brother put it on correctly as I have never done this before.  I would rather get it done right the first time as I have read that this is most important to place it correctly.  I live in Warnro and would be most appreciative if some one could help me out in doing this cheers.

                   Darryl

____________________________________________________________________________



"If we all fish for the future now there will be fish in the future"

Image Upload:

Posts: 4561

Date Joined: 01/02/10

How does the current

Mon, 2016-02-29 10:53

How does the current transducer go?

____________________________________________________________________________

Does anyone know where the love of god goes, when the waves turn the minutes to hours?

dakka's picture

Posts: 275

Date Joined: 05/03/06

 Not to good that one cuts

Mon, 2016-02-29 11:18

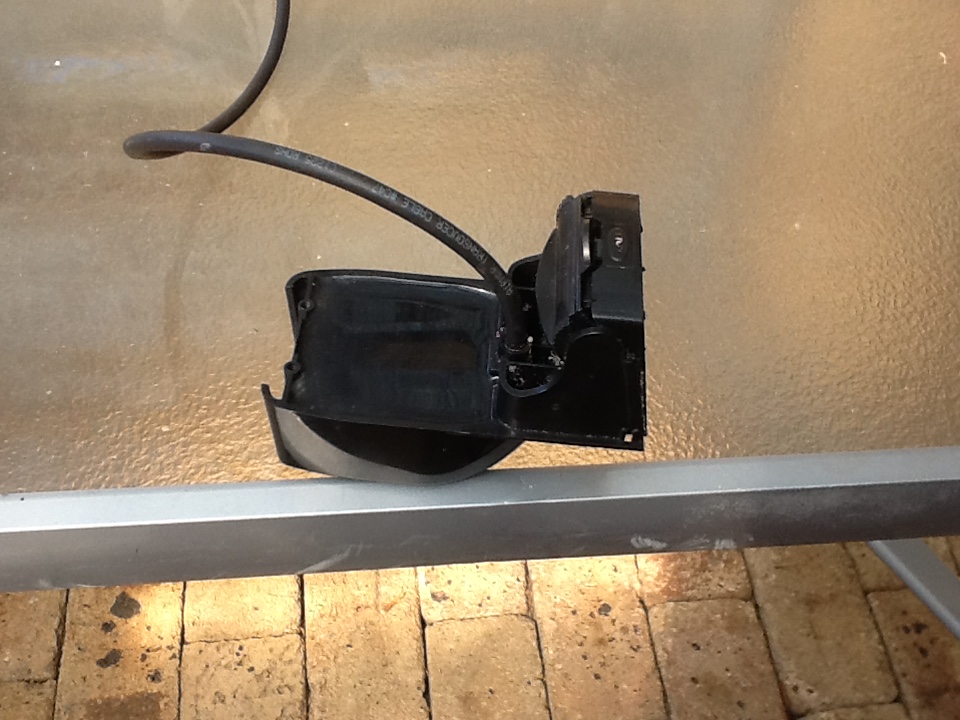

 Not to good that one cuts out on the lowrance elite 5 at speed I'm going to remove that tranny and just use the elite 5 for navigation only the template for new tranny is for starboard side don't know why that is so

____________________________________________________________________________



"If we all fish for the future now there will be fish in the future"

Posts: 6265

Date Joined: 26/04/14

 that lowrance tranny should

Mon, 2016-02-29 13:33

 that lowrance tranny should be level not following the shape of hull, that could be why it cuts out at speed

Rob b's picture

Posts: 211

Date Joined: 04/02/13

 There are some good

Mon, 2016-02-29 11:41

 There are some good instructural videos on YouTube mate.

Posts: 251

Date Joined: 28/07/11

 I had a lowrance tranny next

Mon, 2016-02-29 11:54

 I had a lowrance tranny next to a P66 on my old boat and there was next to no interference so I wouldn't be afraid of putting two next to each other again. If you're going to keep that lowrance one I'd suggest straightening it so it runs vertical rather than off to the side. I've only fitted 2 P66's in my time but found on both occasions I got the best results going as low as can go.

dakka's picture

Posts: 275

Date Joined: 05/03/06

Transducer placement

Mon, 2016-02-29 17:48

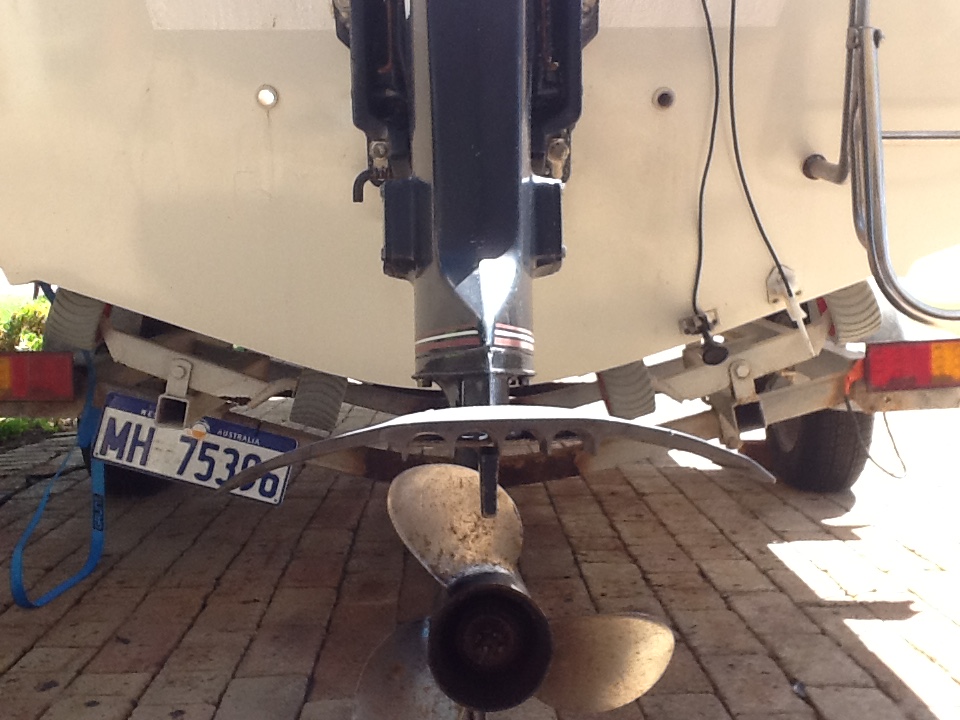

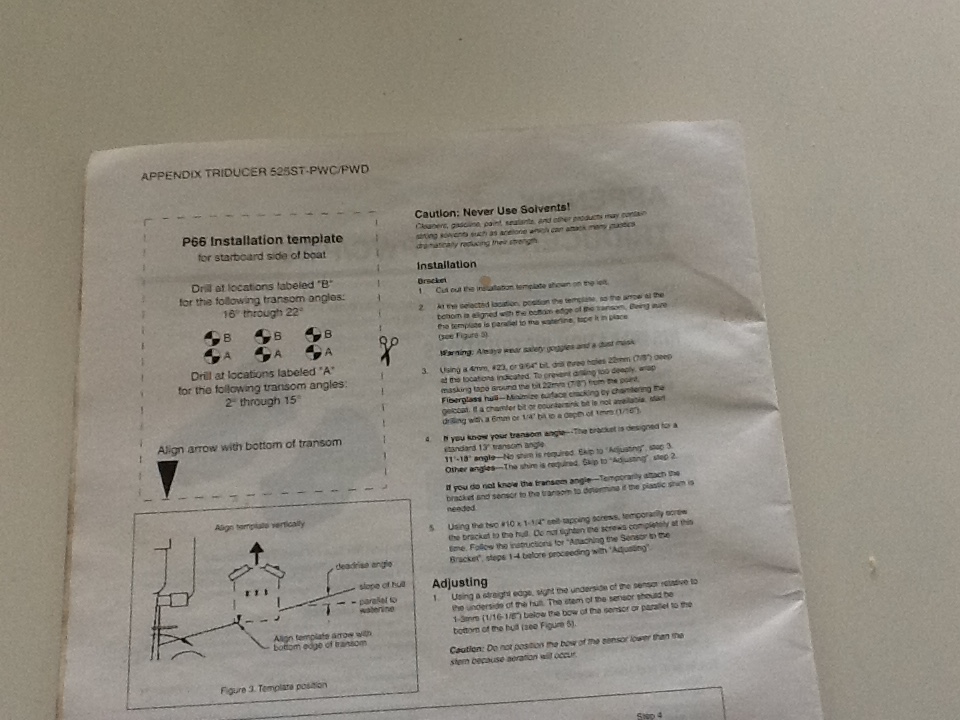

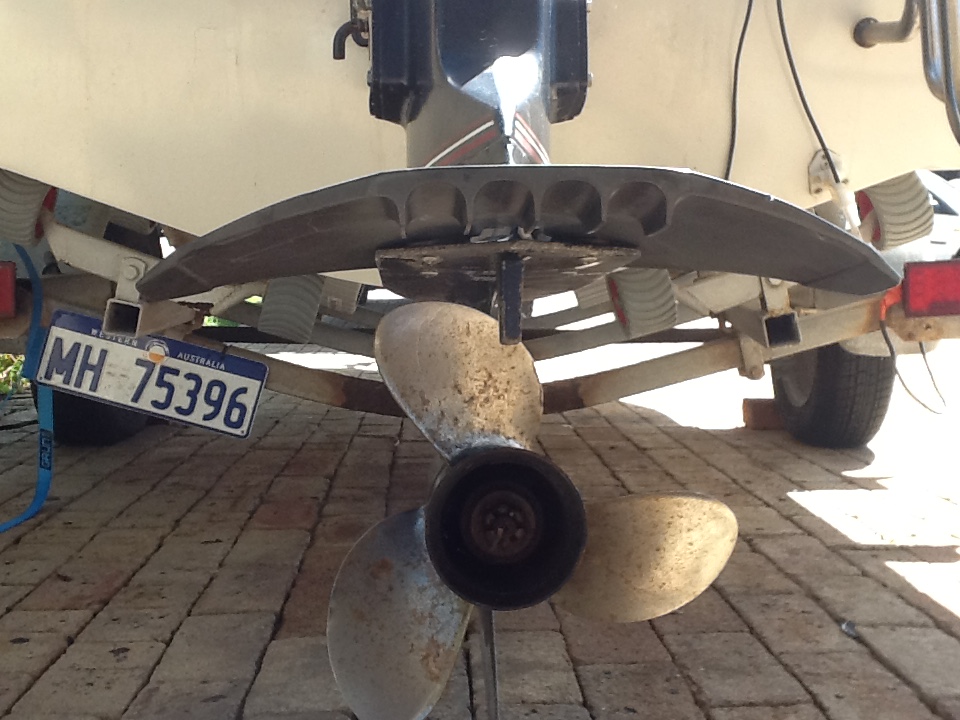

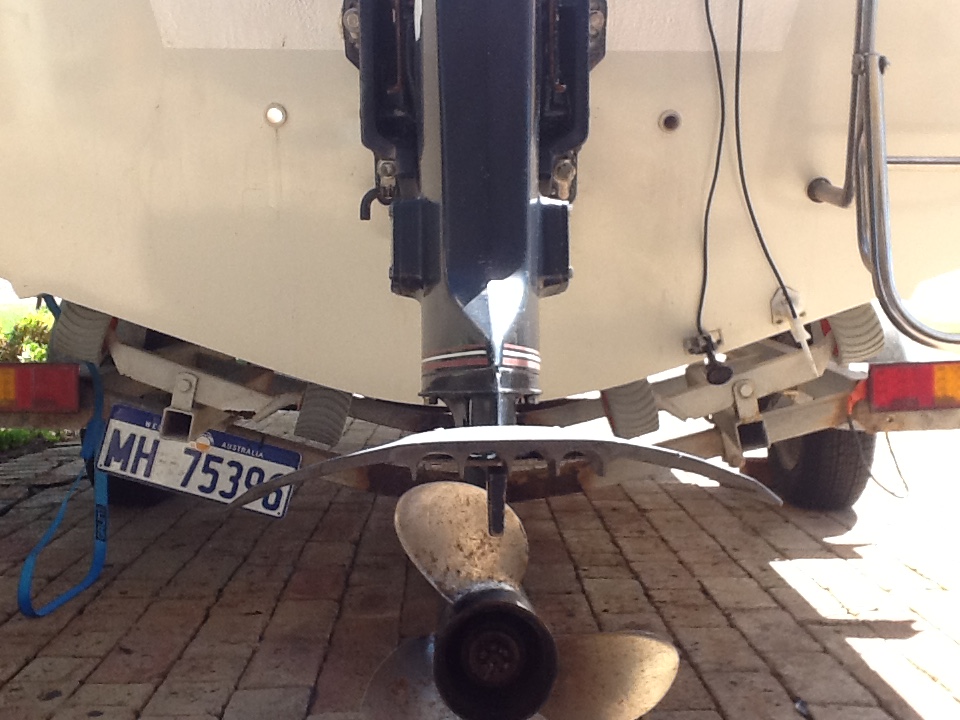

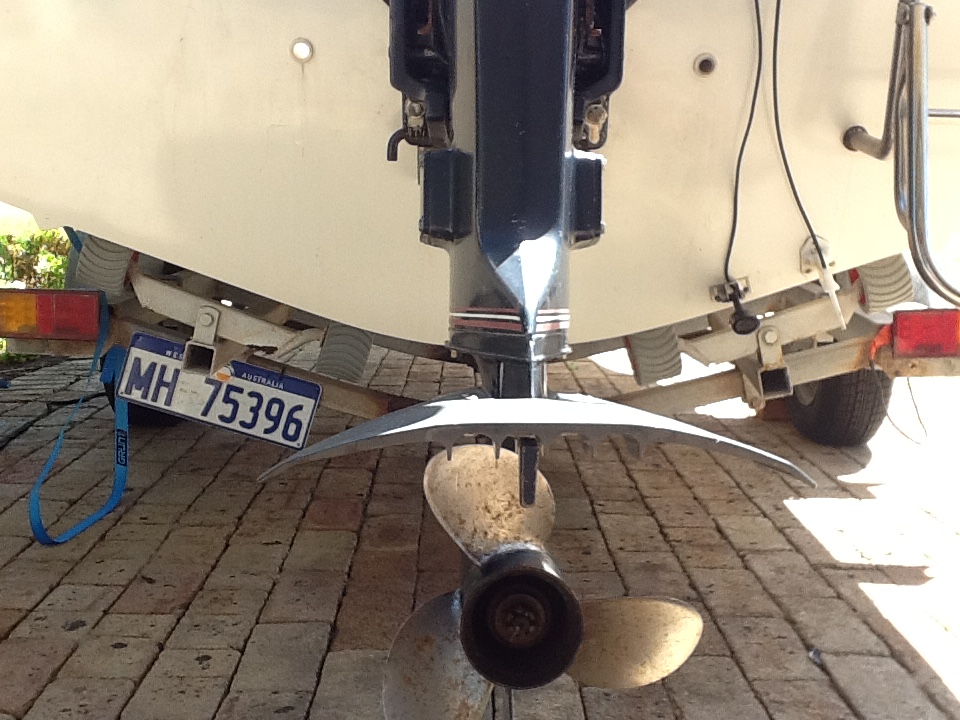

I have added another photo to post This is the template that came with it unsure of angle to use on my hull A or B drill holes

____________________________________________________________________________



"If we all fish for the future now there will be fish in the future"

Tim's picture

Posts: 2497

Date Joined: 26/09/06

Transducer

Mon, 2016-02-29 18:54

Hey Darryl
Im happy to pop around and have a look with you. Your only around the corner anyway.
My last one read at 30knots with no problems so hopefully we can get it right for you.
Might even be able to sort your bracket problem too

Posts: 274

Date Joined: 08/10/13

 Id love to see the pic on

Tue, 2016-03-01 19:11

 Id love to see the pic on the old sounder. Thats funny!!!
