Barcrusher TM260 Transducer mount

Hey guys,

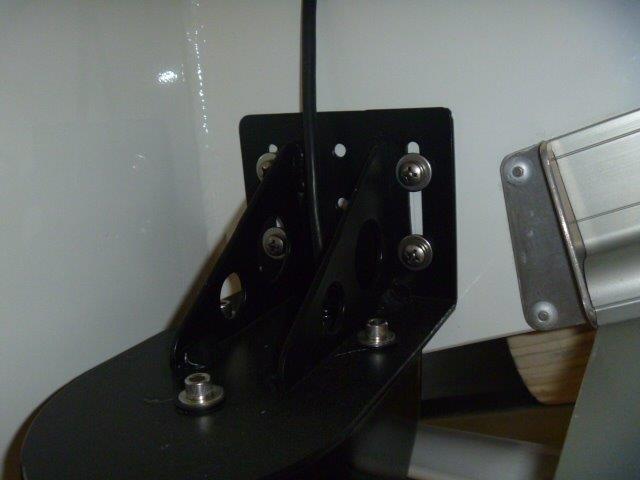

I have a TM 260 and cant get a good reading with 3 shims, has anyone tried these brackets from Barcrusher before?

Image Upload:

Posts: 648

Date Joined: 09/10/06

 I fitted the same transducer

Wed, 2017-11-08 15:38

 I fitted the same transducer to my mates barcrusher. I used 4 shims from memory and got a clear pic doing 38knots on a furuno 588.



Posts: 28

Date Joined: 08/09/13

 Ye 4 is the go but they are

Wed, 2017-11-08 18:25

 Ye 4 is the go but they are hard to stabilise in one spot when doing the bolts up . I took  the stainless bracket to my local fabriacator and changed the angle so now bolts straight on transom and reads good and u can still adjust with one wedge if u need to but mines really good without

Also don't put it to low hope this helps
