Connecting Suzuki NMEA Interface
Submitted by Jackfrost80 on Mon, 2019-12-02 20:04
Hopefully someone's been through this issue.

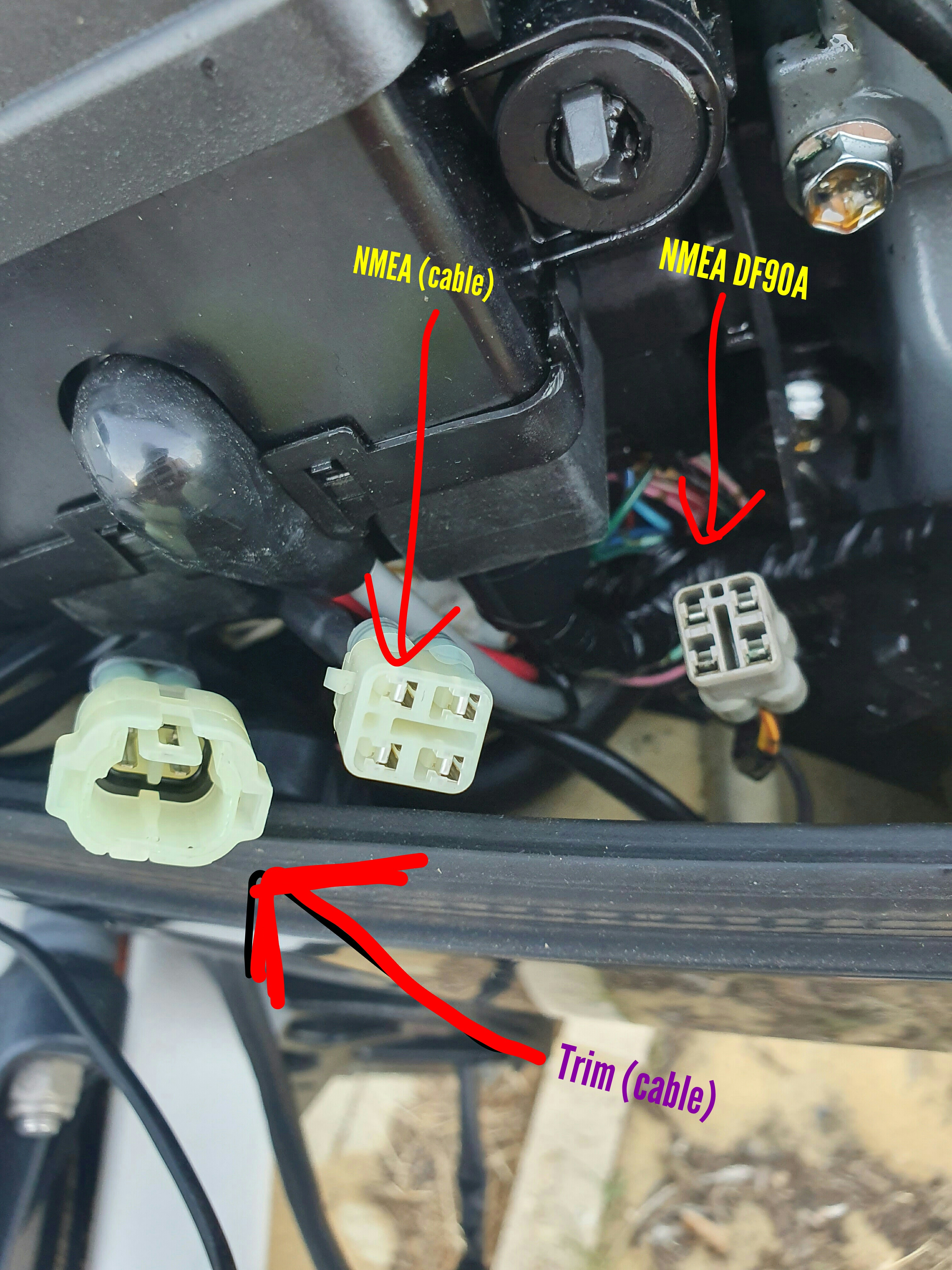

I've bought the Suzuki Interface Cable and have a NMEA backbone ready to plug it into but... the interface cable plug is the same as my DF90A plug i.e. both female.
Does this mean I need to fork out another $100 for the adapter cable? I plan on taping up the trim cable plug as the analogue gauge is fine.
Cheers JF
____________________________________________________________________________
Officially off the Pies bandwagon
JoRn
Posts: 368
Date Joined: 20/11/07
hey mate, i followed
hey mate, i followed moonshine the hull truth forum to a tee and it didnt quite work.
got my mechanic to do it and he did it all behind the console
wolfo
Posts: 3
Date Joined: 12/12/11
Yes mate, been through the
Yes mate, been through the exact same issue.
Marine mechanic told me it needs re-wiring to the tune of around $400.
Little bit of research, turned out it needs another adaptor:
https://www.ebay.com.au/itm/SUZUKI-SMIS-GAUGE-ADAPTER-990C0-88136/331880808331
Bought from overseas arrived in a couple of days and worked a treat. The "The hull truth" post actually mentions this :)
Jackfrost80
Posts: 8156
Date Joined: 07/05/12
Cheers mate. I did some more
Cheers mate. I did some more reading today and already have this on the way and managed to score it for $55 aud.
Officially off the Pies bandwagon
wolfo
Posts: 3
Date Joined: 12/12/11
That great, that adaptor
That great, that adaptor should sort it all out.
I don't think it really makes sense, I assume Suzuki would have some other Engines that connect without the adaptor and for them it made more sense for us to go through this pain ^^
Jackfrost80
Posts: 8156
Date Joined: 07/05/12
All good and works a dream...
All good and works a dream... once you turn the key for the engine after trying to configure it for 20 mins first![](http://fishwrecked.com/sites/all/libraries/fckeditor/editor/images/smiley/msn/embaressed_smile.gif)
