Next project coming along nicely - new bait tank / table
Submitted by randall df223 on Sat, 2014-11-08 16:03

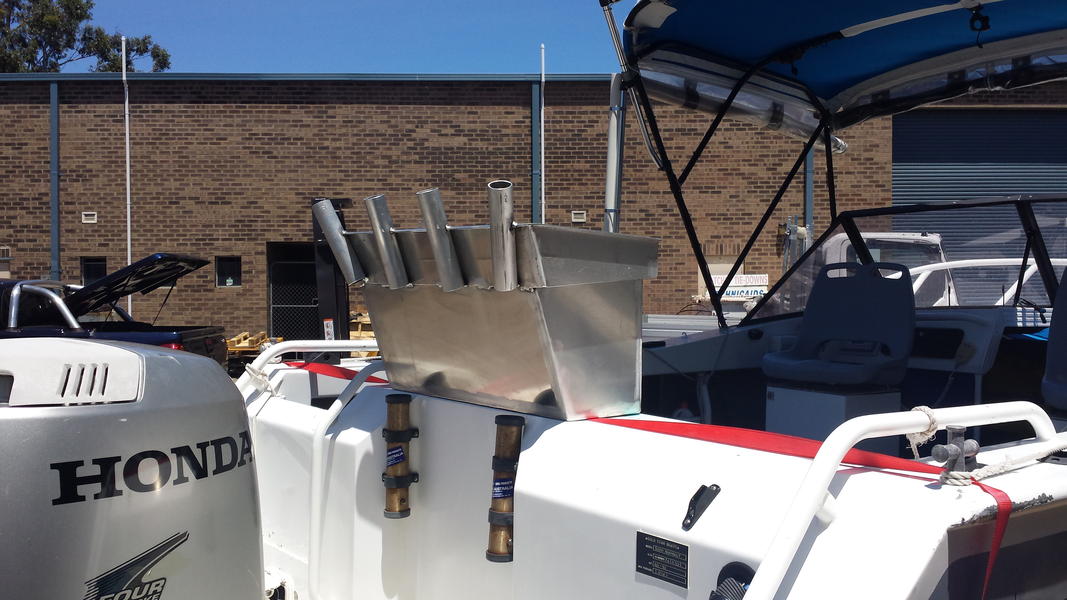

I wanted to improve my live bait set up, which until now has been a 60 l solo bin on the back deck with an externally mounted bilge pump. Came across a combo bait tank / table on line and found someone locally to make one up (that person can identify themselves if they wish or remain anonymous
). And it's progressing nicely!
In the meantime I am installing a stainless steel skin fitting, stopcock and bait tank pump under the tiller flat. This will also provide a pick up for the deck wash.
Will post more pics as it progresses.
____________________________________________________________________________
Fish! HARD!
Image Upload:
Marineboy
Posts: 842
Date Joined: 14/03/14
Bait board
hey randall
does they guy who fabricated that only do Ali or do they also work with stainless ?
im chasing a stainless fabricator but they all seem either too busy or can't be bothered.
My spots are so secret even the fish don't know about them !
randall df223
Posts: 6454
Date Joined: 08/08/11
Lesson number one..... be
Lesson number one..... be careful not to cross thread the nut when installing the skin fitting. Arhhhh! Back to Whitworths tomorrow for another one.... bugger
Fish! HARD!
sea-kem
Posts: 14959
Date Joined: 30/11/09
Was going to mention to you
Was going to mention to you Randall to use some anti- seize compound on the threads not being taped.
Love the West!
randall df223
Posts: 6454
Date Joined: 08/08/11
Round two. Have used grease
Round two. Have used grease and finger tightened the skin fitting so I can position it to make sure the stop cock is operational when I tighten it all up. Have tick marked the position of the skin fitting against the hull so that when I sika flex it tomorrow, my "second" pair of hands can hold it in the right position while I hand tighten the nut on the inside...
Fish! HARD!
kirky79
Posts: 1351
Date Joined: 13/01/12
Looks the goods Randall.
Looks the goods Randall.
randall df223
Posts: 6454
Date Joined: 08/08/11
Will be great for catching a
Will be great for catching a few whiting, herring or squid on the way out for live / fresh bait, or at monkey mia we catch some butteries which the black snapper love and I have caught cobia and cod on livies there before. It will also be great to throw the crabs in to keep nice and fresh on a long day crabbing. :)
Bought some of the plumbing requirements today from whitworths and located an ideal Teflon chopping board at a store "cut it out" in the city. I will need two of those.
Fish! HARD!
randall df223
Posts: 6454
Date Joined: 08/08/11
Skin fitting in place, sika
Skin fitting in place, sika flexed and finger tightened
http://imagizer.imageshack.com/img537/5656/PhfO6G.jpg
External view. I tick marked it so I know that when the stopcock is installed, the lever won't be obstructed by bulkheads.
http://imagizer.imageshack.com/img673/7325/zrtVvg.jpg
Fish! HARD!
big john
Posts: 8749
Date Joined: 20/07/06
Ok
I'll ask, where's the lid or haven't you cut the opening yet?
WA based manufacturer and supplier of premium leadhead jigs, fligs, bucktail jigs, 'bulletproof' soft plastic jig heads and XOS bullet jig heads.
Jigs available online in my web store!
randall df223
Posts: 6454
Date Joined: 08/08/11
Haven't cut the opening yet.
Haven't cut the opening yet. The lid will be Teflon chopping board hinged at the rear.
Fish! HARD!
tim-o
Posts: 4657
Date Joined: 24/05/11
Hmmmmm
Stainless on aly, the 2 dont like each other. Dont like the chances of water being drawn when on the plane with that fitting. I would have welded an aly tube in, have the end cut at say a 30 degree angle facing forward so the water is forced in when underway and have it spill in at the top of the tank, will aerate and not drain back. Have the tank spill out the back to maintain a level and put a bung or 2 to drain it. Basically Im just describing the design of a Barcrusher's live bait tank setup, go into All Boats and suss it out. And another thing, is that cracks I see in your hull?
I am, as I've said, merely competent. But in an age of incompetence, that makes me extraordinary.
randall df223
Posts: 6454
Date Joined: 08/08/11
I have put plenty of sika
I have put plenty of sika flex in between the fitting and the hull. There will be a 1890 litre per hour pump above the stop cock pulling the water up. If that skin fitting doesn't work I will go for the forward facing scoop type. And I'm not sure which cracks you're seeing???
Fish! HARD!
marble
Posts: 775
Date Joined: 03/09/09
Can nearly guarantee that
Can nearly guarantee that skin fitting wont work. We had one the same on our tank and above 6 or 7 knots there is too much turbulence for the pump to pickup water. I`d be changing it now before you get too much done and have to pull too much apart.
PMY 25 Centre Console DF300 Suzuki
randall df223
Posts: 6454
Date Joined: 08/08/11
Cheers. Thanks for that. I
Cheers. Thanks for that. I grab a scoop style one tomorrow.
Fish! HARD!
randall df223
Posts: 6454
Date Joined: 08/08/11
There is still quite a bit
There is still quite a bit of work to go into the plumbing.... its no where near finished :)
Fish! HARD!
tim-o
Posts: 4657
Date Joined: 24/05/11
Might be shaddow/opening on the top one
But the two along the welds look like cracks?????
I am, as I've said, merely competent. But in an age of incompetence, that makes me extraordinary.
tim-o
Posts: 4657
Date Joined: 24/05/11
Ahh
Looks like there is no welds there, just the edge of the flatbar.....
I am, as I've said, merely competent. But in an age of incompetence, that makes me extraordinary.
randall df223
Posts: 6454
Date Joined: 08/08/11
Yep the one across the keel
Yep the one across the keel is the draining gap. I look closer at the others in better light but I haven't noticed anything up until this point.
Fish! HARD!
randall df223
Posts: 6454
Date Joined: 08/08/11
Tim, I checked out those
Tim, I checked out those 'cracks'. I think what you're seeing there are aluminum filings from cutting the hole through the hull. Definitely no cracks there.
Fish! HARD!
randall df223
Posts: 6454
Date Joined: 08/08/11
Because I wanted a stop cock
Because I wanted a stop cock incorporated my only options were brass, plastic or stainless. Brass is a bigger no-no than stainless and I wasn't happy with a lack of strength and wear and tear on the plastic option. So it is stainless with lots of sika flex....
Fish! HARD!
tim-o
Posts: 4657
Date Joined: 24/05/11
Need a clear window at the front
And the tank illuminated with a blue light hah #blingcool. Dont forget to put a small aquarium net on board, hate tryin to catch livies by hand lol
I am, as I've said, merely competent. But in an age of incompetence, that makes me extraordinary.
randall df223
Posts: 6454
Date Joined: 08/08/11
Yeah already got a net. I
Yeah already got a net. I have seen the windows and thought the only purpose that would serve is to entertain the kids???
Fish! HARD!
tim-o
Posts: 4657
Date Joined: 24/05/11
Yes
But it is still cool for adults to see a squid latch onto a livie and start chewin on the back of its head haha
I am, as I've said, merely competent. But in an age of incompetence, that makes me extraordinary.
randall df223
Posts: 6454
Date Joined: 08/08/11
Take three - skin fitting...
Bought the scoop style skin fitting and fitted it tonight. Scoop facing forward :). Plenty of sika flex and everything is only hand tightened at the moment. I'll give the sika flex a day or two to set and then tighten the nuts up as tight as I can, giving a good seal on the sika flex.
http://imagizer.imageshack.com/img661/5458/UnYK1f.jpg
http://imagizer.imageshack.com/img538/6452/4QIQNc.jpg
Fish! HARD!
randall df223
Posts: 6454
Date Joined: 08/08/11
Everything tightened and
Everything tightened and stop cock installed. Easily accessible to the hatch and free from obstruction.
http://imagizer.imageshack.com/img674/7470/bQOcIZ.jpg
Fish! HARD!
sea-kem
Posts: 14959
Date Joined: 30/11/09
Nice!
Nice!
Love the West!
Deleted
Posts: 6265
Date Joined: 26/04/14
curious as to why you went
curious as to why you went away from transom mount, iam sure i read a post of yours about transom mount deck wash intakes
randall df223
Posts: 6454
Date Joined: 08/08/11
Yeah. I thought a lot about
Yeah. I thought a lot about it. Never keen to drill a hole into an otherwise sealed tank, but in the end the pump I want to install is designed to fit into a stop cock not be mounted on the outside of the transom. So I have gone the internal solution with a good strong stainless steel skin fitting and stop cock.
Fish! HARD!
randall df223
Posts: 6454
Date Joined: 08/08/11
Getting together my bits and
Getting together my bits and pieces ready for the next visit to the workshop. Bought two solid chopping boards, these will get cut down to size, one for the lid and the other fixed. The basket is from my existing bait table. One skin fitting will be for a drain for the table, the other to facilitate water to the tank. A bung to empty the tank at the end of the day, and some elbows that will attach high on the rear for tank overflow drainage. Last of all a hand pump that will feed from the external pickup on the transom. The latter for the benefit of my wife and scalie fishing mate's who still insist on using bait! Hinges and a few more fastenings to come. And the black screw in attachment will be the deck wash attachment to the live bait tank pump.
http://imagizer.imageshack.com/img745/211/wvZwJl.jpg
Fish! HARD!
randall df223
Posts: 6454
Date Joined: 08/08/11
took the boat today for the
took the boat today for the first time since drilling a hole through the hull and installing the skin fitting and stop cock.... no leaks. gotta be happy with that!
Fish! HARD!
sea-kem
Posts: 14959
Date Joined: 30/11/09
Have you fitted the pump yet
Have you fitted the pump yet randall?
Love the West!
randall df223
Posts: 6454
Date Joined: 08/08/11
Not yet Andy.
Not yet Andy.
Fish! HARD!
randall df223
Posts: 6454
Date Joined: 08/08/11
live bait pump installed.
live bait pump installed. electrics to be wired up in the next day or two.
http://imagizer.imageshack.com/img912/5360/LiTvbR.jpg
the thinner hose is the deck wash pick up.
Fish! HARD!
big john
Posts: 8749
Date Joined: 20/07/06
.
Looks good Randall.
WA based manufacturer and supplier of premium leadhead jigs, fligs, bucktail jigs, 'bulletproof' soft plastic jig heads and XOS bullet jig heads.
Jigs available online in my web store!
randall df223
Posts: 6454
Date Joined: 08/08/11
Fish! HARD!
randall df223
Posts: 6454
Date Joined: 08/08/11
pump wired and working :).
pump wired and working :). For now the garbage bin is back on the tiller flat and will remain my live back tank until I can finish off the new table and tank.
Fish! HARD!
randall df223
Posts: 6454
Date Joined: 08/08/11
Are my calculations
Are my calculations right?
the pump capacity is 500 gallons / hour = 1892 litres / hour = 31.5 litres / minute.
Therefore a 40 litre live bait tank will refresh it's water content every 75 seconds????
Fish! HARD!
Hutch
Posts: 2221
Date Joined: 21/04/13
randall df223
Posts: 6454
Date Joined: 08/08/11
First day out today after
First day out today after fitting the pump.
most importantly, no leaks! always a good start to the day when the boat doesn't sink at the ramp....
Secondly, live bait tank pump and deck wash pick up water while stationary.
last of all, live bait tank pump picks up and pumps water at speed, and deck wash operates at speed without impacting on the water flow into the bait tank.
(now to finish and fit the tank / table)....
