Outboard birthday

 Decided that as my Suzi’s are getting onto the dreaded 1000 hrs I’d better have a closer look at them.

Im not 100% but I thought they may have dropped 100-200rpm at full bore.

While there are a few simple reasons that this could be the case, (stretched cables, fuel filters etc) I thought it warranted a closer look at them in general.

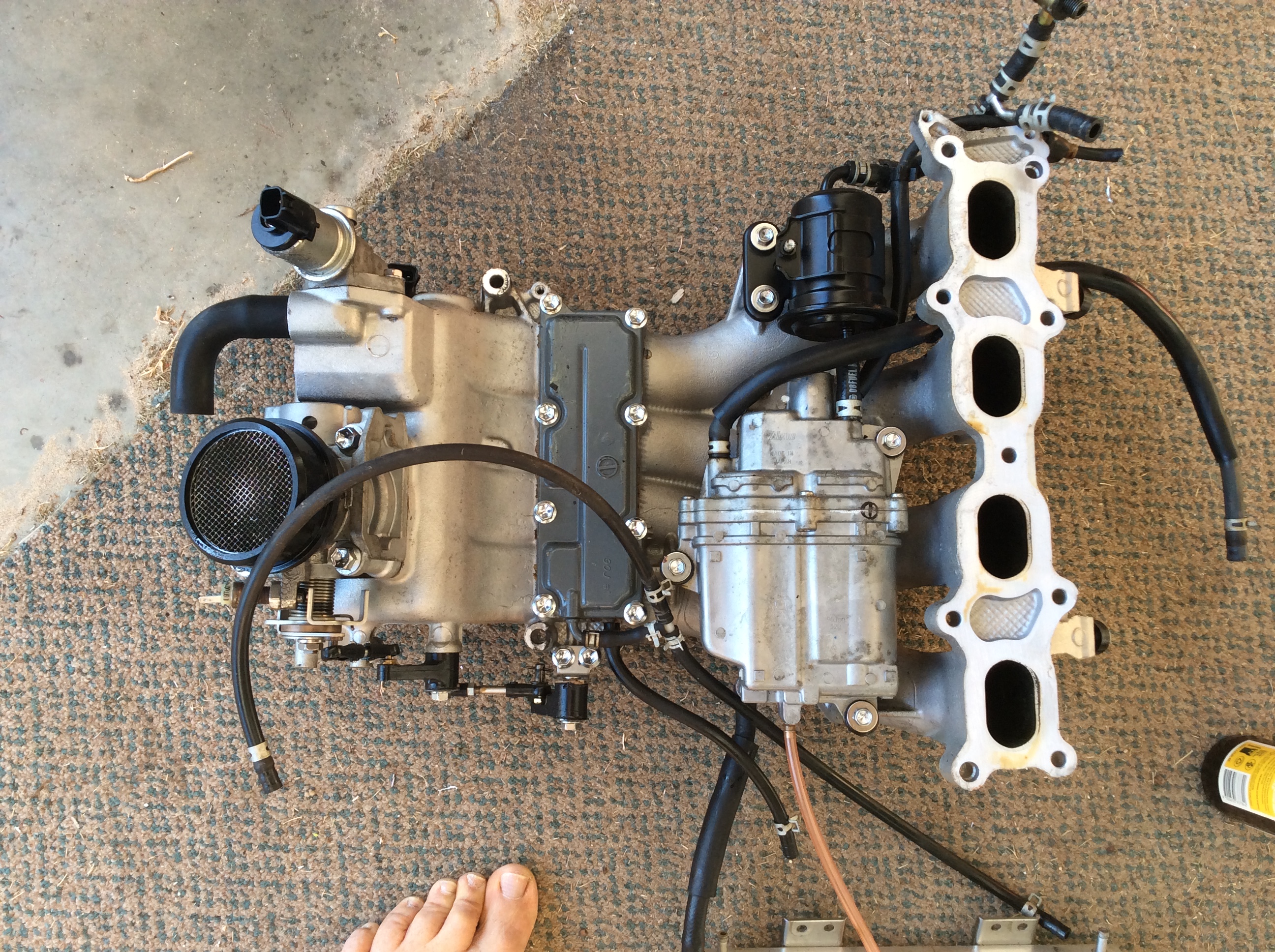

So stripped off all the intake gear, injectors, fuel pumps and Vapor separator

A days fiddling around but internally everything looked spotless, barely a light film of faint oil in the intake with zero build up (no EGR system helps),

Clayton’s clean of the injectors with carby cleaner and a 9 volt battery, no blocked nozzles

Stripped vapor seperator and pump/strainer (no varnish or clumps to be seen as others have reported)

Changed LP and HP filters

Decoked with plugs out from a spray can (not sure how effective this is but some shit came out)

Adjusted throttle cable.

All other service items done at end of last trip.

Chucked it in the water and gained about 150rpm on that outboard. (5400-5600)

Never been 100% happy with the 21” props as we run very heavily laiden, so borrowed a pair of 19” off my good friend Mr Stone  and with boat very light they got to near 6000 which I am happier with as they should be near max rpm of the range at lighter load.

So a quick WTB ad turns up someone with a pair of used 19” from Ryan C which probably need a tidy up so now just to wait for the weather to f**k off next week and off to the islands for

____________________________________________________________________________

 Give a man a mask, and he'll show you his true face...





The older you get the more you realize that no one has a f++king clue what they're doing.

Everyone's just winging it.



Image Upload:

gillyL's picture

Posts: 5823

Date Joined: 26/04/14

 give me left nut to have the

Fri, 2018-06-29 20:02

 give me left nut to have the confidence to strip a motor back, can do basics but your next level



 whats the throttle cable adjustment?

____________________________________________________________________________

lucky i love to fish because i cant catch any.



BM294

hilly9's picture

Posts: 216

Date Joined: 13/10/12

 Ha I was thinking exactly

Fri, 2018-06-29 20:26

 Ha I was thinking exactly the same thing reading this

Ryan C's picture

Posts: 1545

Date Joined: 08/07/10

Props

Fri, 2018-06-29 20:46

 great talking to you today Rob , have to get up for a trip one day with you to the islands - this forum is bloody helpful at times ! Good luck mate.

Rob H's picture

Posts: 4869

Date Joined: 18/01/12

 Likewise Ryan, but the forum

Fri, 2018-06-29 21:19

 Likewise Ryan, but the forum is bloody handy all the time, once you sort the wheat from the chaff!

____________________________________________________________________________

 Give a man a mask, and he'll show you his true face...





The older you get the more you realize that no one has a f++king clue what they're doing.

Everyone's just winging it.



Lastchance's picture

Posts: 1117

Date Joined: 02/02/09

Nothing better than working

Fri, 2018-06-29 21:19

Nothing better than working on your own gear. Great way to understand what you have and is usefull knowledge should something fail in the middle of nowhere

Rob H's picture

Posts: 4869

Date Joined: 18/01/12

.

Fri, 2018-06-29 21:21

 This forum itself-on the ipad where I posted, all pics are normal orientation.

But wonky on here...

____________________________________________________________________________

 Give a man a mask, and he'll show you his true face...





The older you get the more you realize that no one has a f++king clue what they're doing.

Everyone's just winging it.



Stevo81's picture

Posts: 1072

Date Joined: 16/04/12

 Nice work Rob. Best thing

Fri, 2018-06-29 22:20

 Nice work Rob. Best thing you can do for an outboard (and boat) is use it all the time I reckon!

____________________________________________________________________________

                                   ••••••••  Electrical Contractor NOR  ••••••••

Coastrunner's picture

Posts: 196

Date Joined: 25/10/14

Saved yourself some coin

Sat, 2018-06-30 09:07

 At a guess probably $1k for a dealer to perform that work, maybe more.

Good to know the Suzi's were still in good shape at 1000hrs, I ran a Yammy 4stroke 60Hp out to 1000hrs and it still ran like a new one, timing belt and valve clearance check was going to be a big day out though, boat was upgraded.

JohnF's picture

Posts: 2713

Date Joined: 07/07/10

 Your a big bushel of wheat

Sat, 2018-06-30 09:23

 Your a big bushel of wheat Rob. Nice one.

____________________________________________________________________________

Boston Whaler 235 Conquest......getting the flogging it was built for.

Rob H's picture

Posts: 4869

Date Joined: 18/01/12

.

Sat, 2018-06-30 09:42

 Haha, I dont even know what that means but Im guessing its a Hillary's thing

Lucky these dont have EGR's or theyd be clagged like shit...

____________________________________________________________________________

 Give a man a mask, and he'll show you his true face...





The older you get the more you realize that no one has a f++king clue what they're doing.

Everyone's just winging it.



gruntre69's picture

Posts: 500

Date Joined: 15/10/16

 Do those Suzies come up for

Sat, 2018-06-30 10:27

 Do those Suzies come up for valve clearance check/adjust at some stage?

____________________________________________________________________________

 Marine trimmer NOR (available for clears, tops, carpet, upholstery, custom equipment covers)

Rob H's picture

Posts: 4869

Date Joined: 18/01/12

 Yeah they do, but use shims

Sat, 2018-06-30 13:55

 Yeah they do, but use shims like the older Hiluxes etc
Generally you hear them rattling if they get loose but dont seem to wear anywhere near the standard tappet set up.

____________________________________________________________________________

 Give a man a mask, and he'll show you his true face...





The older you get the more you realize that no one has a f++king clue what they're doing.

Everyone's just winging it.
