home built boat trailer
Submitted by skipjack on Thu, 2013-10-17 16:22
Hi gents
after 10 full days of building my boat trailer its licenced and ready to go
has anyone else had a go at building there own? I have never done anything like this before

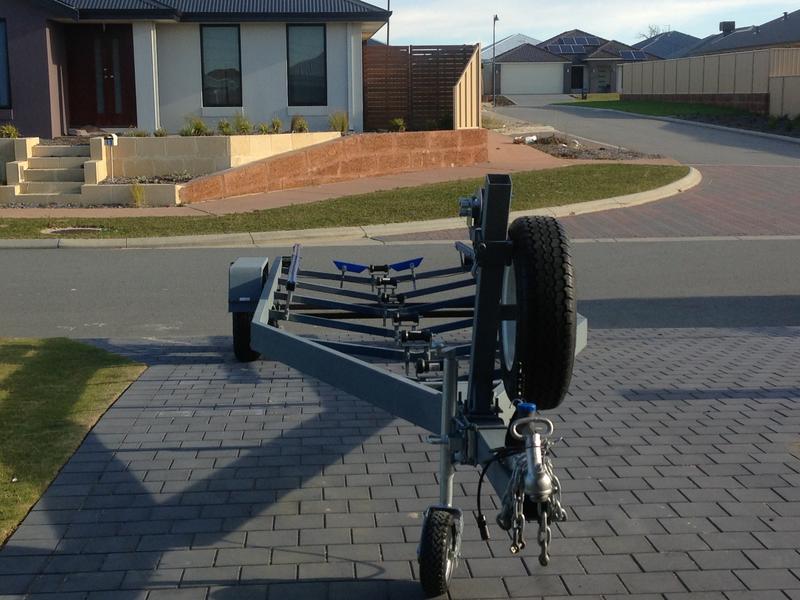

here is a few pics of how it turned out
Image Upload:
Ericl
Posts: 463
Date Joined: 02/05/11
Looks like you did a great
Looks like you did a great job. Where did you get the design ?
Eric
Don't spend all your money on beer, boats, and fishing. Save some to spend foolishly
skipjack
Posts: 49
Date Joined: 10/11/12
designed it myself had a look
designed it myself had a look online at other trailers and went from there
big john
Posts: 8749
Date Joined: 20/07/06
Nice
Nice work, a lot of satisfaction to be had building a trailer.
I'd recommend you get it hot dipped galvanised.
WA based manufacturer and supplier of premium leadhead jigs, fligs, bucktail jigs, 'bulletproof' soft plastic jig heads and XOS bullet jig heads.
Jigs available online in my web store!
Jayden20
Posts: 672
Date Joined: 29/08/11
nice work mate looks
nice work mate looks great...ill be looking to build my own later down the track but ill be using ç chanel instead of box section were I can
sea-kem
Posts: 14960
Date Joined: 30/11/09
Why is that Jayden? Just
Why is that Jayden? Just curious.
Love the West!
Jayden20
Posts: 672
Date Joined: 29/08/11
to make sure its still alive
to make sure its still alive in 20 odd years time....makes its easier to clean it and dont have to worry about salt water getting trapped in side the tubes
sea-kem
Posts: 14960
Date Joined: 30/11/09
I can see your point but
I can see your point but tube is a better section to work with and is structurally stronger with lighter sections. That's why they use ali unibeam and channel on the bigger trailers to keep the weight down.
Love the West!
opsrey
Posts: 1200
Date Joined: 05/10/07
Looks the goods. Well done.
Not sure my welding would ever get past chook scratchings so can only admire others efforts.
Did you get it hot dipped galvanised? Did you get a tough time putting it over the pits because it was home made?
chris raff
Posts: 3257
Date Joined: 09/02/10
Neat job .. would've saved
Neat job .. would've saved some bikkies being handy with the welder , well done . Is the winch post reinforced at all to counteract any forward momentum ?
“Intelligence is like a four-wheel drive. It only allows you to get stuck in more remote places.”
fishin mad
Posts: 70
Date Joined: 03/05/13
Would be interested how you
Would be interested how you went getting it over the pits as thinking of doing the same for my tinnie....
skipjack
Posts: 49
Date Joined: 10/11/12
Thanks guys I'm going to get
Thanks guys I'm going to get it hot dipped once I get the boat on there and every thing fits ok and
didn't have much trouble getting it over the pits passed on the second go just had to fit more lights and
Different chain
meglodon
Posts: 5981
Date Joined: 17/06/10
can you tell me where you took it over the pits
I am having all sorts of bother with my trailer going over the pits at Mandurah, now I have to fit lights on the mud guards. The trailer never had them when it was first manufactured in 2000 and the only reason for it to go over the pits is I let the licence expire now it's put this on put that on get the area of the discs measured on a special form the dam thing is only a dual axial boat trailer for a 6m quinny for goodness sake. The trailer is a 200 model trail craft in good condition but the way I'm getting done over you would think it's for a 50 tonne cruiser,geeez
catchalittle
Posts: 1875
Date Joined: 04/09/08
Excellent job mate
Excellent job mate
Nathan
outdoinit
Posts: 1009
Date Joined: 05/10/12
+1
Excellent job mate.
I've spent half my life fishing.. The other half I have wasted..
skipjack
Posts: 49
Date Joined: 10/11/12
I went to zeds mechanical
I went to zeds mechanical and everything had to be spot on for them to pass it
crasny1
Posts: 7002
Date Joined: 16/10/08
Im not picking
Rather jealous. But it looks flimsy compared with my standard boring Dumbier. What material was used for the beams etc, and how did you find out about strenght ratings etc.
Just asking because it would have been an (expensive) disaster if it was to flimsy?
"I would like to die on Mars. Just not on impact!!" _ Elon Musk
Bodie
Posts: 3758
Date Joined: 05/11/07
depends what boats going on
depends what boats going on it as well. It ali and light weight will have no problems.
crasny1
Posts: 7002
Date Joined: 16/10/08
Cheers Bodie
Yes Im certainly not picking on the beautiful job, but gestimated the boat at 6.5m plus (prob closer to 7m) and with the narrow beams etc was just interested in the material etc, and how this was engineered prior to going over the pits to prevent a total rejection.
"I would like to die on Mars. Just not on impact!!" _ Elon Musk
Bradlze
Posts: 96
Date Joined: 06/02/12
where did you source the skid
where did you source the skid strips from?
Saulty2
Posts: 655
Date Joined: 28/05/10
looks the goods
question ! are you able to adjust the wheels forward or back to get even distribution on that trailer ?
skipjack
Posts: 49
Date Joined: 10/11/12
It's made from 150x50 50x50
It's made from 150x50 50x50 and the draw bar in 100x100 all 3mm so should be a strong trailer and I got the skid strips from bcf
crezz
Posts: 695
Date Joined: 12/03/12
that looks solid! good build
that looks solid! good build
holth
Posts: 812
Date Joined: 09/10/06
its a shame you painted it
its a shame you painted it as it will need sand blasting before they can galv it. which means more $$$
NOHA
Posts: 914
Date Joined: 24/06/07
Just a couple of things
I admire anybody who gets out there and has a go. Looks like you have done a good job but just a couple of small things that would give me more piece of mind.
Where the box tube changes angle at the front toward the draw bar, that looks like you have welded the two pieces together. So the forward weight will be carried not by the strength of the box tube but by the strength of those welds. Where the draw bar connects has gussets to reinforce the welds but not that part. That carries a risk of failure that may see your boat hit the bitumen.
The other easy fix is the winch post. It is really just a 50mm box weld to a flat plate bolted to the frame. It needs to be supported back the the draw bar also. If you brake hard or come to a sudden stop the boat will push that over and climb into the back of your ute. We have all seen pictures of boats come off trailers with a broken winch post still attached to the boat but no longer attached to the trailer. Make another piece that bolts from half way up the winch post and angles back to the draw bar to stop it being able to move and snap the welds.
That said. Lots of "professional" trailers are made the same way as yours. But I never felt comfortable with them either. The trailer is so often a neglected or cheaply made part of the boat package and yet we have to trust it fully to carry our pride and joy. If it fails for mechanical/structural reasons your insurance company may very well walk away.
Twin turbo..V8 diesel..Ohh what a feeling!!
No Orange Hats Allowed
skipjack
Posts: 49
Date Joined: 10/11/12
thanks mate yeh I ran out of
thanks mate yeh I ran out of time before I had to fly out to work but I will be putting a winch support on and some 150x50 on the inside of that join cut out to that angle so it looks the part or even some 5mm plate on both sides
sea-kem
Posts: 14960
Date Joined: 30/11/09
Good job there Skipjack.
Good job there Skipjack. Can't quite see how you've connected everything at the front there but if you can leave all the tube work open ended for galvanising you'll be fine against corrosion in the future. Just make sure you flush well.
Love the West!
