new aliminium boat trailer build

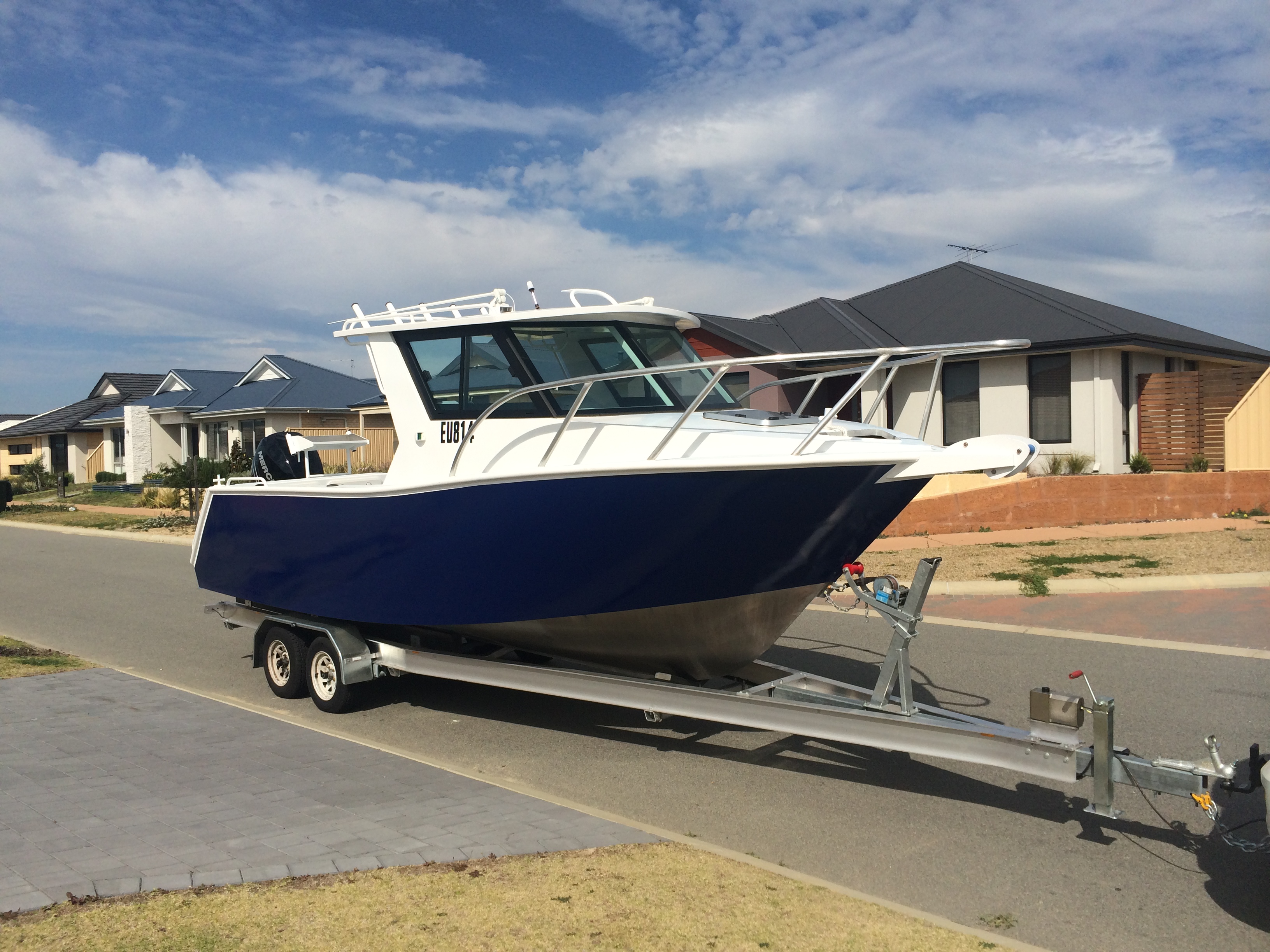

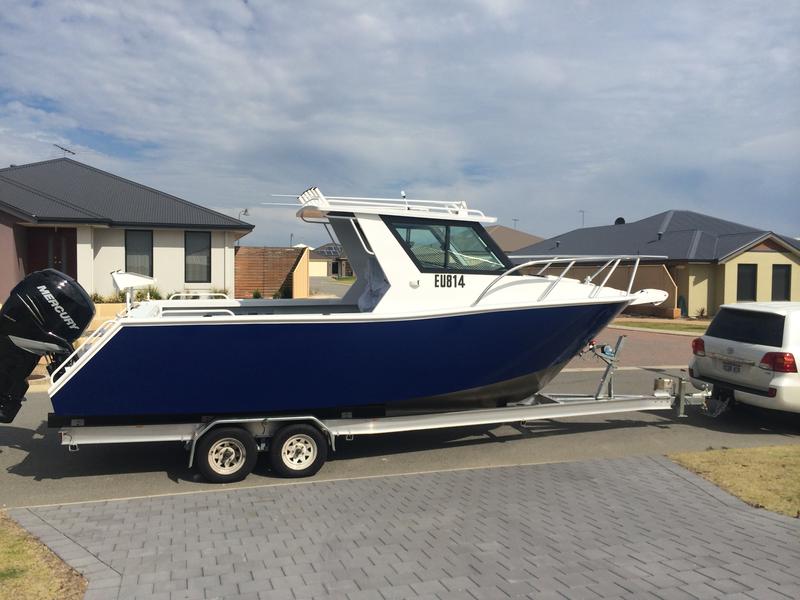

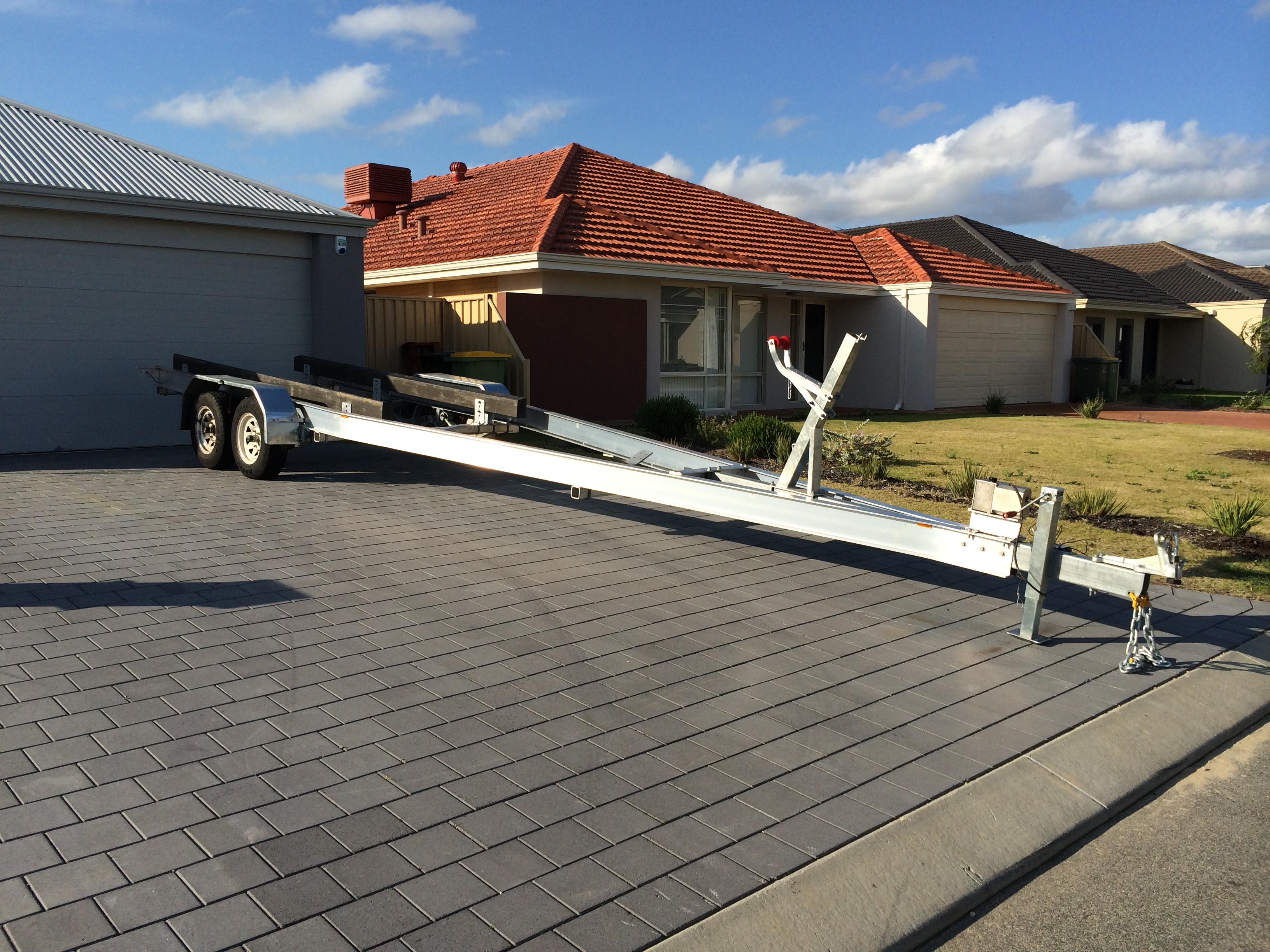

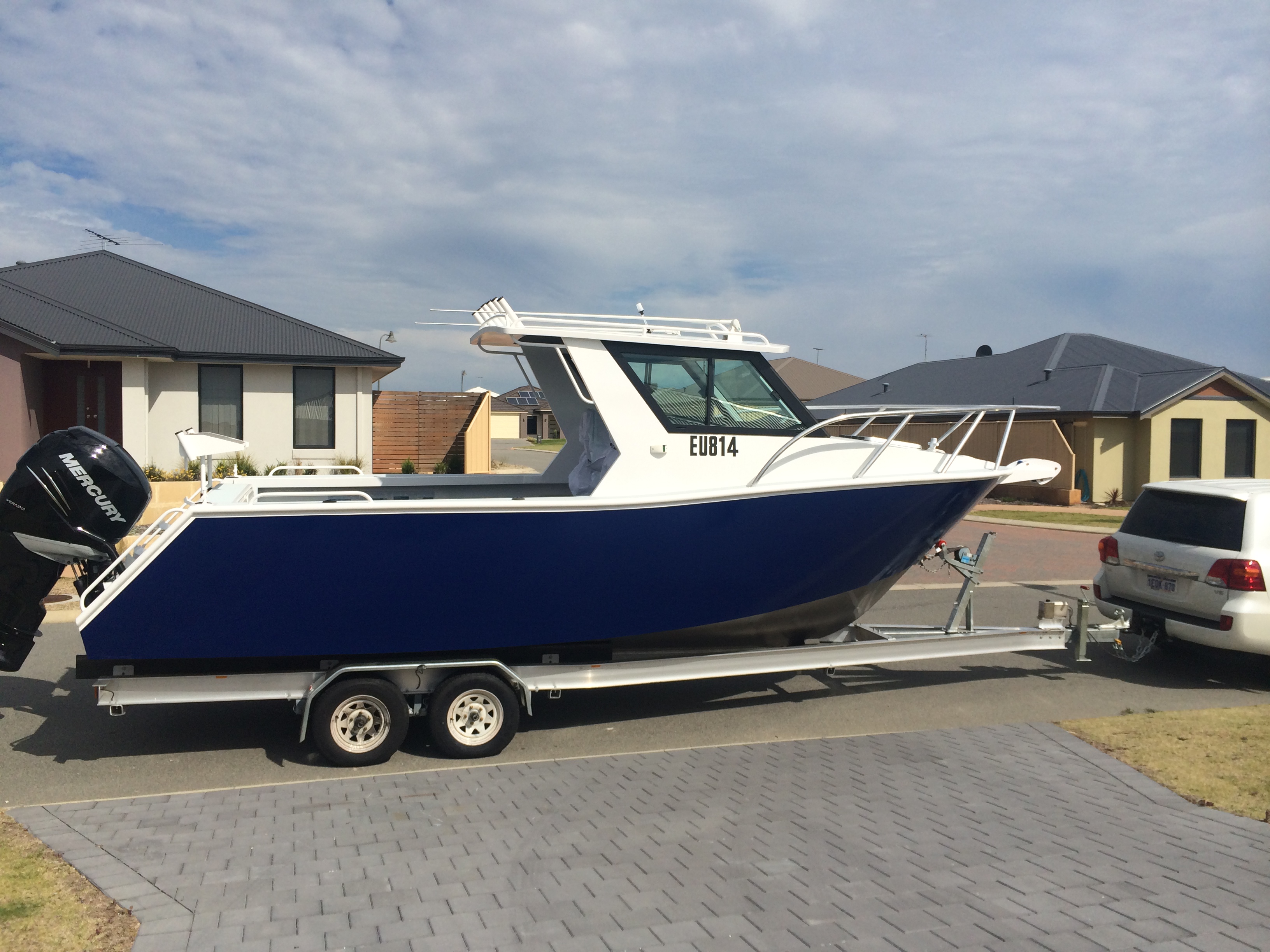

hi gents i thought i would post a few photos of my aluminium boat trailer build its really easy and you can build a 3000kg to 3500kg for under 6k i havnt had a chance to get it licenced yet but will go over easey only thing i need to do it move the winch post back about a foot

Image Upload:

Vinesh87's picture

Posts: 2756

Date Joined: 02/04/11

Looks good mate ! How many

Thu, 2014-08-28 18:48

Looks good mate !



How many hours to put it together ?

6k finished incl electrics and brakes and stuff?



What boat is that ?



Cheers,

Vinnie

gillyL's picture

Posts: 5884

Date Joined: 26/04/14

how do you work out the

Thu, 2014-08-28 18:57

how do you work out the positioning of axles?, was it all bolt up any welding required? looks bloody big nice work

____________________________________________________________________________

lucky i love to fish because i cant catch any.



BM294

skipjack's picture

Posts: 52

Date Joined: 10/11/12

the frame is all bolt

Thu, 2014-08-28 19:46

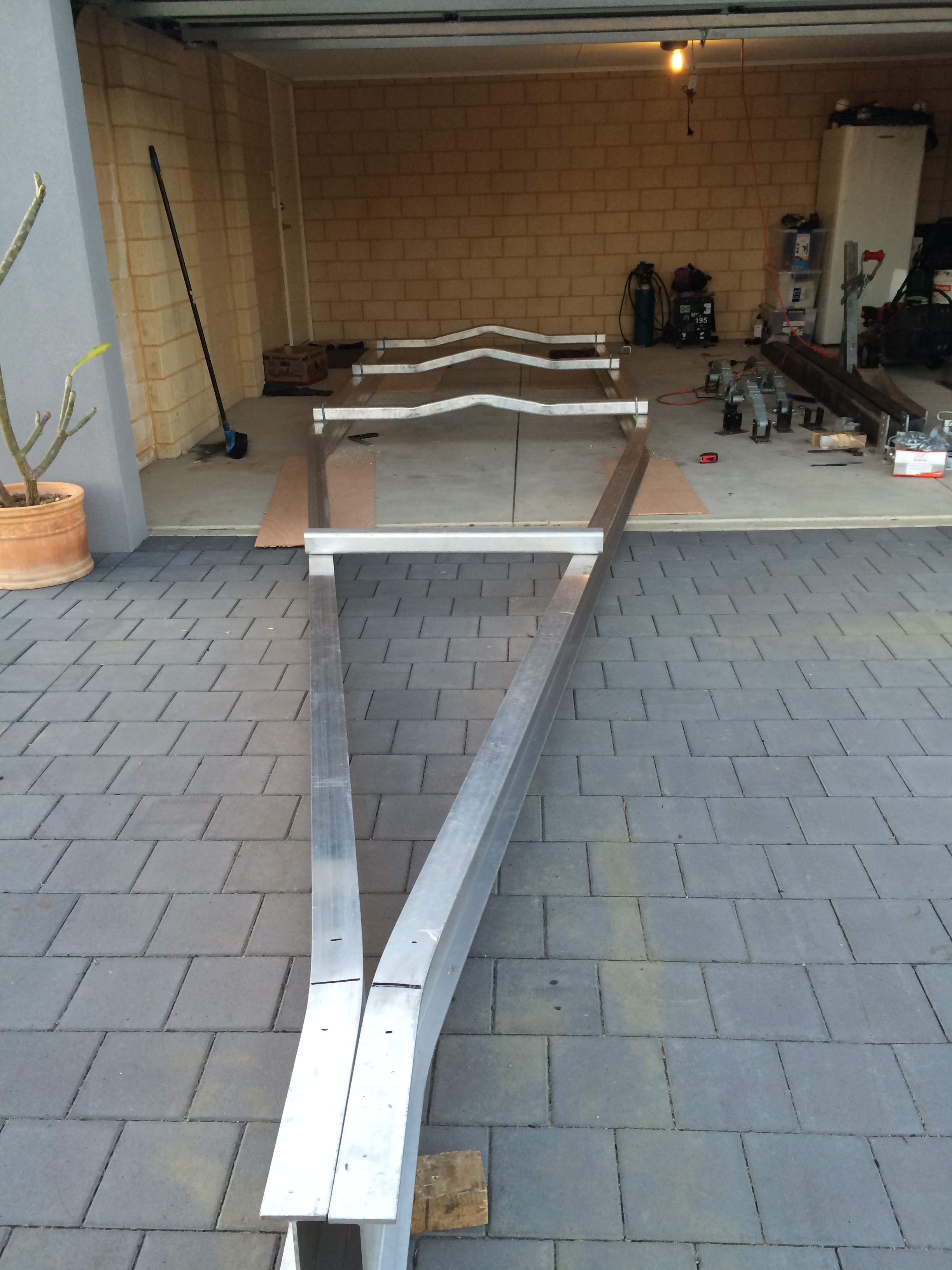

the frame is all bolt together and i new were i wanted the axels but you can just U bolt them on and try it out

skipjack's picture

Posts: 52

Date Joined: 10/11/12

took a few days about 15 to

Thu, 2014-08-28 19:00

took a few days about 15 to 20 hours and yeh with the brakes aswell for under 6k and is a oceanic fab 7.5

baron's picture

Posts: 46

Date Joined: 28/07/12

Looks great

Thu, 2014-08-28 19:02

Looks great did you get the alloy I beam bent in perth as I am interested in building the same thing.

skipjack's picture

Posts: 52

Date Joined: 10/11/12

yeh mate brought the beams

Thu, 2014-08-28 19:35

yeh mate brought the beams from capral aluminium and got them rolled at wenco there is a few other places that can roll it as well

jng's picture

Posts: 484

Date Joined: 03/08/07

 Looks good Matt!!

Thu, 2014-08-28 19:14

 Looks good Matt!!

Niko's picture

Posts: 192

Date Joined: 26/11/13

looks great and decent size too!

Thu, 2014-08-28 19:45

all your own design or was it a kit or instructions you can buy?

baron's picture

Posts: 46

Date Joined: 28/07/12

Cheers

Thu, 2014-08-28 19:46

 Thanks mate I want to build one for a 235 boston whaler I will look into it I can copy john f trailer for sizeing thanks.

baron's picture

Posts: 46

Date Joined: 28/07/12

Cheers

Thu, 2014-08-28 19:47

 Thanks mate I want to build one for a 235 boston whaler I will look into it I can copy john f trailer for sizeing thanks.

scotto's picture

Posts: 2182

Date Joined: 21/04/08

you done good mate

Thu, 2014-08-28 19:48

 Awse trailer and tub. Looks a lot like a jackman.

shonky's picture

Posts: 203

Date Joined: 22/04/12

Scraping

Sun, 2014-08-31 14:54

 Similar to mine but I had to turn my hitch upside down to lift the tow ball because the jackup stand was scuffing the kerbs and boat ramp edge. Top job mate!

____________________________________________________________________________

This habit is getting expensive!

skipjack's picture

Posts: 52

Date Joined: 10/11/12

finally got around to getting

Tue, 2014-10-28 08:46

finally got around to getting it licenced for 3250kg the tyres were holing it back from 3500kg but I think 3250 will be plenty

Posts: 185

Date Joined: 01/10/14

Congratulations looks like a

Tue, 2014-10-28 10:01

Congratulations looks like a great result. Why bolt on the mild steel RHS with everything being aluminium or was it because you couldn't get that type of section in aluminium?

sea-kem's picture

Posts: 11245

Date Joined: 30/11/09

 Pretty sure the reason was

Tue, 2014-10-28 14:14

 Pretty sure the reason was ease of construction, no welding. I doubt you'd retain member strength if you 'bumped' ali like that. For question on galvanic corrosion I reckon you'll still get corrosion even if you bolted ali pieces together anyway. I think he'll get plenty of life out of it. I'd just be spraying all the joints with lanolin or lithium to proof them a bit. It's all about maintenance at the end of the day.

____________________________________________________________________________

Love the West!

Posts: 185

Date Joined: 01/10/14

Just to take it one step

Tue, 2014-10-28 13:56

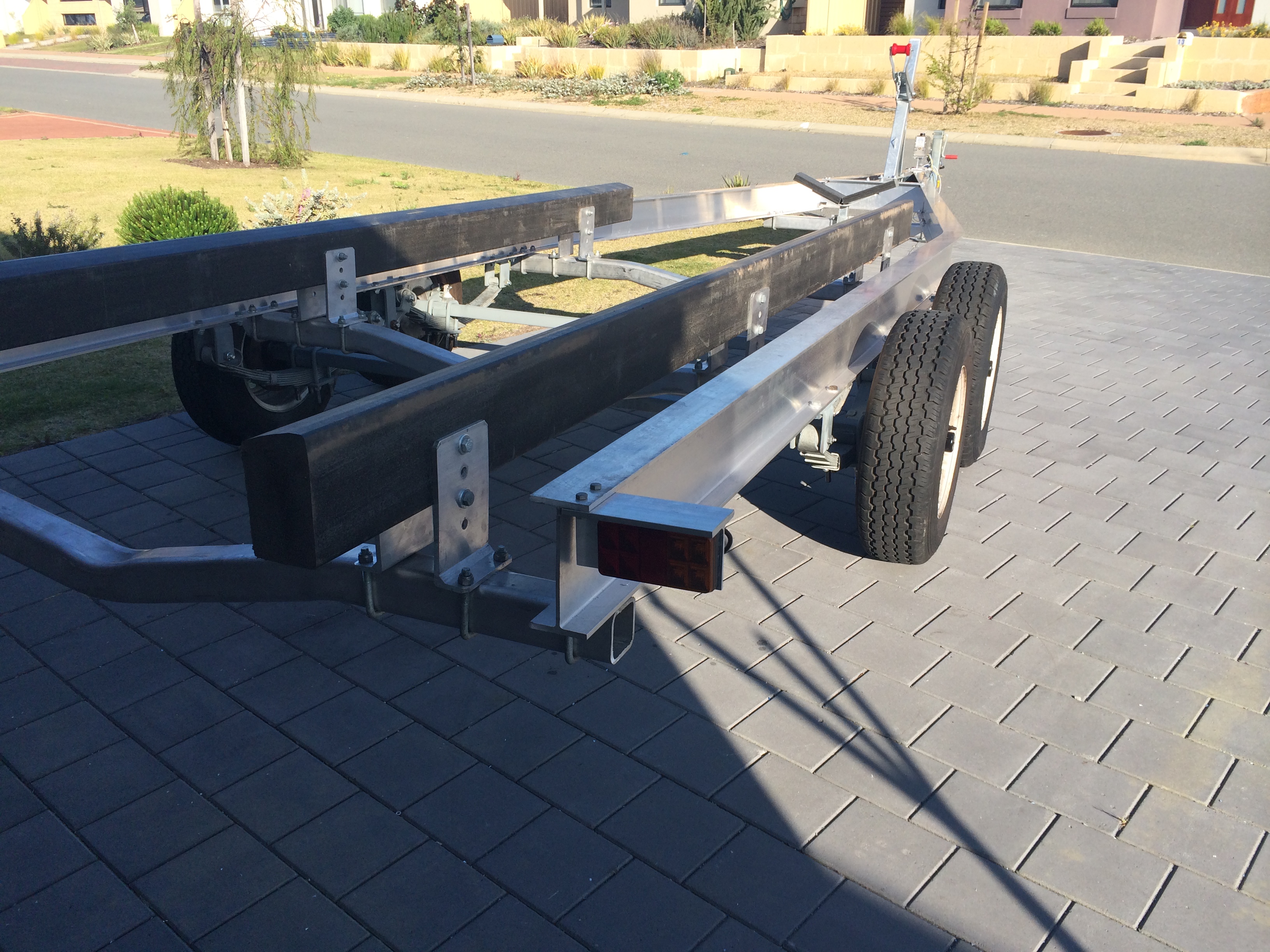

Just to take it one step further on my previous comment. I look at the trailer and see what I presume are galvanised u bolts and galvanised connecting bolts and then the mild steel runner rails. What thought has been given to galvanic corrosion?

skipjack's picture

Posts: 52

Date Joined: 10/11/12

to go stainless bolts I would

Tue, 2014-10-28 17:09

to go stainless bolts I would still be paying for them now and what do you mean runner rails? the only steel parts are the winch post and draw bar and they are galvanized

bradz's picture

Posts: 593

Date Joined: 29/10/07

Galvanic Corrosion

Tue, 2014-10-28 15:01

Isnt that only really a problem while the trailer is in the water? Electrolisis?

Provided the trailer is washed down I wouldnt see that as a problem, but I could be wrong.

____________________________________________________________________________

I did then the best that I knew how. When I knew better, I did better.

Posts: 114

Date Joined: 23/09/14

 Bradz galvanic corrosion is

Wed, 2014-10-29 15:19

 Bradz galvanic corrosion is the result of 2 dis similar materials coming into or being in contact with eachother.



This being said the paint will act as barrier for the time being slowing down the process if it was to happen.



Mitch

Rob H's picture

Posts: 4900

Date Joined: 18/01/12

 still needs an electrolyte

Wed, 2014-10-29 16:48

 still needs an electrolyte to take off.

Otherwise your car engine which has steel, aluminium, cast iron, copper, bronze, white metal etc all bolted together would cease to exist fairly quickly

____________________________________________________________________________

 Give a man a mask, and he'll show you his true face...





The older you get the more you realize that no one has a f++king clue what they're doing.

Everyone's just winging it.



Posts: 41

Date Joined: 27/08/11

What size aluminium i beams

Thu, 2014-11-06 12:22

What size aluminium i beams did you use?



skipjack's picture

Posts: 52

Date Joined: 10/11/12

beams are 178x80X8mm cross

Fri, 2014-11-07 11:13

beams are 178x80X8mm cross members are 76x76x6mm

Posts: 1

Date Joined: 07/01/15

boat trailer

Wed, 2015-01-07 23:30

 gady skipjack I have just joined the site and saw your trailer. I am in the process of buying a mustang 2800 and want to build a trailer like yours. can I get some details from you  to build one myself.

Paul H's picture

Posts: 2084

Date Joined: 18/01/07

Looks good - one thing I'd be

Fri, 2014-11-07 11:20

Looks good - one thing I'd be doing though is taking that safety chain down to the trailer beam just in front (or behind I should say) of the winch post rather than the winch post itself.

____________________________________________________________________________

Youtube Channel  -  FishOnLine Productions

https://www.youtube.com/channel/UCbUVNa-ViyGm_FTDSv4Nqzg/videos

Posts: 1

Date Joined: 16/08/18

Great Trailer

Sat, 2018-08-18 19:10

 Hi, can you please let me know where you purchasedf the aluminium from?

Many Thanks,



Phil



Mustang2250's picture

Posts: 1

Date Joined: 23/08/18

Just what I need!

Mon, 2018-08-27 08:18

G'day Skipjack,

That's a great looking trailer you've got there mate. Well done!

I too need to build pretty much exactly what you have built. Are you able to help me with where I can get the same plans, materials, etc.?

Cheers

Dale

squid2u's picture

Posts: 7

Date Joined: 12/03/12

 Hi mate,I just came across

Thu, 2018-10-11 06:32

 Hi mate,

I just came across your thread as im looking into building a trailer, do you have any drawings/plans for the trailer, any help tips etc would be appreciated.

Cheers
