Tm265lh not showing on e97

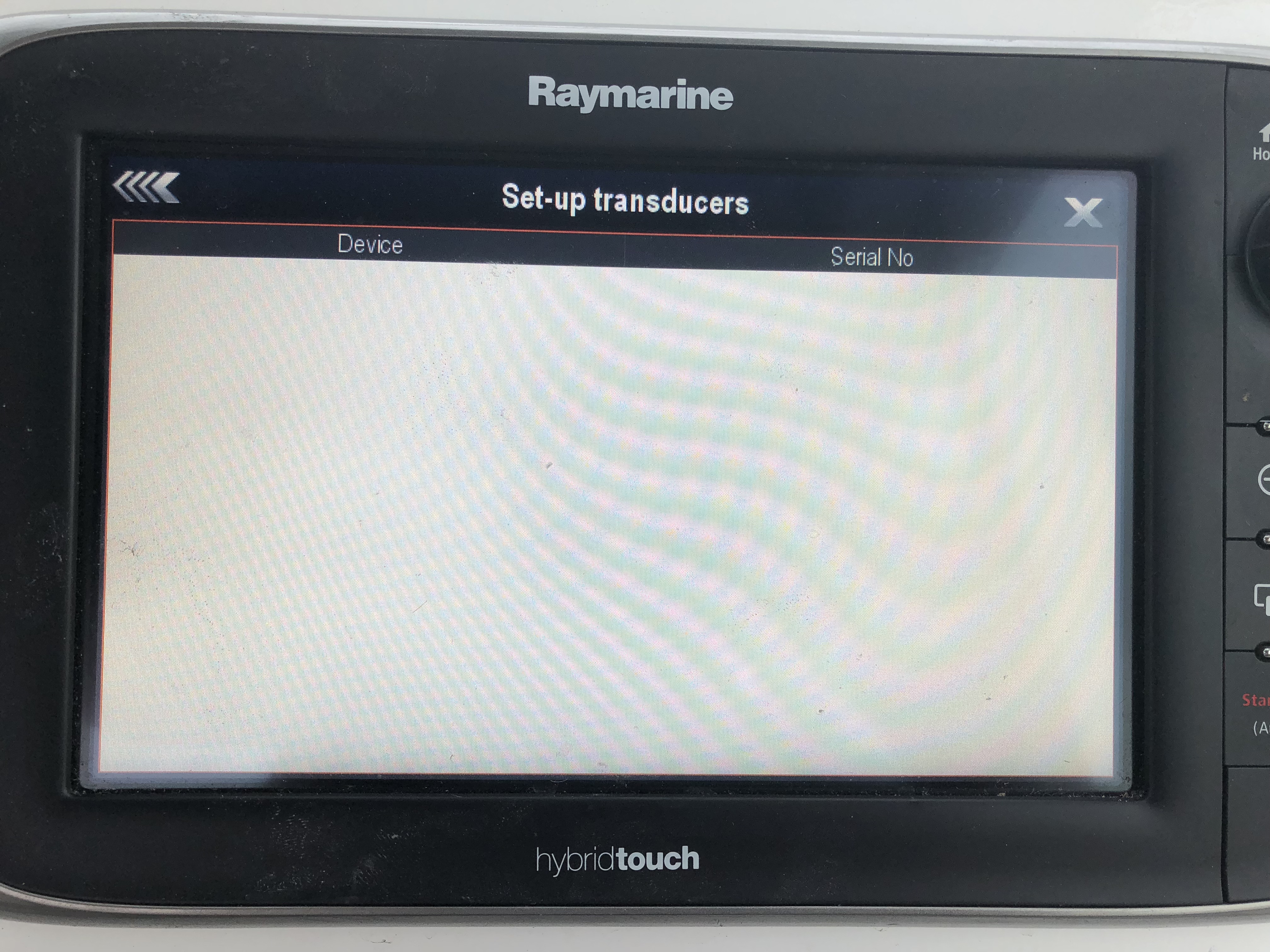

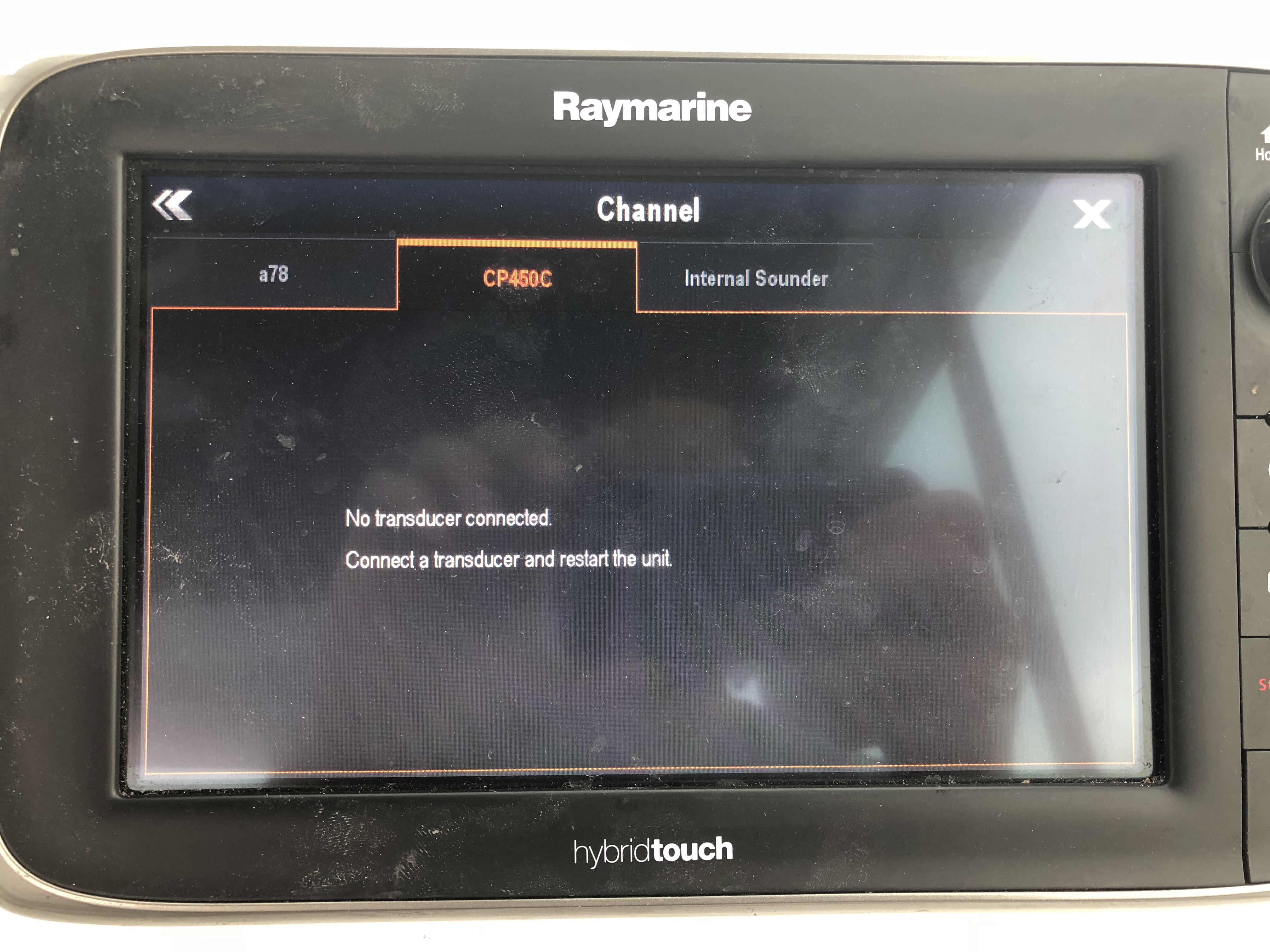

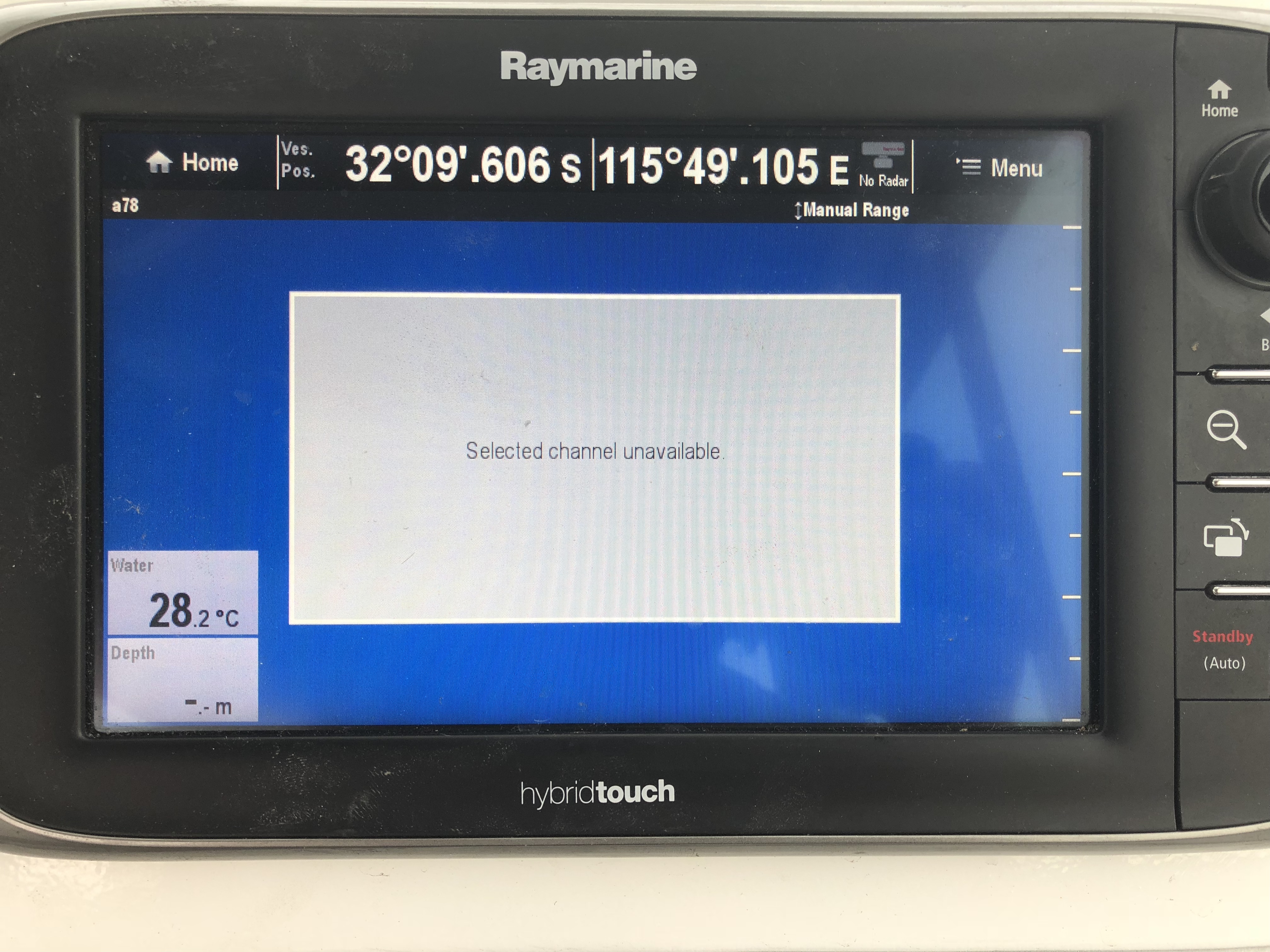

 I’ve just fitted a tm265lh transducer to a cp450c module and then to my e97 mdf this is what I’m getting when I try to select transducers any ideas?

Image Upload:

z00m's picture

Posts: 1086

Date Joined: 10/05/14

cp450c

Fri, 2018-03-23 20:25

 Is the transducer a Raymarine specific part number?

Otherwise you may need to use the airmar junction box for Raymarine chirp transducers.

www.imarineusa.com/airmar33-969-01.aspx

gruntre69's picture

Posts: 527

Date Joined: 15/10/16

 This is 100% true. There is

Fri, 2018-03-23 23:03

 This is 100% true. There is a sense resistor that is required which the chirp box adds into the cirrciut. I have just been through this exercise. The chirp box is a really nice bit of kit however you can do it without the chirp box by adding the 3K resister when you splice on the Raymarine plug. I have the wiring diagram for this and can help if you like. PM me.

If it is a Raymarine part number transducer the resister is built into the curcuit, if this is the case you either have a faulty transducer or CP450 module

____________________________________________________________________________

 Marine trimmer NOR (available for clears, tops, carpet, upholstery, custom equipment covers)

skipjack's picture

Posts: 49

Date Joined: 10/11/12

 Thanks guy you were on the

Sat, 2018-03-24 13:08

 Thanks guys you were on the money there it’s all sorted now cheers
