Anyone used one of these ?
Submitted by Ericl on Sat, 2015-10-24 07:21
Hi
Bought some of these "waterproof" connectors from an auto accesories store. The part number on the Narva packaging is 57522BL.

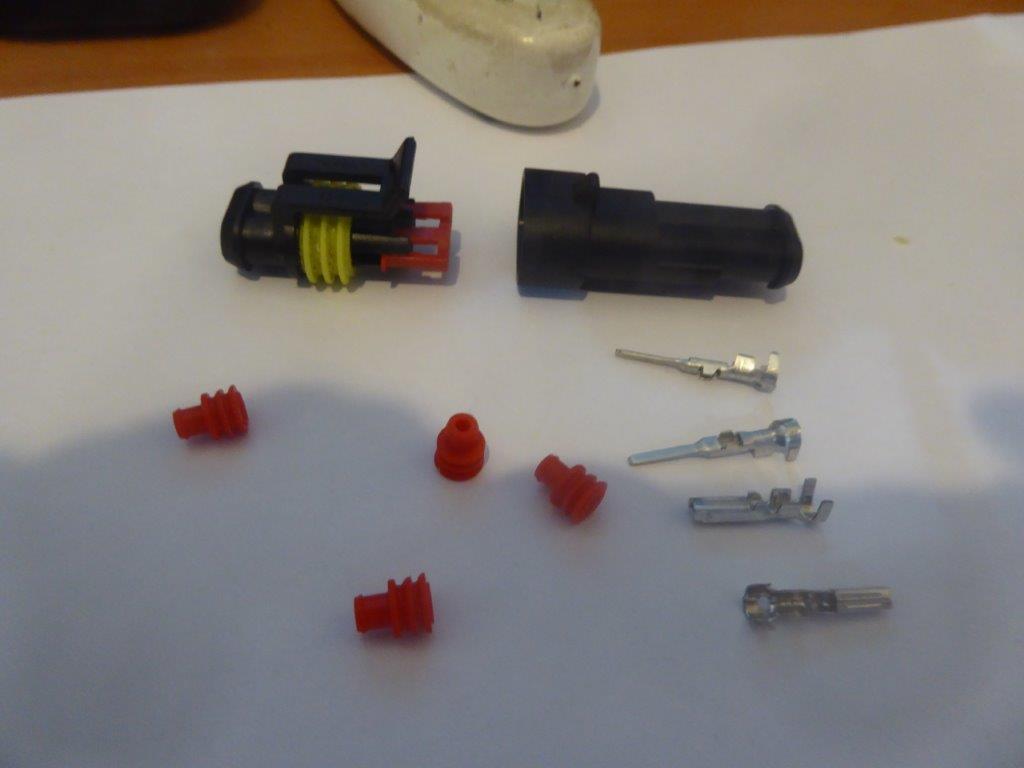

There are 2 components, the short one on the left which receives the female (short) connectors and the longer one on the right which receives the male connectors.
The short one has a red bit clipped on the front and the long bit has a red bit inserted in the body. From what I can see, it is impossible to insert the short into the long with the red bit in place, so I removed it and it seems to work OK. My question is does anyone know if they are both meant to be used ?
Cheers for any replies
Eric
____________________________________________________________________________
Don't spend all your money on beer, boats, and fishing. Save some to spend foolishly
Image Upload:
epic restos and...
Posts: 226
Date Joined: 22/06/15
take them out and keep them
take them out and keep them they are for pushing your pins back out
scottnofish
Posts: 1617
Date Joined: 28/08/07
the red bit is the
Pin lock to keep the pins in once you have fitted them .should slide inside the housing next to the pins in the socket end
Goin_Fushin.
Posts: 88
Date Joined: 07/12/13
You need to pull out the red
You need to pull out the red part in the female connector and remove the outer red bit on the male connector before inserting the pins. Scottnofish is correct - The red parts align and retain the pins in the connector. They are inserted last after the pins.
epic restos and...
Posts: 226
Date Joined: 22/06/15
sweet learn something new
sweet learn something new every day here was only having a stab in the dark cheers fellas now I no to
