Can’t help but be pissed
Well some of you may remember that I rebuilt the internals of my boat three years back. Well it turns out that I got completely screwed over by the Marine Ply supplier and got a product that is beyond useless. Unfortunately Isupply, whom I got it from in Willetton no longer exist so there is no one to chase so it is up to me to do it all again
Careful to anyone out there.
One pro is that there were a few things that I did last time that I would do again. the deck is going from 12mm to 18mm and I am going two laters of 600gsm mat as a top layer as opposed to 4 layers of 100gsm. It will be strong like tractor...
I am throwing expandable foam in every under deck compartment this time instead of just along the keel as that seems to be where the flex and eventual degradation has come from.
Learn from my mistakes...
Adam Gallash
Posts: 15647
Date Joined: 29/11/05
Shizen
Wow, understand your frustration!!
Site Admin - Just ask if you need assistance
little johnny
Posts: 5360
Date Joined: 04/12/11
Use polyurethane foam
Give a coat with glass . Salt water doesn’t touch it. Good floatation and strength. What I used inside hull and little Andy used. It’s not a reaction from expandable foam is it ? Did you put coat of resin on underside?
Swompa
Posts: 3893
Date Joined: 14/10/12
That is what i had in the
That is what i had in the hull though only on the centre voids - i will go all the way out this time as the problems have kicked off where there wasnt foam pushed up against the ply.

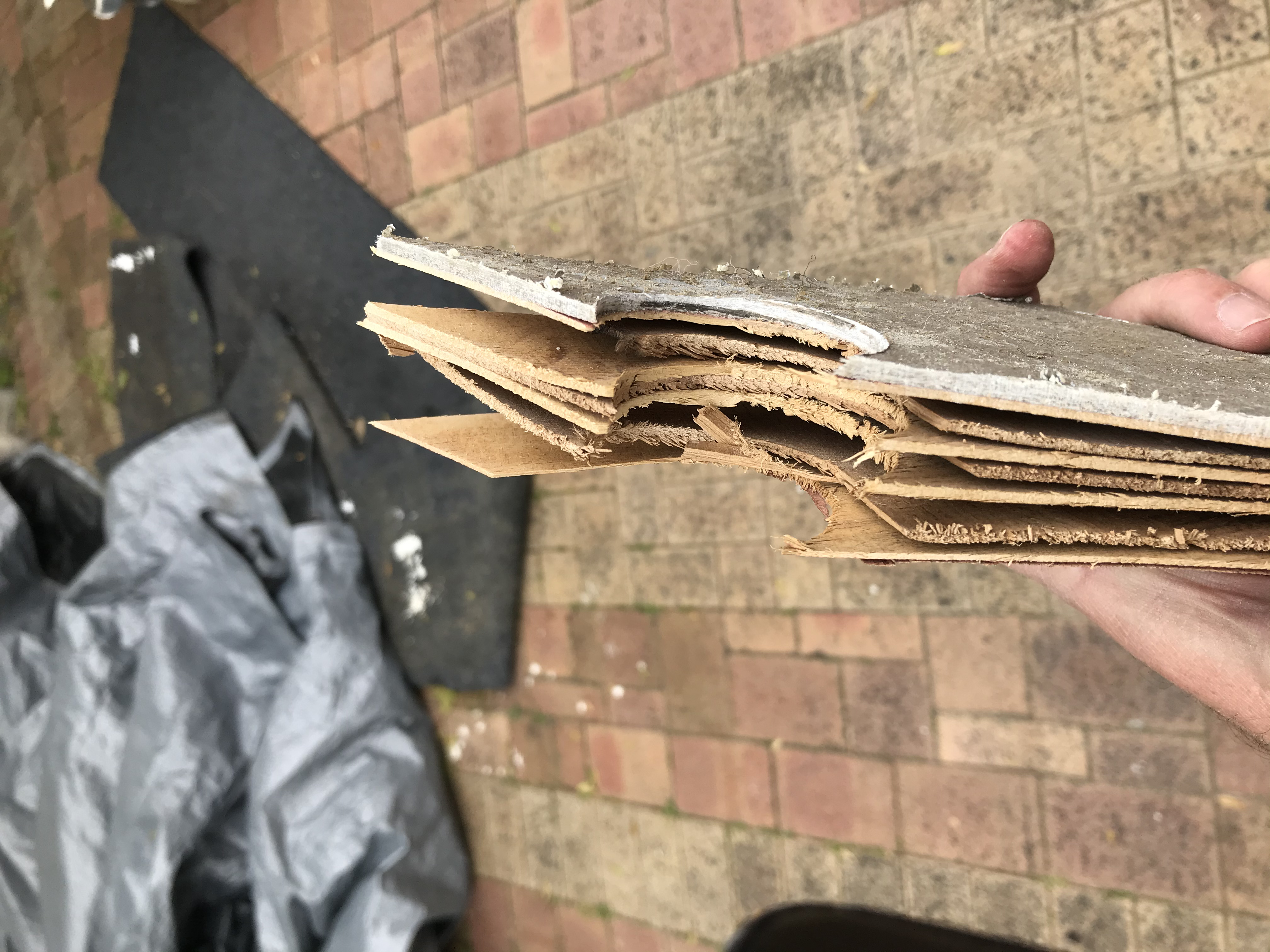

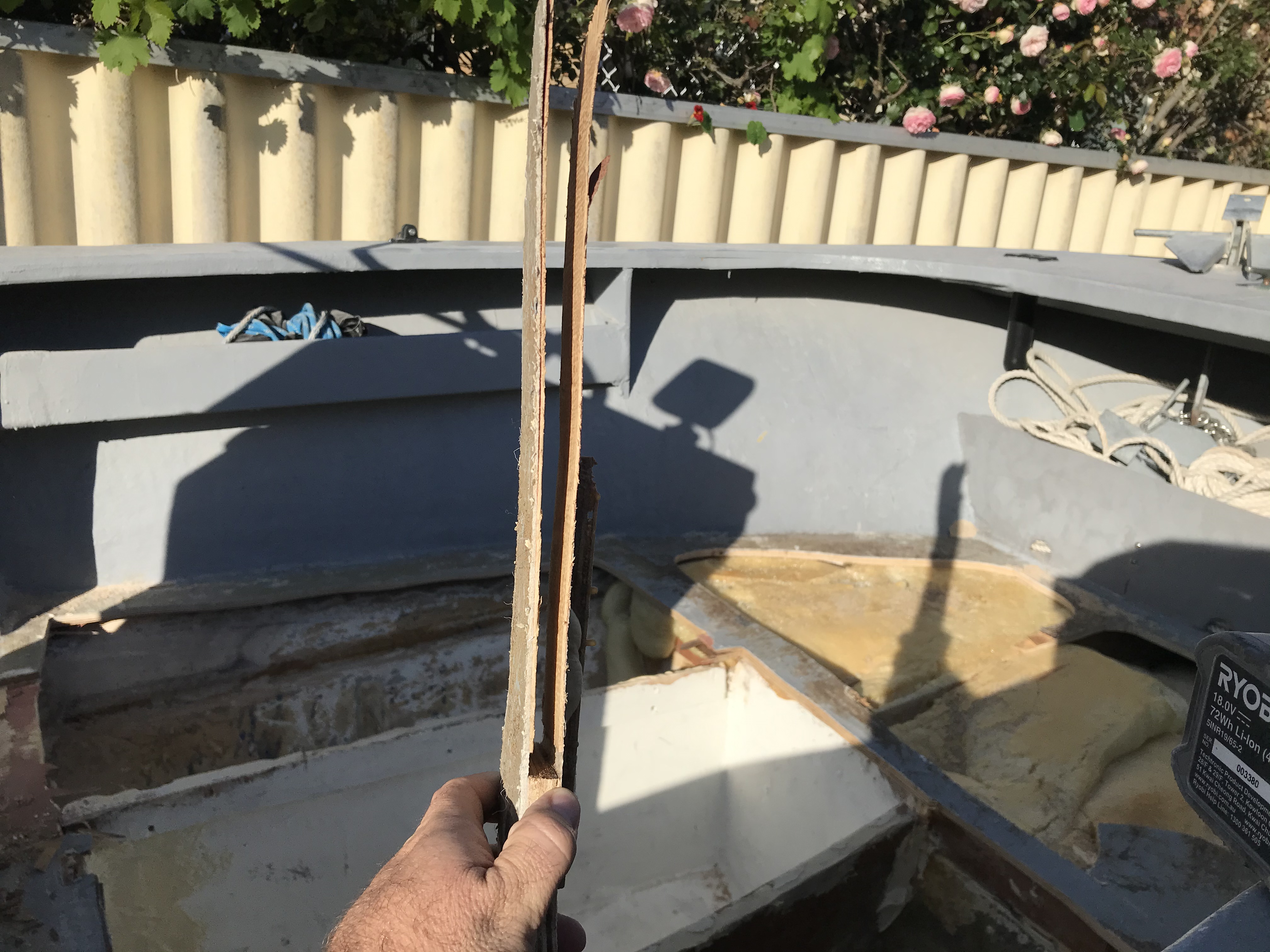

All the timber was painted with resin before I glassed it in. Every edge and each side. It was encapsulated and in the pics, you can see the glass is bonded to the timber and the resin layer on the underside is good, the bits between have simply fallen apart.
The first sign of a problem was on a hatch in the bow. There was a bit of a wear point where the 12mm ply hatch bedded into the deck...It almost sanded itself so moisture got in. Where the hatch seat bonded with the deck, it also flexed a little bit and it was all over. I replaced the hatch after 12 months though the rot just expanded out to the hull. The origional hatch was replaced with a piece of 12mm bunnings marine ply. It was just painted and had carpet stuck to it. It is fine after two years of being ignored. I was able to physically lift off the deck and the screws just pulled out.
This time I have the new timber ready and have essentially bit jigsaw puzzle pieces ready to bond in. Shouldnt take 6 months this time!
Silver Fox
Posts: 1113
Date Joined: 19/06/14
Boats
Dammed if you do and you're dammed if you don't.
My wife understands why I clean my rods n reels in the shower....
Faulkner Family
Posts: 18036
Date Joined: 11/03/08
Not good at all. Upside is
Not good at all. Upside is now you have done it once it will be better and stronger. With maybe a few extras thrown in for good measure. Good luck with it all
RUSS and SANDY. A family that fishes together stays together
Swompa
Posts: 3893
Date Joined: 14/10/12
Spot on!After the initial
Spot on!
After the initial anger at the whole thing, and frustration about getting to be an itchy bastard again, it is going to be better the 3rd time (we did the boat the first time about 18 years ago)
sea-kem
Posts: 15005
Date Joined: 30/11/09
Bloody hel mate that's
Bloody hel mate that's farked, especially with all the work and effort initially. But you now know what to target and where, I get it all the time with the weird projects thrown in my lap,always a learning curve but you soon sort out the wheat from the chaff and just do it better and easier
Love the West!
little johnny
Posts: 5360
Date Joined: 04/12/11
Is was thinking same about itching
Nothing worse . No matter how much you cover up always gets ya. Horrible stuff
scottnofish
Posts: 1621
Date Joined: 28/08/07
Try using thermolite
Instead of ply 1/3 of the weight stronger and is waterproof so never rots
Swompa
Posts: 3893
Date Joined: 14/10/12
I did actually price it up
I did actually price it up though at 4 x the cost it was a bit prohibitive considering the cost of the boat as a whole package. I also wasnt too sure on the ability of the composite material to hold a screw as I needed to screw fittings into it.
Further to that, the boat was too light after the last reno and runs/tracks better when loaded up with weight in the bow (it is a converted forward control boat, turned into a centre console) so there is more positive than negitive to the extra weight overall (stops it slamming).
scottnofish
Posts: 1621
Date Joined: 28/08/07
Yeh 400 a sheet is up there
I've just finished doing all the ribs bulkheads and floor with thermolite on my cat .I glassed stainless plates under the floor where seat bases were going for strenght
Brock O
Posts: 3233
Date Joined: 11/01/08
Like..
Like..
Swompa
Posts: 3893
Date Joined: 14/10/12
I did actually price it up
Must have double tapped
davewillo
Posts: 2410
Date Joined: 08/09/16
That sucks mate! At least
That sucks mate! At least it'll be bulletproof once it's done.
I thought you were upgrading to an overnighter/weekender?
PGFC member and lure tragic
Swompa
Posts: 3893
Date Joined: 14/10/12
The more I look the further
The more I look the further away it feels.
Still, i will have to sell this boat to fund the next one and couldnt sell it without it being spot on.
We are 12 months off ordering and with a 12 month build time, hopefully it will be a good 40th.....in three years time.
davewillo
Posts: 2410
Date Joined: 08/09/16
Yeah that all makes sense.
Yeah that all makes sense. I'll keep an eye out for the build thread!
PGFC member and lure tragic
Shark1
Posts: 1086
Date Joined: 21/05/12
m8 i made some bee boxes -
m8 i made some bee boxes - same thing happening with delamination
Pascoe Industries for AMSA approved suvey foam
diver
Posts: 149
Date Joined: 25/09/08
I feel for you
But I can say that unfortunatly there has been some Marine Ply imported from a place with very dubious manufactoring skills not to point the finger but about 10 years ago all the electrical wireing used in Australian homes & Shops was also imported,(to keep costs down?) it turned out that the insulation is uslesss and false apart then must not forget the Perth Childrens hospital The doors not fitting the water haveing high lead consentrations the Aspestos in the panels still Australians loved to save a dollar.I used braided air hoses on my first & second regulators one blew out nearly took the back of my throat out with it,Never again.
