Dash wiring rearrange
Submitted by Rob H on Wed, 2014-09-10 19:50

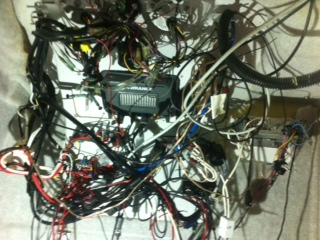

got a bit tired of looking at the underside of my dash panel, it probably started off good but then all sorts of addons have been fitted with inline fuses all over the place.

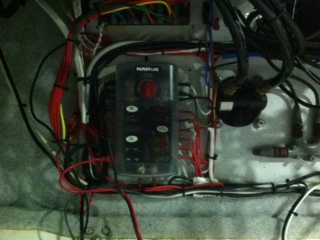

Bought a Narva 12 fuse panel of Autoelecau, and chopped, re-routed and replaced a fair bit of wire.

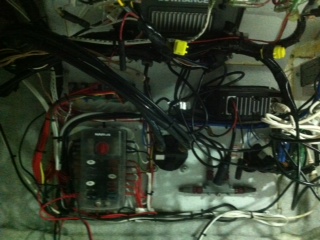

Still looks a little untidy to me but the only inline fuse now is the "always on" bilge pump.
Gave it all a test run to the islands last week with Dan (Bitten) and another mate, much easier if you need to fault find a dodgy piece of equipment.
____________________________________________________________________________
Give a man a mask, and he'll show you his true face...
The older you get the more you realize that no one has a f++king clue what they're doing.
Everyone's just winging it.
Image Upload:
Paul G
Posts: 5215
Date Joined: 12/12/07
That first pic looks like my
That first pic looks like my dash wiring .Yer nothing worse than having hundreds of red wires and two black makes it hard to know what is what.
Active Gyp-Rok solutions ,Residential and commercial ceilings and walls
fuzzy79
Posts: 119
Date Joined: 31/07/10
That looks like the
That looks like the underside of my dash too. I am trying to slowly clean it up, especially as I replace the radios. I had a couple of coils of wire under there, each about 5-6m long. Whoever did the original wiring didn't bother shortening the wires, just coiled them up and stuffed them in there.
Rob H
Posts: 5798
Date Joined: 18/01/12
yeah couple of days screwing
yeah couple of days screwing around.
The Narva panel is really well made EXCEPT the stickers peel the paper off as well.
Had a whinge to them and they posted a new set out-exactly the same
Give a man a mask, and he'll show you his true face...
The older you get the more you realize that no one has a f++king clue what they're doing.
Everyone's just winging it.
Paul H
Posts: 2104
Date Joined: 18/01/07
Looks much better Rob, I
Looks much better Rob, I don't mind spaghetti but not in wiring :-)
Youtube Channel - FishOnLine Productions
https://www.youtube.com/channel/UCbUVNa-ViyGm_FTDSv4Nqzg/videos
davidbland50
Posts: 392
Date Joined: 24/07/11
Sweet
Mate,
Nothing better than getting in there and clearing out the crap other people have been too lazy to do anything about in the first place. Makes for easier problem solving and a lot safer because less chance of short circuiting and causing a fire. Well done.
Wherever you go, there you are
Cruise Control
Posts: 973
Date Joined: 03/11/10
Yep, mine looked exactly the
Yep, mine looked exactly the same. I however took the easy route and had a sparky do the work as my electrical knowledge is somewhere between 0.00 and 0.10
