DIY Squid/Bait Light

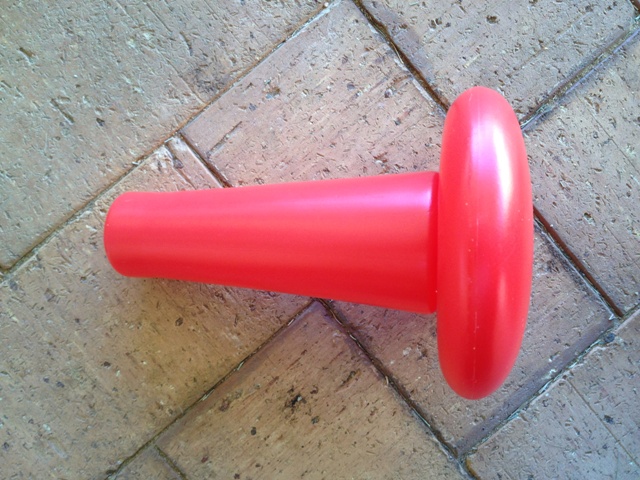

I thought I'd attempt to make myself a floating squid/bait light using an old childs toy. The toy screws apart and each section is filled with air.

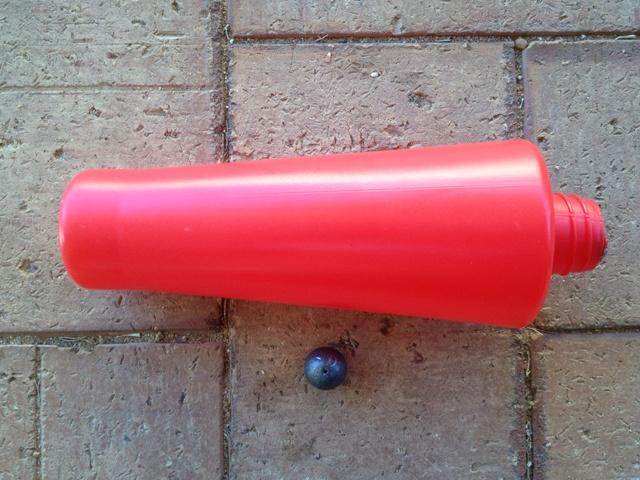

A small sinker in the shaft ensure's it stays right way up.



A few small holes (at each end) will cause the shaft to fill with water. The other part is sealed up and becomes a float.



A length of waterproof LED's from my fav online auction site will do the trick

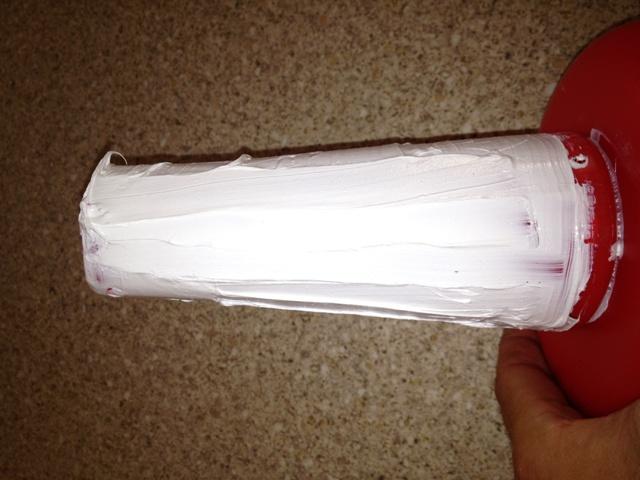

A light sand and a coat of adhesive added



Wrap the LED's around and attach a long lead to a 12V plug.



Works a treat



____________________________________________________________________________

http://forcewebsites.com

Image Upload:

Posts: 4

Date Joined: 28/07/11

Squid/bait Light

Mon, 2012-05-21 21:35

I can turn this lamp other way up, sit it on the boat or car and it makes a great work/camp light.

____________________________________________________________________________

http://forcewebsites.com

Lamby's picture

Posts: 2875

Date Joined: 04/08/09

That's thinking outside the

Mon, 2012-05-21 21:45

That's thinking outside the box, nice one

Snags's picture

Posts: 481

Date Joined: 07/05/09

that is mint! How much??

Mon, 2012-05-21 21:49

that is mint!



How much??

Posts: 4

Date Joined: 28/07/11

All under $25

Mon, 2012-05-21 21:53

Toy - free, my daughter donated to a good cause

Lights - around $24 for 5m delivered from ebay (I used about 2m for this)

Cable/plug - $free as were laying around the shed

____________________________________________________________________________

http://forcewebsites.com

scottland's picture

Posts: 2328

Date Joined: 10/05/10

To quote bruce mcevaney

Mon, 2012-05-21 22:05

 "clevvvvvver" hahahah would work a mint

____________________________________________________________________________

 i need a cheaper hobby

Posts: 70

Date Joined: 27/02/11

Working on something similar,

Tue, 2012-05-22 08:11

Working on something similar, but this look so much simplier than what I've been working on.

Posts: 9363

Date Joined: 21/02/08

Cool! Let us know if it

Tue, 2012-05-22 08:11

Cool! Let us know if it improves your odds!

____________________________________________________________________________

SABRE's picture

Posts: 404

Date Joined: 17/05/12

Well done kudos for the

Tue, 2012-05-22 08:49

Well done kudos for the idea-brilliantly simple. I,m shore based would this work the same of a jetty ?

____________________________________________________________________________

If fishing is a sport I,m an elite athlete

Posts: 4

Date Joined: 28/07/11

low voltage

Tue, 2012-05-22 10:17

The lights are ultra low voltage and heat so there is no reason why you couldn't use a really long lead to your porta battery pack or vehicle. They'd run all night will little drain on the battery.

____________________________________________________________________________

http://forcewebsites.com

dkonig82's picture

Posts: 1983

Date Joined: 06/07/10

You've inspired me.Going to

Thu, 2012-05-24 17:30

You've inspired me.

Going to order some LEDs now

____________________________________________________________________________

When asked by a non-fisherman 'how many fishing rods do you really need?' the correct answer is either:

n+1 (where n is the number of fishing rods you currently own); or

n-1 (where n is the number of fishing rods which would cause your significant other to dump you.

Posts: 100

Date Joined: 02/05/11

Hi tnarg79Got my led strip

Mon, 2012-08-20 15:14

Hi tnarg79

Got my led strip light and am going to make something similiar. Thanks for the idea, I was going in a different much more complicated direction

Few questions if i may

1. Is it necessary to use adhesive, my strip light has self adhesive backing

2. Is the connection between LED and cable waterproof, or did you have to do anything to make it more watertight

3. Lastly, did it improve your catch rate

Thanks

Eric

dkonig82's picture

Posts: 1983

Date Joined: 06/07/10

Hey EricAfter seeing this

Tue, 2012-08-21 09:23

Hey Eric

After seeing this post I made myself one also, so can probably answer your questions.

1. I just used the adhesive that came with it, but made sure to keep the wraps very close together to keep water from getting between them as much as possible and I also put a large cable tie around the first and last wrap. Note though my cylinder was a constant diameter, with a cone as per the above you'd probably want better adhesive.

2. Depends how you connect it. We ended up cutting both ends off and soldering it onto cable directly, then coating in sikaflex and heat shrinking. She's waterproof now, but if you just used the plug I wouldn't trust it.

3. Too early to tell. We gave it a 30 minute bash one night and some small shrimp looking things and little fish started hanging around, but didn't pull any squid off it. Will give it a better go another time.

Be mindful of battery usage, and also of using any high current items (such as starting the engine) when you have this connected depending on what gauge cable you've used.

Dan

____________________________________________________________________________

When asked by a non-fisherman 'how many fishing rods do you really need?' the correct answer is either:

n+1 (where n is the number of fishing rods you currently own); or

n-1 (where n is the number of fishing rods which would cause your significant other to dump you.

topperQ's picture

Posts: 45

Date Joined: 07/05/12

 Haa..ah..! nice work! Very

Tue, 2012-08-21 09:48

 Haa..ah..! nice work!

 Very creative indeed.

____________________________________________________________________________

 Live to fish

Walfootrot's picture

Posts: 458

Date Joined: 23/07/12

Thats a bright idea! LOL,

Tue, 2012-08-21 11:29

Thats a bright idea! LOL, think it would work well over some weed banks for the squid!

____________________________________________________________________________

More drum lines, kill the bloody sharks!

grantarctic1's picture

Posts: 1888

Date Joined: 03/03/11

Nice job

Tue, 2012-08-21 11:52

Nice job mate. Simple but looks great and would be cool to see some results in the future. I wonder how it would go for prawns ?
