Electric reel cables

 Picture of the cables I make up.

____________________________________________________________________________

Don't spend all your money on beer, boats, and fishing. Save some to spend foolishly

Image Upload:

black gen's picture

Posts: 762

Date Joined: 13/04/11

 How long are they? what

Thu, 2021-05-13 20:55

 How long are they?
what reels do they fit?



how much Eric?

Ericl's picture

Posts: 445

Date Joined: 02/05/11

A bit more explanation

Tue, 2021-05-25 08:21

Hi Blackgen

Sorry for the long delay.

I don’t make these to sell, just for my own reel. The reason I make them is I think the Daiwa item is inferior. Cable wiring is plain copper – not tinned, and I have had 2 fail already.

Closest plug I could find was from Jaycar – PS2014 ($3.75). Very close fit, pin outs perfect but OD a bit big so had to file it down a bit. Also securing lock ring didn’t match so cut it off and secured cable to reel with a small cable clamp.

Cable I use is 4mm Twin core tinned which can easily handle the maximum current draw of my Tanacom (30A). This cable cost about $2.50 per metre on EBay. Wires are soldered and then I double seal with glue lined heat shrink. Cable length to suit your layout and connectors at ends whatever you want, crocodile clips etc.

Hope this is clear. A little bit of work, but I think you end up with a superior cable to the Daiwa original

____________________________________________________________________________

Don't spend all your money on beer, boats, and fishing. Save some to spend foolishly

Ericl's picture

Posts: 445

Date Joined: 02/05/11

Picture didn't paste tryaing again

Tue, 2021-05-25 08:22



____________________________________________________________________________

Don't spend all your money on beer, boats, and fishing. Save some to spend foolishly

black gen's picture

Posts: 762

Date Joined: 13/04/11

 sounds good eric. You are a

Tue, 2021-06-15 14:15

 sounds good eric. You are a legend mate cheers

Ericl's picture

Posts: 445

Date Joined: 02/05/11

2nd post

Tue, 2021-06-15 14:20

Hi black gen. Did you see the second post in which I provided more detail etc.

Cheers Eric

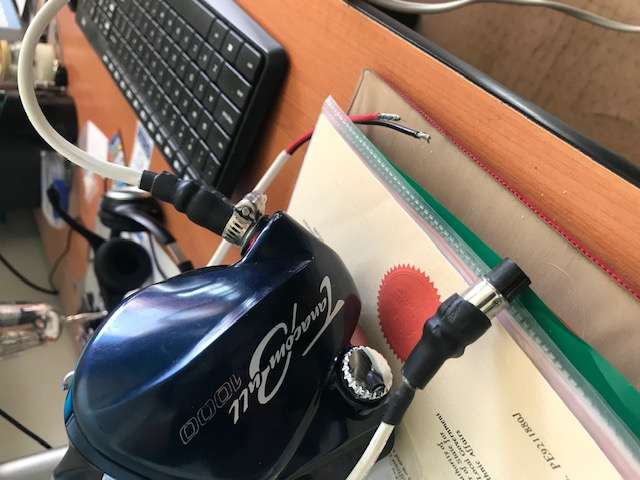

Electric reel cable for Blackgen
