M260 in Baron Outrider - Bobakers
Submitted by Gunner966 on Fri, 2015-06-19 08:39

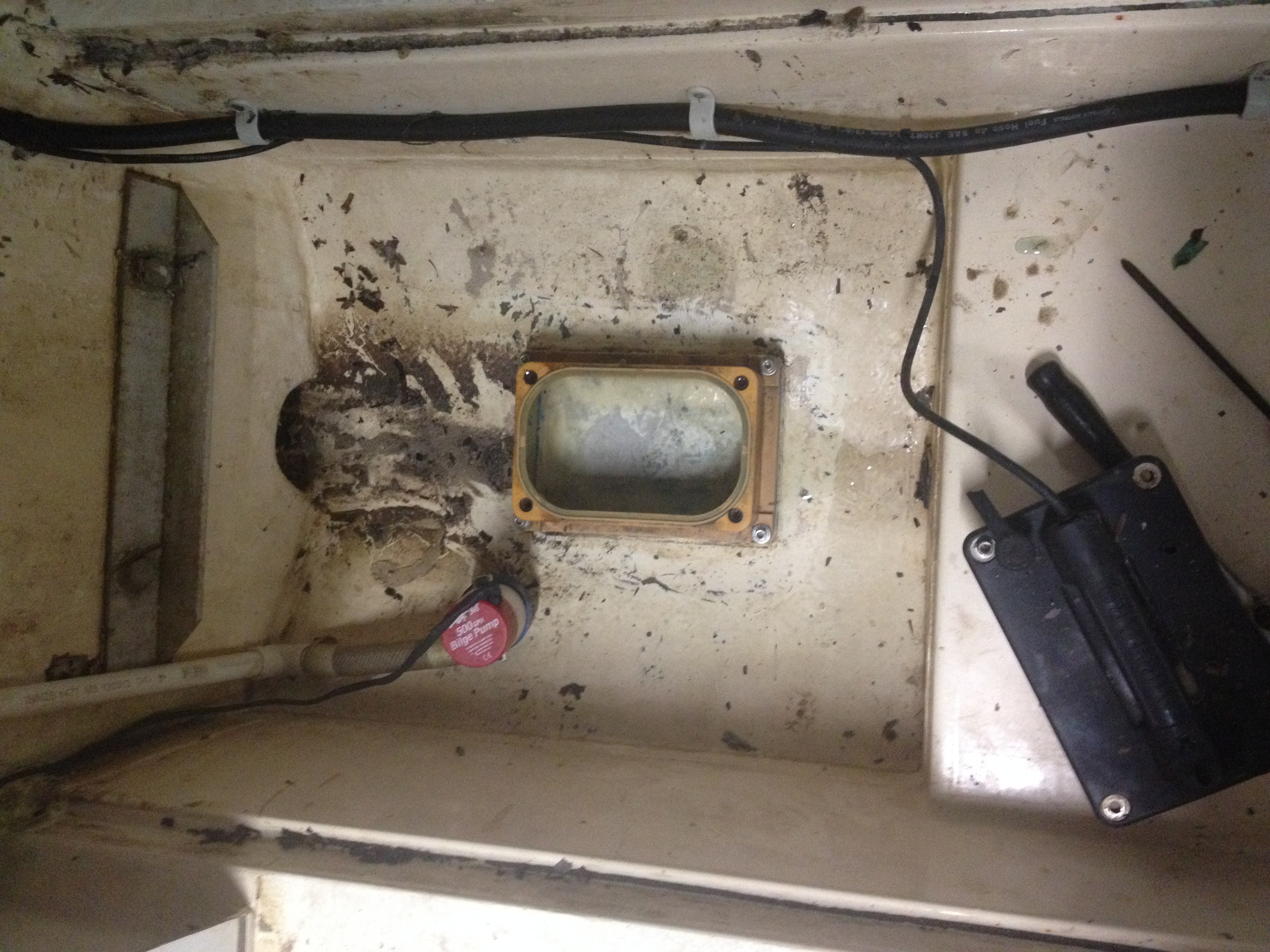

Sorry Bobakers,
not clever enough to insert pictures into existing post.
Gunner
Image Upload:
bobakers
Posts: 23
Date Joined: 05/06/11
Hi Gunner
Thanks, that's exactly where Im looking at putting it. the installation manual says to keep it off the centreline (keel)but I was hopping that its just glass in this area.
Bob
JohnF
Posts: 2836
Date Joined: 07/07/10
Keel is thick and will
Keel is thick and will attenuate the beam....I would offset it to the thinner part just off the keel centreline but as low as possible.
However, is this installation works well on the centreline, it will be easier to install.
I would opt for the best option, not the easiest.
Boston Whaler 235 Conquest......getting the flogging it was built for.
bobakers
Posts: 23
Date Joined: 05/06/11
hi john
on the back of the baron the keel finishes about 600 from the stern
[img]https://www.dropbox.com/s/eltofbby4kdhffz/Boat%20picture%202.jpg?dl=0
Not sure whether there is a difference with the thickness of the glass around this area???
Regards
Bob
Gunner966
Posts: 145
Date Joined: 23/04/13
It seems to work for me -
It seems to work for me - picking up fish in 360mtrs recently although only going at 4-5 knots.
Bob there is always the transducer in a bag of water trick. You could turn your gain right down and see which position gives you the stronger signal. I doubt it will alter much.
Good luck
Gunner
Scotte
Posts: 1142
Date Joined: 07/12/06
If that section in the
If that section in the middle is flat it should work awesome. I have the same setup and its the best set up wet box i have seen.
