Picture of FWA's sounder off tv
Hi,

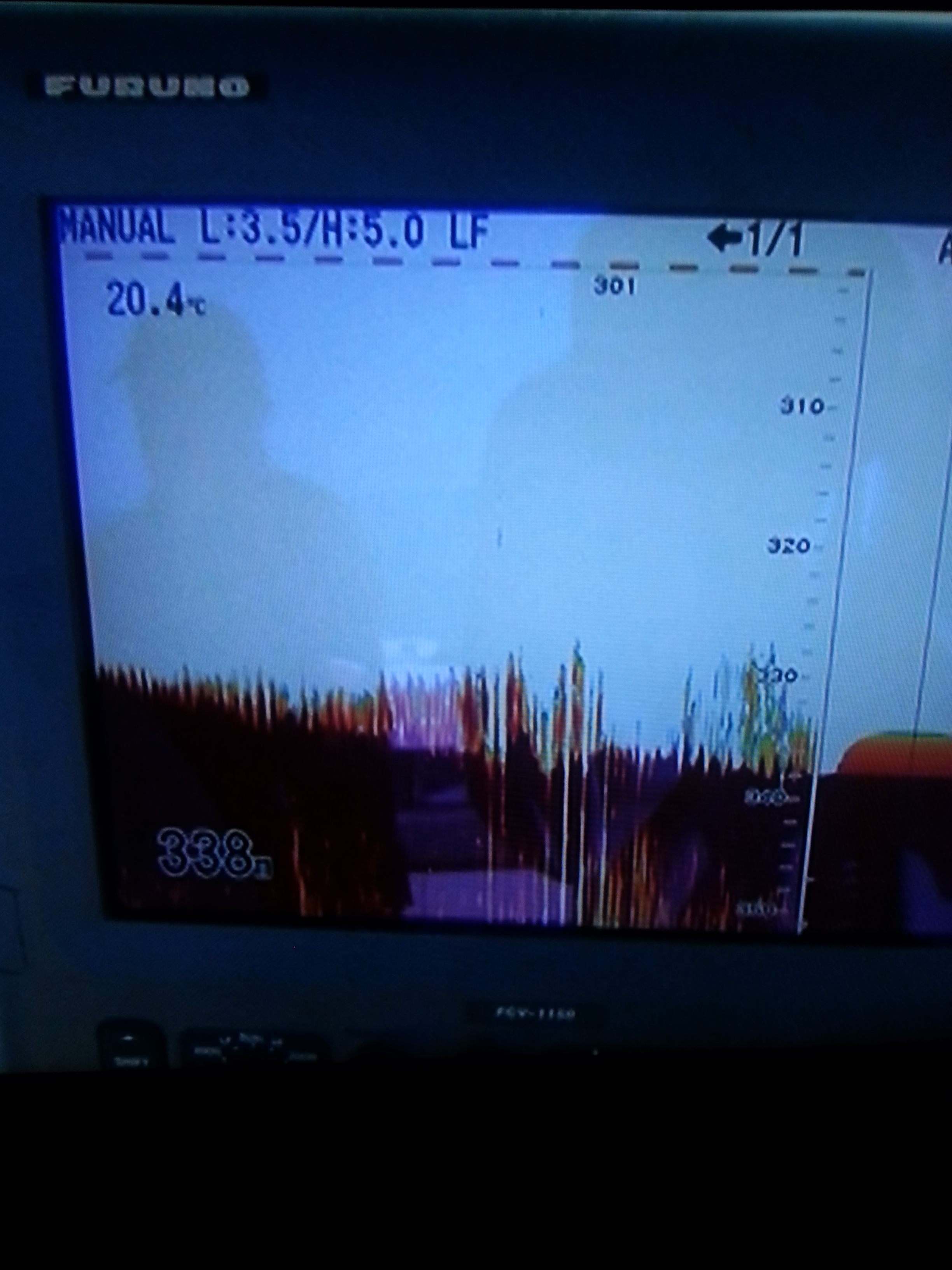

I was watching the FWA episode that was on the weekend where Ryan went out deep for Grey Band and Blue Eye. I paused the tv and took this photo of the sounder and just have a few questions.
In the shot, is it a rock that is showing on the sounder, fish or coral that is showing in the centre of the picture?
And on the right hand side of the picture, not the A Scope, is that just fish by themselves or ground and fish combined?
The reason I ask is that I have been out a few times in the same depth and got a similar picture on my sounder but it only has a 500w transducer and the fish don't show as strong. One outing, I caught some grey band off of this type of sounding but the second time out, the current was so strong that my baits weren't staying on the bottom for long and I didn't catch a thing other than a few green eyed sharks. I didn't know if it is structure or just interference from something. I can turn my gain right up and make it solid instead of broken up but then I get clutter all over the screen. In the near future, I will upgrade to a 1kW transducer but for the time being, I would like to know what Ryan's sounder was showing.
Thanks,
Ken
tim-o
Posts: 4657
Date Joined: 24/05/11
The dark red is all the
The dark red is all the bottom, the little lumps are caused but the seas/swell, the ground got deeper then theres a 3-4m lump in the middle there, anything above it is fish(lighter red, prob good fish, green, smaller fish perhaps)
I am, as I've said, merely competent. But in an age of incompetence, that makes me extraordinary.
scottnofish
Posts: 1617
Date Joined: 28/08/07
i would say
A bit of alump at the bottom of a drop off with bait fish all over it then as it levels out a bit a nice school of bass or puka
reece
Posts: 522
Date Joined: 10/07/08
The red in the middles
The red in the middles bottom an the blue/ green on the right before the A slope is coral an fish
Any one free to help me pull my drum lines tomorrow?
Deleted
Posts: 6265
Date Joined: 26/04/14
ryan Thipthorp
send him a PM, he would be the one to talk to. didnt see the episode but have seen a few deep drop pics and looks like he's a guru
Fraser 5.25
Posts: 122
Date Joined: 25/07/11
Thanks guys. I'll send him a
Thanks guys. I'll send him a message gillyL but I hope I won't annoy him too much. I'm sure he gets lots of PM's.
randall df223
Posts: 6454
Date Joined: 08/08/11
You won't annoy him. I have
You won't annoy him. I have sent him pm about the show and he us happy to answer any questions. might take a day or two to respond so be patient.
Fish! HARD!
Cruise Control
Posts: 971
Date Joined: 03/11/10
Hey KenWhen you get an
Hey Ken
When you get an answer, why dont you post it up under this thread. I'm sure that there is more than a few of us that would be interested in Ryans interpretation of the sounder. Mind you, it would seem pretty evident that he saw it as fish given that he caught off it !
cheers
randall df223
Posts: 6454
Date Joined: 08/08/11
I think this is one time
I think this is one time that the a scope is advantageous. it is a real time image of the echo strength. what you see as a really really deep red / burgundy colour is the bottom. anything above that is not the bottom ie either weed or fish. looking at the strong red colour immediately above the bottom, still looking at the a scope, I'd say they're strong fish echos.
Fish! HARD!
Ryan Thipthorp (not verified)
Posts: 23
Date Joined: 01/01/70
My sounder interpretation!
Hi Ken,
I received your PM and happy to answer mate as Randall said!
Ok, firstly its limestone hard base and in the middle of my sounder is several lumps!
The lead up to the lumps is ground flares!
After the lumps are all fish, that colouration is normally bass & puka but with the blue echo's mixed in is normally trevalla (yes all 3 can mix into a school)!
Feel free mate to ask any questions .... happy to help!
Fraser 5.25
Posts: 122
Date Joined: 25/07/11
Thanks Ryan. Are ground
Thanks Ryan. Are ground flares broken up ground?
