raymarine - which 1kw transducer ???
been getting some varied advice on the best way to go for a 1kw transducer...
the 2 options i have it short listed to are an in hull wet box type transducer and a through hull 20 degree transducer
the shipwright im going to use reccomends the through hull but when i speak to the dealers they are trying to talk me into the wet box in hull style. they both seem absolutely confident about there option being the best way to go....
the arguments so far consist of....
im told by my shipwright the wet box in hull transducer loses 15 - 20% power by having to shoot through the fibreglass hull and the possibility of any small air bubbles in the existing glasswork can cause issues....however the dealer assures me this isnt a concern and they work extremely well regardless...
the through hull transducer im told by the dealer can be a concern - obviously having broken the integrity of the hull by drilling a hole for it to go through...
( this is a 24 foot fibreglass trailer boat )
most of the time ill be fishing fairly shallow for demersals however i do want the capability to go deep 300+ when i get the itch...
opinions as always appreciated
have attached photos of either option.... the through hull potrudes 6mm and the raymarine website says it is strong enough to sit on trailer rollers etc without hurting it....
Gooooone Fishin!
.jpg)
glastronomic
Posts: 892
Date Joined: 16/02/11
Broad Band
Broad Band Sounder/Structurescan Clearpulse CHIRP modules are the new way of searching for Fish and structure, this will replace sonar based systems.
This system reveals a much greater detail and has a better coverage of the area with a lot less blanks in between.
Have a look at this before you part with $$.
There is a lot of info in the current Ray Marine 2012 catalogue regarding this.
and in the other brands for that matter.
The real issue what to get is with the head units and the processing capabilities to run these new innovations that are now coming through from a great many brands.
CHIRP is developed by the supplier /maker of the sonar modules and therefore all brands can buy/get this system in their lineup and that will guarantee that it will become the standard very soon.
grayzeee
Posts: 2283
Date Joined: 09/07/09
How much extra is involved in
How much extra is involved in going down the chirp route ?
Found this link to show real screen pics , and while definately nice looking , hardly night and day from a decent digital screen.
By better coverage , do you mean a wider cone angle?
http://www.raymarine.it/view/index.cfm?id=4907#sonar
If I spent half as long fishing , as I do reading this bloody forum , I'd be twice the fisherman I am.
milsey
Posts: 1462
Date Joined: 22/08/07
More like late arvo and
More like late arvo and night, Those shots look no better than my 295.
wangler
Posts: 607
Date Joined: 26/04/08
Too true
Want to make someone mad... tell a lie! Want to get the world upset... tell the TRUTH !
Dougie
snappermiles
Posts: 2100
Date Joined: 05/11/10
screen shots
personally i think the 585 and 295 read better! id have to have a better look in person but going from the screen shots i wouldnt bother with the extra expense!
ALL FISHERMEN ARE LIARS EXCEPT YOU AND ME! AND IM NOT SO SURE ABOUT YOU!
glastronomic
Posts: 892
Date Joined: 16/02/11
All up aprox. $16K for the
All up aprox. $16K for the whole system including auto pilot, Broadband Radar is an extra $2.5K
marble
Posts: 775
Date Joined: 03/09/09
those screen shots are in
those screen shots are in pretty shallow water too, maybe even fresh ???
PMY 25 Centre Console DF300 Suzuki
glastronomic
Posts: 892
Date Joined: 16/02/11
No with better coverage I
No with better coverage I mean the gap between the signal bounce.
Seeing it in real live on a boat operating is where the difference comes from.
It is interesting to read how it operates and the differences between the technology how it gets better.
Bit like points operated ignition/carburators and Multi Point Fuel systems.
snappermiles
Posts: 2100
Date Joined: 05/11/10
transducers

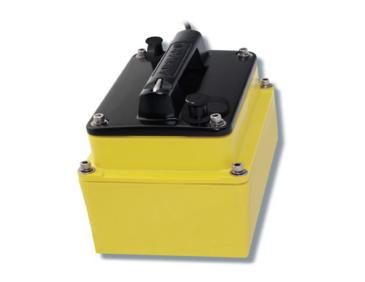

i have the thru hull ss164 which is great but the m260 has more elements and is more sensitive! the only reason i didnt go for the m260 was room they are fairly large!
ALL FISHERMEN ARE LIARS EXCEPT YOU AND ME! AND IM NOT SO SURE ABOUT YOU!
Colt_Striker
Posts: 624
Date Joined: 26/07/09
I went the through hull,
I went the through hull, brass with temp sensor in mine, no probs picking up bottom after the 100's at 25knotts & even out to 400m trolling
Vinesh87
Posts: 2751
Date Joined: 02/04/11
Chirp it through
Chirp it through hull!!
CP450C $2500+
Tranny $1500+
And let me know how you go so i can do the same with my RAY haha, Brilliant units !! What shipwright ?
And let me know if you wanna convoy for dd i am keen !
kane
Posts: 1752
Date Joined: 07/12/08
Definitely keen for that convoy mate :-)
Looks like I'm drilling the hole - thanks for all the advice, better to trust a shipwright than a salesman I reckon and most of you guys seem to have done it without any issue.... besides.... There's already holes for water intakes for live bait, toilet etc, one more wont hurt ;-)
Gooooone Fishin!
Dave.r
Posts: 4
Date Joined: 31/05/12
CP450C
Hi,
did you use the setup you listed here ?
CP450C $2500+
Tranny $1500+
where did you get these prices and did it do as well as you thought it would?
ANy suggestions appreciated
cheers
Dave
JohnF
Posts: 2836
Date Joined: 07/07/10
Drill the hole Kane.......let
Drill the hole Kane.......let me know when we ate heading out next.......
Boston Whaler 235 Conquest......getting the flogging it was built for.
Vinesh87
Posts: 2751
Date Joined: 02/04/11
Dave r no i havnt done it
Dave r no i havnt done it just thought kane should do it so i can see if its any good. Thats the way i am going to go but. Those prices are old. Whitworths has the 450 for about $1800 now
Dave.r
Posts: 4
Date Joined: 31/05/12
Cheers vines - ill check out
Cheers vines - ill check out whitworths , you reckon this combination is pretty good considering it's cost ? Obviously more money will buy more though eh
Also considering the lowrance 10 with structure scan in your opinion which would you go for
Thanks again
Dave
