Towing weight questions. (Caravan)

 Hi all

Im a little confussed on towing weights does the 2900kg axle load capacity mean anything?

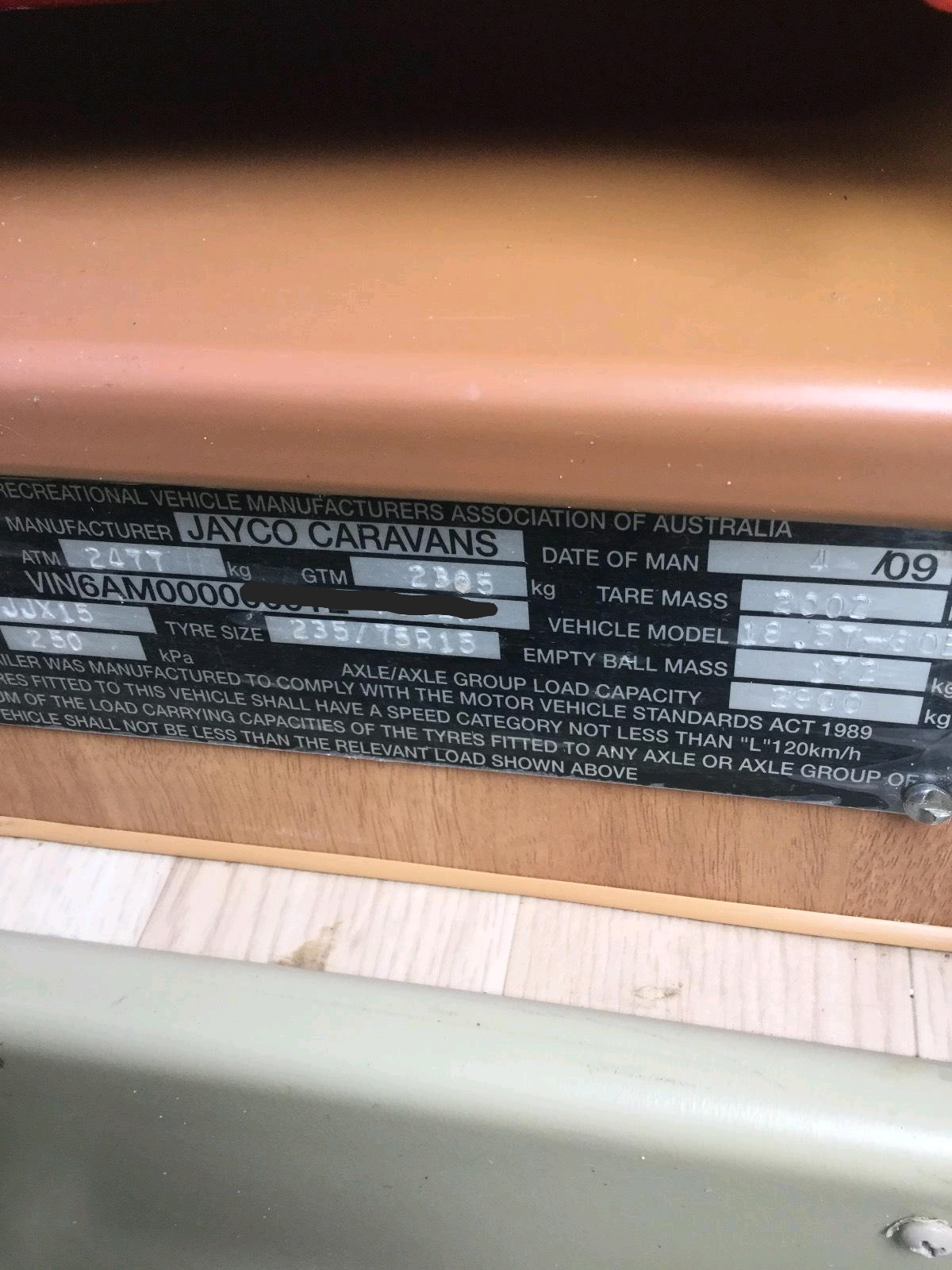

They way im reading the compliance plate you can add 475kgs to the van is this correct?

Thanks

Rod



Image Upload:

Gadsy's picture

Posts: 843

Date Joined: 01/05/10

That 2900kg figure would be from when the van was manufactured

Wed, 2017-04-19 20:02

 If water tanks have been added and other bits n pieces since, you mightn't have much room left to play with and could be overweight when the van is fully packed. Then there's the weight on the ball to consider, so even weight distribution is critical too.

There are some good websites that explain the whole ATM, GVM etc scenario, so Google is your friend there

Posts: 538

Date Joined: 27/08/09

 ATM is you max trailer

Wed, 2017-04-19 20:16

 ATM is you max trailer weight. =2477kg

Tare is your empty weight as determined at time of licencing. = 2007kg

So in theory you can carry 470kg of gear or added accesories.

The axel group may be 2900kg for load sharing/or derating reasons but you max weight is 2477kg.



Darren253's picture

Posts: 234

Date Joined: 23/07/16

You max trailer weight is

Thu, 2017-04-20 09:22

Your max trailer weight is 2477kg but 173kg of that must be on the tow ball hitch/car.

The GTM (Max weight through the wheels/tyres) when connected to the car is 2305kg.

roddo's picture

Posts: 373

Date Joined: 16/10/09

 Excellent thanks thats how i

Wed, 2017-04-19 20:39

 Excellent thanks thats how i thought it was.

randall df223's picture

Posts: 6220

Date Joined: 08/08/11

 If you live close to

Thu, 2017-04-20 08:34

 If you live close to mindarie regional tip, for a small fee you can put it on the weigh bridge.

____________________________________________________________________________

Proud Founder and Acting Vice President of the Chris Masten Fan Club.

Jackfrost80's picture

Posts: 3781

Date Joined: 07/05/12

Same with Balcatta tip

Thu, 2017-04-20 09:04

Same with Balcatta tip
