Trailer rebuilds etc-pics added
Its been the elephant in the room so to speak as regards my trailer, in that with the ADR's requiring a 120% capacity with non load sharing suspension, i couldnt get my trailer over the line for more than 2000kg rating.

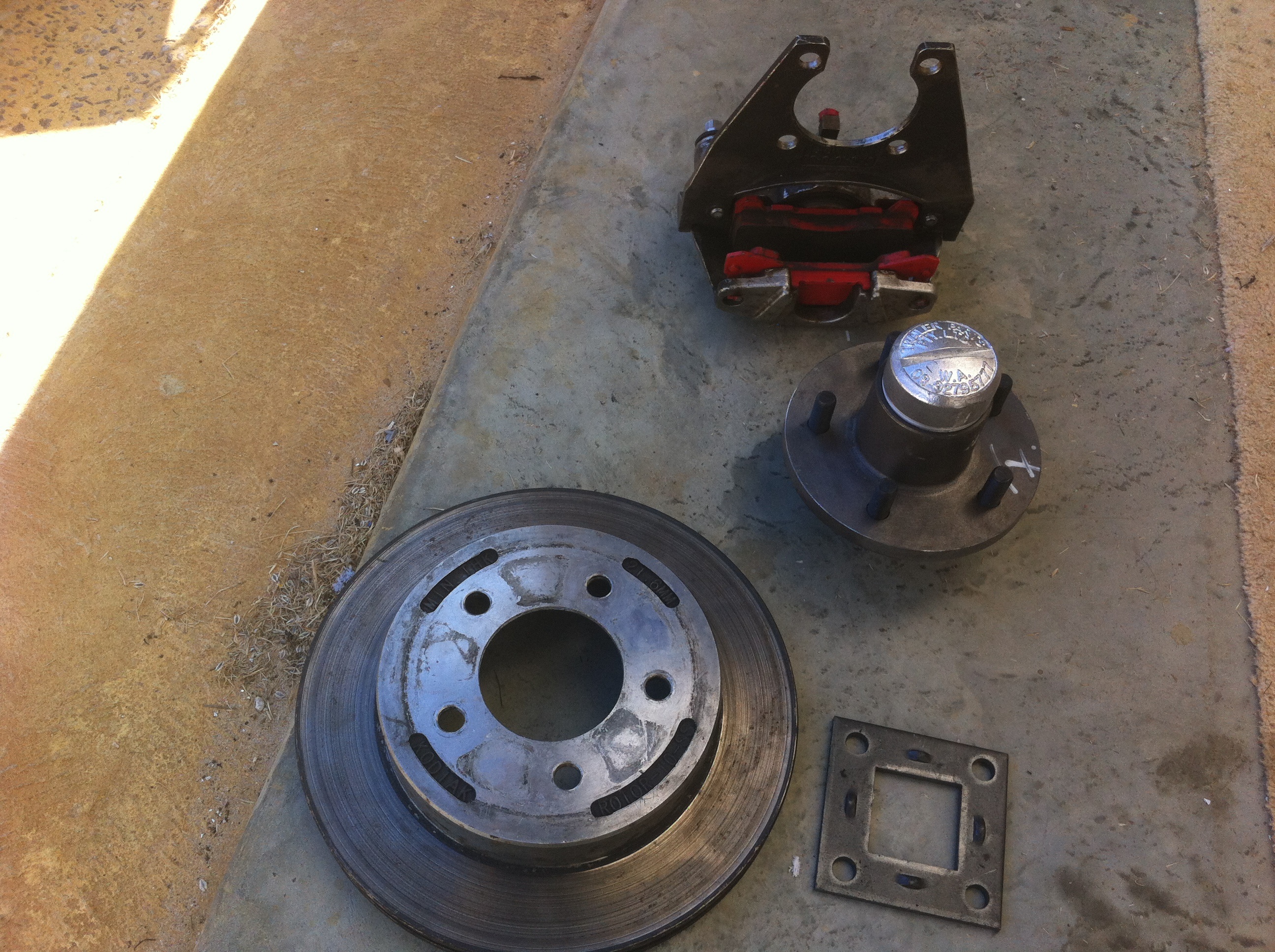

The frame is in really good nick, so Ive been gathering up the bits to address this for a while, scored used Kodiak SS disc/calipers and Dexter unit.

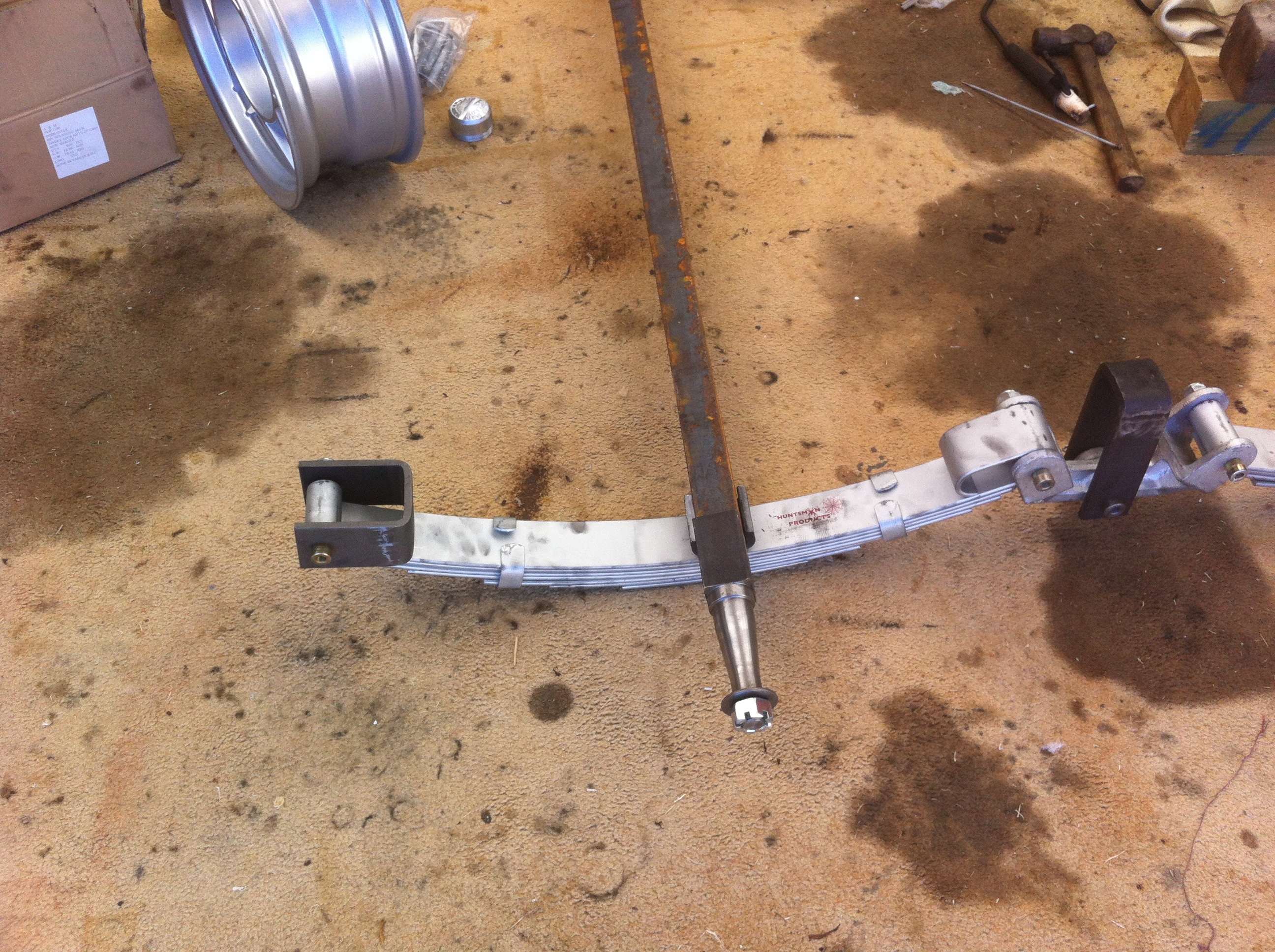

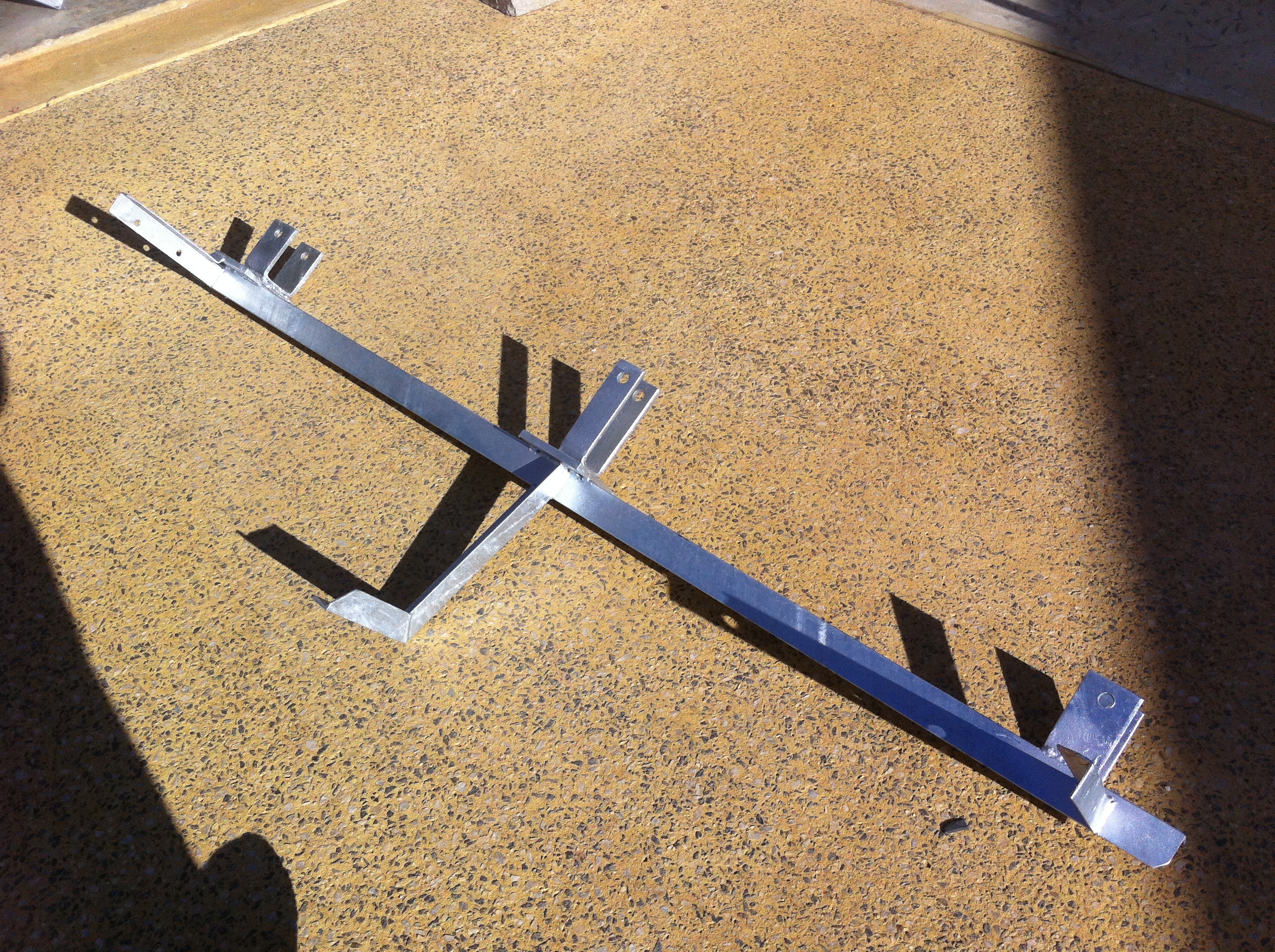

I attacked the frames a couple of weeks back and sent them off for galvanising.

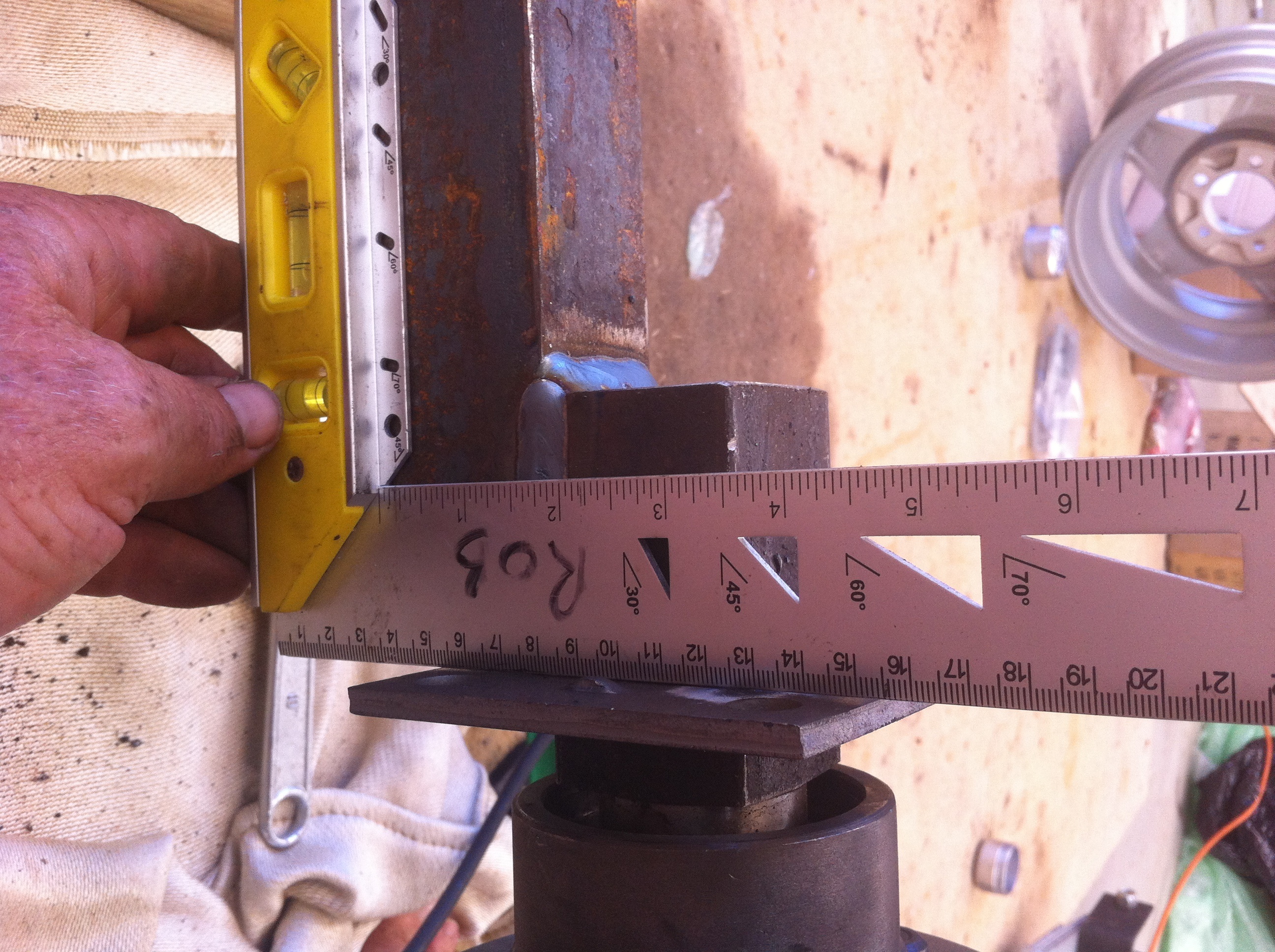

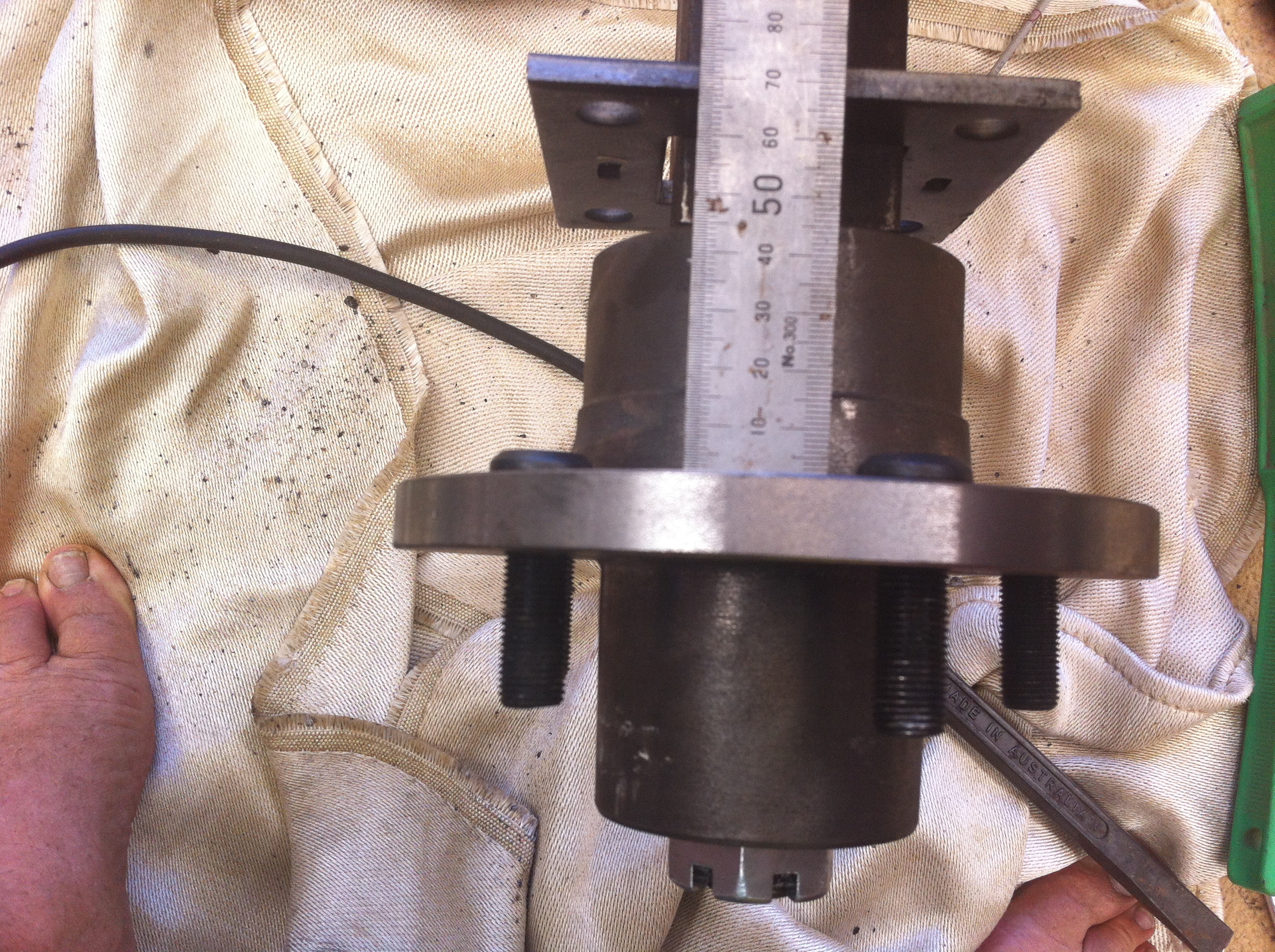

Setting up the brake flanges in the correct position and welding them on

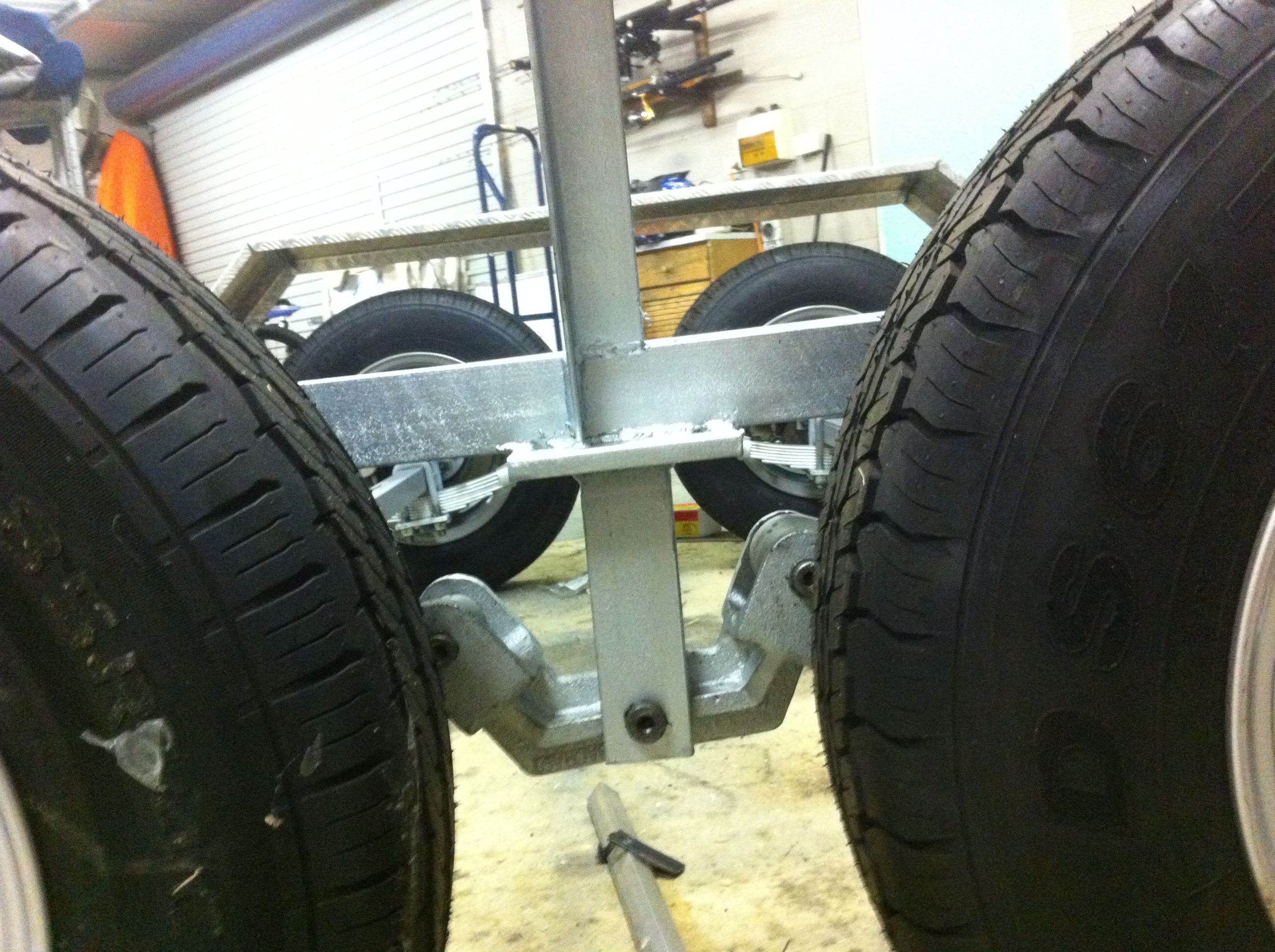

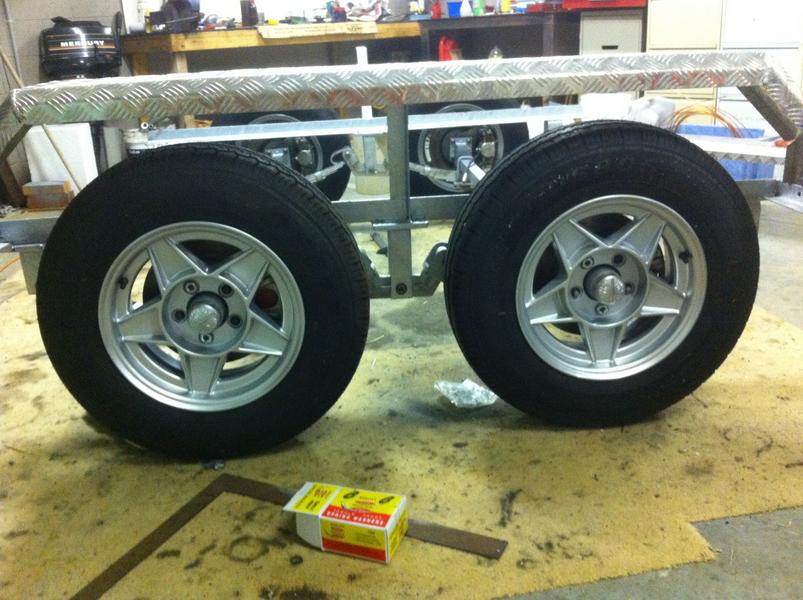

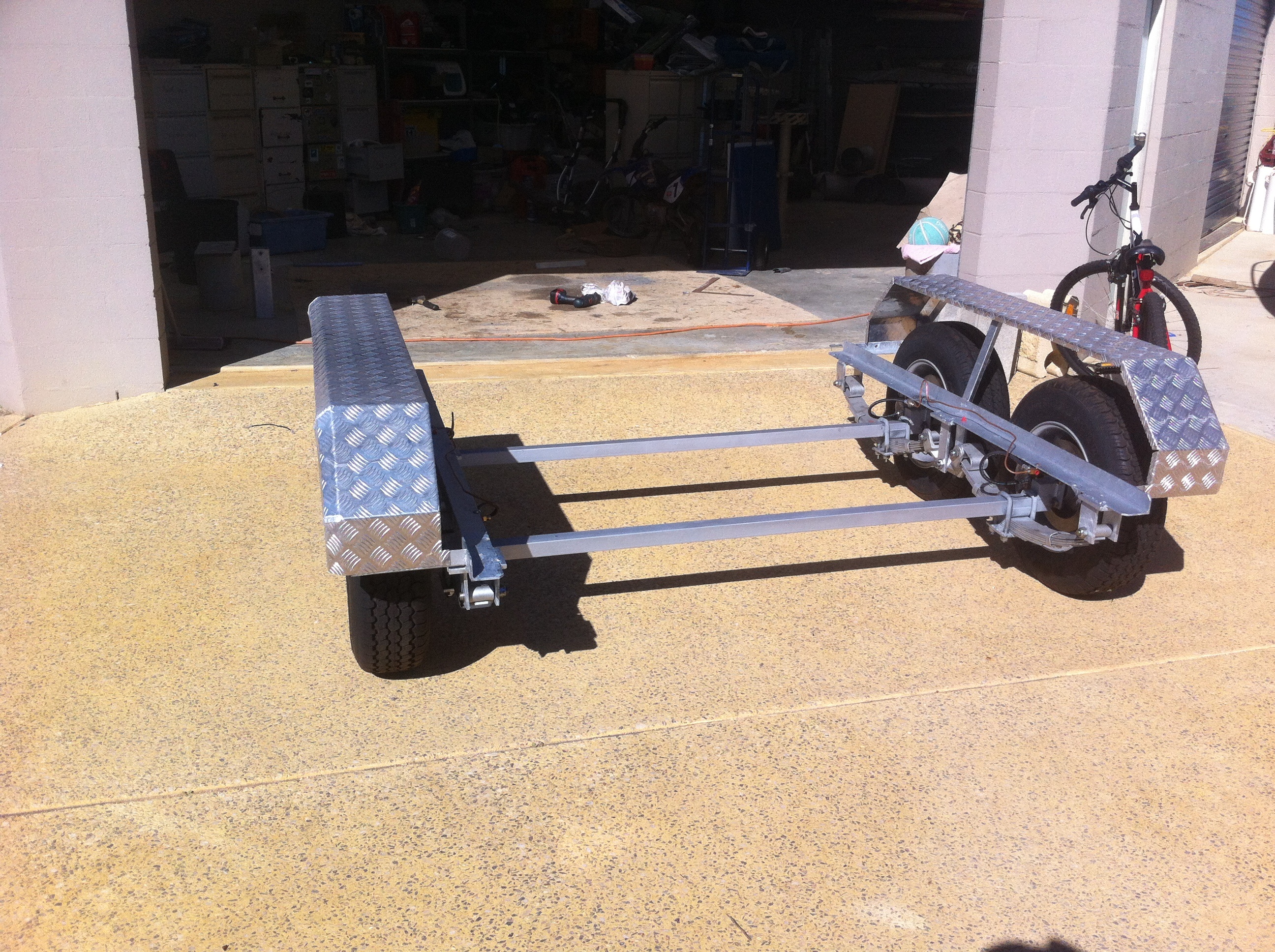

Having got them back its all assembled into a rolling subframe.
Off to Melbourne tonite for a couple of days and when i get back I'll drop the boat in the water, remove the old suspension and slide this under, u bolts, drop on the Dexter EOH unit and relicence it at 3000kg.
note-if you intend to give me a lecture, then dont bother commenting. If you want more detail then feel free to ask! Constructive comments more than welcome though
Give a man a mask, and he'll show you his true face...
The older you get the more you realize that no one has a f++king clue what they're doing.
Everyone's just winging it.
Vinesh87
Posts: 2751
Date Joined: 02/04/11
Looks good!! Just put the

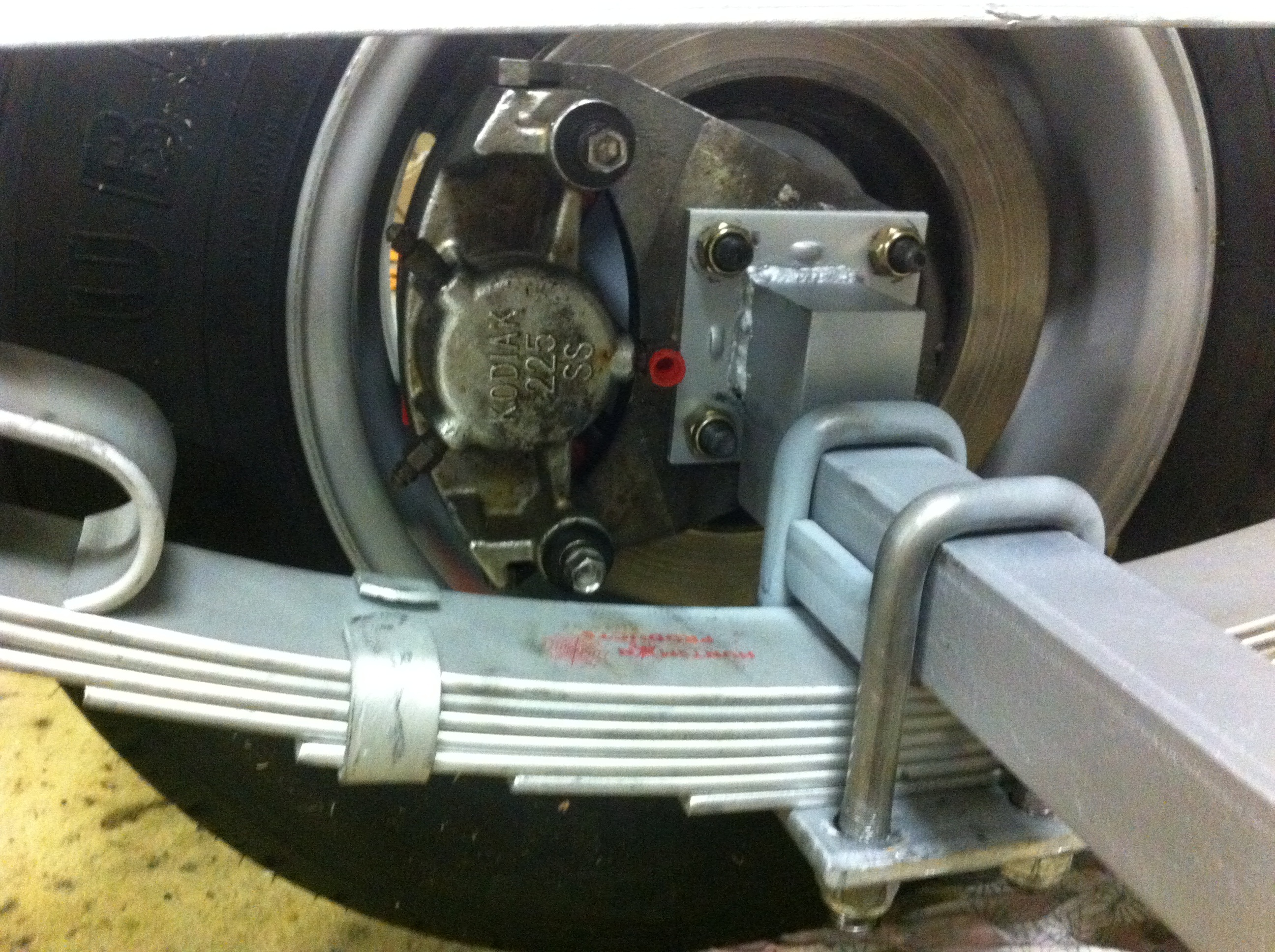

Looks good!! Just put the stainless kodiaks on my trailer, Theyre great so far!
mullows
Posts: 738
Date Joined: 25/12/08
Where did you source your
Where did you source your calipers from Vin? Just about to put the order through from the states myself for a full set.
cheers
Mullows
The Older I get the better I was :-)
marble
Posts: 778
Date Joined: 03/09/09
I get bits for ours when I
I get bits for ours when I need them from this mob
http://www.titanbrakes.com.au/home.php
PMY 25 Centre Console DF300 Suzuki
Muppet
Posts: 408
Date Joined: 23/11/09
looks the goods
ps. dont be so defensive. if people pay out on you, probably because their jealous !
.
marble
Posts: 778
Date Joined: 03/09/09
don't forget the rest of the
don't forget the rest of the wheel nuts ;-)
PMY 25 Centre Console DF300 Suzuki
Rob H
Posts: 5806
Date Joined: 18/01/12
jeez another fking lecture
jeez another fking lecture
yeah theyre on but points for observation!
Defensive-na but seen how some of the threads have gone on this subject (towing overweight) and some others I have posted, better to warn them off first! We mostly know who the irritants are anyhow....
Give a man a mask, and he'll show you his true face...
The older you get the more you realize that no one has a f++king clue what they're doing.
Everyone's just winging it.
till
Posts: 9358
Date Joined: 21/02/08
Bwahaha!
Bwahaha!
till
Posts: 9358
Date Joined: 21/02/08
Looks good - good luck
Looks good - good luck getting past the pits though. They told me to change my brake hoses the other day, sigh.
Rob H
Posts: 5806
Date Joined: 18/01/12
why?
why?
Give a man a mask, and he'll show you his true face...
The older you get the more you realize that no one has a f++king clue what they're doing.
Everyone's just winging it.
till
Posts: 9358
Date Joined: 21/02/08
They had the US and UK
They had the US and UK standards on them, just not the Aus ones.
Oh I mean because they were pedants.
Vinesh87
Posts: 2751
Date Joined: 02/04/11
I got mine over with steel
I got mine over with steel lines. Depends who you get on the day I suppose.
Rob H
Posts: 5806
Date Joined: 18/01/12
I know with the couplings
I know with the couplings (from memory) if they have a "D rating" on them then they comply with Aus-did you check whether yours were rated Til? Dont rely on the bloke who may not know even though he should...
Copper lines-were supplied by Martins and I didnt notice. But I did ask Hose Express about whether the copper was suitable for a 1600psi system and he said yes but usually its bundy tubing used.
Give a man a mask, and he'll show you his true face...
The older you get the more you realize that no one has a f++king clue what they're doing.
Everyone's just winging it.
till
Posts: 9358
Date Joined: 21/02/08
I had to change couplings, I
I had to change couplings, I will try and get it over the pits as-is, but if it fails will do copper.
petermac
Posts: 2946
Date Joined: 03/03/10
these posts
these are the best posts even old dogs like me learn stuff from posts like this the best 1 have seen but is the "my boat build so far" love those project type of posts
out wide
Posts: 1535
Date Joined: 30/12/08
No chance of that being licenced
ha ha just having a stir Rob looks very well buit to me well done
sea-kem
Posts: 15020
Date Joined: 30/11/09
Yep good job there Rob. Glad
Yep good job there Rob. Glad to see you galvanised all and didn't do a half job and paint. It's the only way to go. Looks like someone knows how to weld ;)
Love the West!
JohnF
Posts: 2838
Date Joined: 07/07/10
Nice one Rob. Especially like
Nice one Rob. Especially like the old skool mags, do you have a matching set for the Torana tow car......haha, great work mate.
I gotta pull my callipers off and check how rusty they are after a few months......is it worth putting heaps of rubber grease behind the rubber seal on the piston to stop it rusting???? I guess S/S is best but will wait fir these to crap themselves first.
Boston Whaler 235 Conquest......getting the flogging it was built for.
Rob H
Posts: 5806
Date Joined: 18/01/12
Na they dont really match
Na they dont really match these wheels! In Streaky Bay atthe moment driving this back home
Give a man a mask, and he'll show you his true face...
The older you get the more you realize that no one has a f++king clue what they're doing.
Everyone's just winging it.
Adam Gallash
Posts: 15648
Date Joined: 29/11/05
mmm
Obviously paying you guys way too much money, better start looking after the onshore boys a bit more!
Site Admin - Just ask if you need assistance
mullows
Posts: 738
Date Joined: 25/12/08
My non SS set lasted about 2
My non SS set lasted about 2 years so you might have that long John, maybe more. I took one off to have a look and it was very easy.
Well done on the trailer build Rob, looks the goods. Only negative feedback I have though is they are some fugly feet man :-)
Cheers
Mullows
The Older I get the better I was :-)
Rob H
Posts: 5806
Date Joined: 18/01/12
nothing wrong with my feet,
nothing wrong with my feet, they've kept my ass off the grass for nearly half a century!
Give a man a mask, and he'll show you his true face...
The older you get the more you realize that no one has a f++king clue what they're doing.
Everyone's just winging it.
mullows
Posts: 738
Date Joined: 25/12/08
Haha mate, only stirring....I
Haha mate, only stirring....I have a rough head and rough feet. Mate the trailer and rig look awesome, outstanding effort.
Cheers
Mullows
The Older I get the better I was :-)
marble
Posts: 778
Date Joined: 03/09/09
4 years from dacromet plated
4 years from dacromet plated Kodiak rotors and calipers. The rotors are pretty much figged now but the callipers still good.
PMY 25 Centre Console DF300 Suzuki
mullows
Posts: 738
Date Joined: 25/12/08
Yeah I am probably being
Yeah I am probably being harsh. Some of the parts are still good and could change out the other parts but to be honest for the mucking around and the cost of those parts, it is easier for me to do the whole thing for not much extra coin.
Cheers
Mullows
The Older I get the better I was :-)
fisho-ron
Posts: 2539
Date Joined: 26/09/09
nice work mate, should be
nice work mate, should be sweet.
the rocker rollers are a decent suspension mate, much better than the old 45mm wide rockers.
cheers ron
fisho-ron
Posts: 2539
Date Joined: 26/09/09
also mate, watch them screw
also mate, watch them screw on dust caps, we had many come off when I was in the game.
we used to chisel punch the end to stop them coming undone, maybe some lock tight might work
Rob H
Posts: 5806
Date Joined: 18/01/12
Thanks Ron, yeah ive already
Thanks Ron, yeah ive already seen why. The washer between the bearing and nut only just fits inside the cap and actually touched it on a couple. Cos one spins and one doesnt, it can loosen it.
Calipers-shouldnt need SS ones but they were a package.
Give a man a mask, and he'll show you his true face...
The older you get the more you realize that no one has a f++king clue what they're doing.
Everyone's just winging it.
Rob H
Posts: 5806
Date Joined: 18/01/12
update to trailer
final instalment
After getting back from Melbourne, I had 4 days between dropping off the boat til flying out Thursday to complete it.
I was lucky enough to bump into one of those characters who has the ability to help a stranger despite personal adversity-Peters boat had unfortunately sunk in his pen the day before.
A chance meeting at the harbor saw him offer me his pen to park the boat without hesitation-a legend and a gentleman.
So-boat off and into the water, trailer home and just 3 hours saw old undercarriage off and new rolled under and bolted up-perfect fit!
That was the easy part-draw bar needed to modified, Dexter unit and breakaway fitted, lights rewired and new larger plug fitted then over the pits. Needed mudflaps and in the rush Id forgotten to weld the axle locators plus the Toyota had the brakelight wire wrong in the plug-factory fitted??
I also took to opportunity to modify the winch post in light of another members recent incident-Ive never liked the flat bar brace on the front of most winch posts, great in tension, hopeless in compression. This will be galvanized together with drawbar later.
looks like the tires are soft in this pic for some reason? Towed beautifully, onto the weighbridge again for 2650kg on the axles and 150-200 on the towball
Time was running out (6pm flight) and I got it passed at 3pm, down to ramp, bring boat round only to get a call that it was subject to a audit and I needed to detail the brakes used etc. Home, park it up with a flush, pack bags in 30 minutes and straight to the airport with 5 minutes to spare
Only thing left is to get the drawbar and post galvanized.
Give a man a mask, and he'll show you his true face...
The older you get the more you realize that no one has a f++king clue what they're doing.
Everyone's just winging it.
big john
Posts: 8756
Date Joined: 20/07/06
Plan
Gotta love it when a plan comes together Rob.
WA based manufacturer and supplier of premium leadhead jigs, fligs, bucktail jigs, 'bulletproof' soft plastic jig heads and XOS bullet jig heads.
Jigs available online in my web store!
sea-kem
Posts: 15020
Date Joined: 30/11/09
just need to turn the amps
just need to turn the amps up slightly on your welder rob ;) Good job on the trailer
Love the West!
Rob H
Posts: 5806
Date Joined: 18/01/12
maxed out on the old cheapie
maxed out on the old cheapie transformer type unfortunately.
Gotta find a used inverter at the right price!
Give a man a mask, and he'll show you his true face...
The older you get the more you realize that no one has a f++king clue what they're doing.
Everyone's just winging it.
sea-kem
Posts: 15020
Date Joined: 30/11/09
They're pretty cheap new now
They're pretty cheap new now Rob. Look for the 130amp Uniweld. I think I paid about $450 new.
Love the West!
grantarctic1
Posts: 2546
Date Joined: 03/03/11
Looks good
Looks good Rob , I always add more steel to that part off the winch post too. Have seen many of them fail under load or as a result of corrosion.
JohnF
Posts: 2838
Date Joined: 07/07/10
Great stuff Rob. I am heading
Great stuff Rob. I am heading off to the shed now to have a crack at PM on my calipers........
Boston Whaler 235 Conquest......getting the flogging it was built for.
Rob H
Posts: 5806
Date Joined: 18/01/12
thanks John-if I was you Id
thanks John-if I was you Id coat them with something like fish oil or maybe CRC urethane seal coat or that stuff for coating machined parts, but its probably the discs that go first.
But I found with the old trailcraft trailer and cast iron brakes, that a good freshwater hose straight after retrieve and 2 years, still no problem with the rotors
Give a man a mask, and he'll show you his true face...
The older you get the more you realize that no one has a f++king clue what they're doing.
Everyone's just winging it.
outdoinit
Posts: 1009
Date Joined: 05/10/12
Top job on the Trailer there Rob
Now that all that is out the way, leave more time for the Abrolhos now.. ;-)
I've spent half my life fishing.. The other half I have wasted..
Rob H
Posts: 5806
Date Joined: 18/01/12
Thanks Lyndon
stuck at sea now for another 25 days yet
But home about 19th July and the kids have another week of holidays so weather dependant its either out to the islands, up to Shark Bay and over to the west side for as long as we can or maybe up to Coral Bay.
If the weather doesnt play the game then could do a camping trip up to Murchison House Station or False Entrance with the kids
My lads are getting withdrawals as they havent been for a long trip since Easter
Too much time to plan this stuff while Im away!
Give a man a mask, and he'll show you his true face...
The older you get the more you realize that no one has a f++king clue what they're doing.
Everyone's just winging it.
josh9787
Posts: 2
Date Joined: 23/02/13
very ncie work indeed :)
very ncie work indeed :)
