Transom overhang
Submitted by Fletch72 on Mon, 2014-05-19 16:54

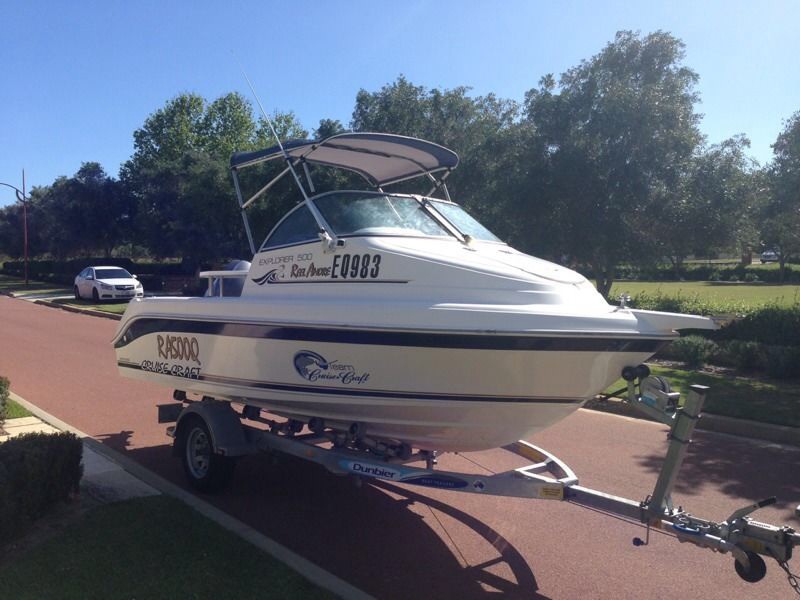

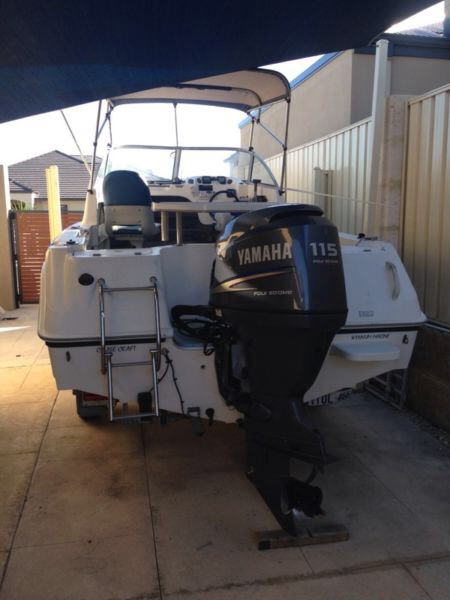

Can someone offer me some advice please, ive been told that on a glass hull this is over hung too much.
Not being an expert on this stuff i thought id throw it to you fishers.
____________________________________________________________________________
.
Image Upload:
dodgy
Posts: 4563
Date Joined: 01/02/10
Need to see from a different
Need to see from a different angle to really know.
Does anyone know where the love of god goes, when the waves turn the minutes to hours?
Fletch72
Posts: 31
Date Joined: 09/08/12
Dodgy
The seller tells me that it over hangs by 200mm, i didnt notice it myself when i looked at the boat TBH but I know next to feck all, i worry that the lights and reg plate are hard to see also.
.
piston broke
Posts: 776
Date Joined: 05/11/08
Is there room
for the winch post to move forward?
Fletch72
Posts: 31
Date Joined: 09/08/12
Yes but not much im not sure
Yes but not much im not sure there is 200mm there, but then that would alter the downward force on the tow ball.
ive also just been reading about over time it can put a hook in the hull.
I might pack in looking for a used boat its all getting a bit to much hassle.
.
fishcrazy
Posts: 1235
Date Joined: 27/01/07
winch post
You would have to modify that winch post to get your 200 mm .that post does look weak designwise anyway cheers craig
EricBananaMan
Posts: 176
Date Joined: 18/08/13
I bought a new trailer in
I bought a new trailer in Perth last august and towed it back to Dampier without the boat. The bloke at the trailer shop told me to have the transom about 4 inches past the last roller on the trailer.
Paully
Posts: 3246
Date Joined: 15/08/09
looking at the first photo
it does look like it's sitting to far to the rear, not that I'm an expert by any means. Might pay too check the Vehicle standard regulations. My concern, looking at that would be the boat being more likely to move/shifton the trailer.
carnarvonite
Posts: 8627
Date Joined: 24/07/07
Swap
Swap positions of the jockey wheel and winch post, should give you more than enough length to pull the boat forward and to counteract the added weight on the tow bar move the axle assembly forward about the same measurement
Swompa
Posts: 3786
Date Joined: 14/10/12
I purchased a hull that was
I purchased a hull that was on the wrong trailer. The back end had 20mm of sag in it from 500mm in.
eziliving
Posts: 865
Date Joined: 30/12/09
From the photos attached I
From the photos attached I reckon the trailer looks to small for the boat. Carnarvonite idea sounds the best to me if it is the right trailer.
Get busy living, or get busy dying!
dodgy
Posts: 4563
Date Joined: 01/02/10
Plus the winch needs to be
Plus the winch needs to be lower on the post. Seems like the trailer hasn't been set up too well at all.
Does anyone know where the love of god goes, when the waves turn the minutes to hours?
tim-o
Posts: 4657
Date Joined: 24/05/11
Too much overhang
Me thinks trailer is too small
. Need to move the boat forward! The end roller needs to be under the transom for support! Shuffling the winch bar forward aswell as moving the winch down (needs to go down anyhow) will enable this, dont think I have seen a jockey wheel behind the winch bar tho. Will likely need to adjust the rollers heights too. And as carn says, need to move axle to achieve correct drawbar weight. Id be checking the trailer compliance plate and make sure the boat (weight) complys first then consult a trailer specialist to set it up if it is suitable
I am, as I've said, merely competent. But in an age of incompetence, that makes me extraordinary.
Fletch72
Posts: 31
Date Joined: 09/08/12
Thank for all your input,
Thank for all your input, think ill give this one a miss as the bloke was adamant anyone who said it was hung over too much didnt know jack about boats, also recons the trailer cost him 16k last year which says a lot.
i know hes towed it to exmouth on this trailer which could have given the hull a hook.
.
eziliving
Posts: 865
Date Joined: 30/12/09
If his trailer cost him $16k
If his trailer cost him $16k I am dreading what mine is going to cost for my 8mtr boat. Actually if if he paid $16k for it ask if there is anything else he needs to buy in the near future. We could be onto a quick buck here!
Get busy living, or get busy dying!
Vinesh87
Posts: 2751
Date Joined: 02/04/11
16k for the trailer haha tell
16k for the trailer haha tell him he is dreaaming!
maybe 6k or he got really ripped off.
http://www.fremantletrailers.com.au/Dunbier9026
+ 1 for all the above comments but !
grantarctic1
Posts: 2546
Date Joined: 03/03/11
Wow
Wow, i'm suprised they claim its suited up to 5.5m alloy or glass. I must be old fashioned and would want something bigger and stronger so i don't have any future problems.
Tim
Posts: 2497
Date Joined: 26/09/06
Standard
Looks like that trailer is pretty much standard for that boat
http://www.boatsales.com.au/boats-for-sale/boatdetails.aspx?seot=1&R=23825267&silo=-1&__Ns=pCar_RankSort_Int32%7c1%7c%7cpCar_Price_Decimal%7c1%7c%7cpCar_Make_String%7c0%7c%7cpCar_Model_String%7c0&Cr=&trecs=6&__N=1456%20285%204294911145%204294898952
http://www.wynnummarine.com.au/used_boats/
Definitely looks like it could move forward on the trailer. The other pics show the tip of the bow sprit over the hitch.
grantarctic1
Posts: 2546
Date Joined: 03/03/11
Looks
Looks like it, I suppose they like to get away with the bare minimum at the point of sale. It still looks too small for my standards and i wouldnt be happy towing it for long distance trips.
And i agree the set up has been poorly done .
sea-kem
Posts: 14857
Date Joined: 30/11/09
16k whaaaaatttt lol
16k whaaaaatttt lol
Love the West!
Fletch72
Posts: 31
Date Joined: 09/08/12
Exactly my thoughts.
Exactly my thoughts.
.
tim-o
Posts: 4657
Date Joined: 24/05/11
Well, guess you just ruined
Well, guess you just ruined his chances of any fishwreckers buyin it haha
I am, as I've said, merely competent. But in an age of incompetence, that makes me extraordinary.
jarrid
Posts: 363
Date Joined: 20/08/10
That's not a $16k trailer
That's not a $16k trailer
EricBananaMan
Posts: 176
Date Joined: 18/08/13
$16k?
My dual axel trailer cost $5k new and it has a 5.5m glass boat that lives on it. Tell him he is a knob.
grantarctic1
Posts: 2546
Date Joined: 03/03/11
Too small
That trailer looks way too small for that boat. I would say the old owner skimped out on the 16k one, and bought that one instead.
As others have said, the winch is up too high and the whole set up just looks wrong. Wouldn't suprise me if it is not even rated for the weight of your boat.
IMO, if you moved it forward, you would put too much weight on that main I beam and risk bending it.
I would be looking at a trade in on a tandem trailer that suits the rig better.
scubafish
Posts: 949
Date Joined: 15/08/12
Too small
http://img.gg/BQ91Sys
AaronC
Posts: 118
Date Joined: 26/10/11
Not Legal
I got pulled over last year by the fuzz and was informed that the last part of the boat (ie motor) was not to be more than 150cm from the most furtherest part back of the trailer. mine sat 153cm trimed up. So i promptly trimmed it down a smidge and told him to have a nice day and go find a real criminal.
Good point though there is no way this would pass period. even if you moved it forward on the trailer. Move on and find a new boat. if he is telling you lies about the trailer cost he is probably bullshitting about everything else.
bushbeaver
Posts: 159
Date Joined: 08/07/13
There should be a model
There should be a model number on the lower right hand side of the Dunbier manufacturer's plate, which denotes the boat size which the trailer is intended for. That looks like a Dunbier 'Supa Rolla" series trailer, possibly the 4.7m version, as it does appear to be small in the pictures. Anyhow, compare the trailer's model number to one of these: http://www.dunbier.com/trailers/trailers-for-fiberglass-boats/supa-rolla-series/ to be sure. A quick Google puts the price of the SR5.0M-13B, which should be the right size for a 5m boat, at $3998 to $4775.
crasny1
Posts: 6986
Date Joined: 16/10/08
As above
Something about that winch setup is just all wrong. Cant see everthing but it would certainly move the boat forward by lowering the position, but also (and tell me Im a dill if wrong) I wonder if the whole setup has been placed upside down. Maybe the bloke changed it because he is certain handed etc. It just looks very odd.
"I would like to die on Mars. Just not on impact!!" _ Elon Musk
Cruise Control
Posts: 971
Date Joined: 03/11/10
To me the winch is too high
To me the winch is too high on the post. It is actually trying to lift the boat up off the trailer. It seems that what he needs to do is drop the winch on the post to a point where the winch strap is coming onto the winch level with the hook on the hull. That would result in the yoke coming away from the hull which would then give some room to move the boat forward on the trailer. This would also place the weight of the boat lower on the post and therefore reduce the fulcrum point of leverage.
Fletch72
Posts: 31
Date Joined: 09/08/12
Greatfull for your help
I'm giving this one a miss if he can shit about the cost of the trailer god knows what else he is shitting about, I think ill save my money for now and stick a sounder on the jet ski and invest in some 5mm scuba gear to keep me warm.
All the helpful comments have save me a packet, cheers lads
.
Jutty
Posts: 53
Date Joined: 17/01/12
.
One of the pics in the gumtree ad looks like the winch is at the correct height and boat sitting forward on trailer
