anyone know what these boat electronics are?
Submitted by Bill Chaser on Fri, 2011-06-17 16:36
Ive just bought a new boat and am a bit confused as to what a couple of the electronics are....

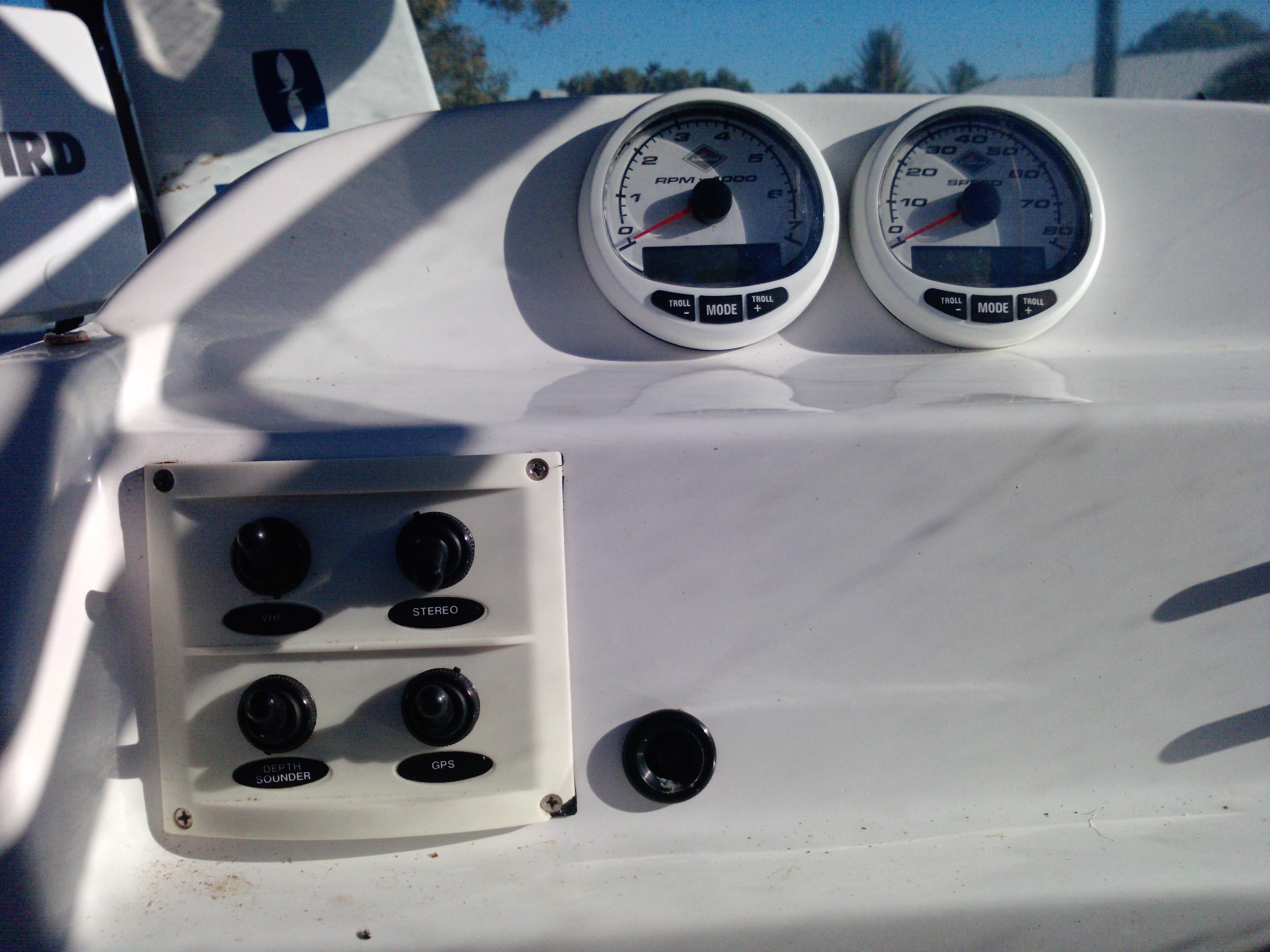

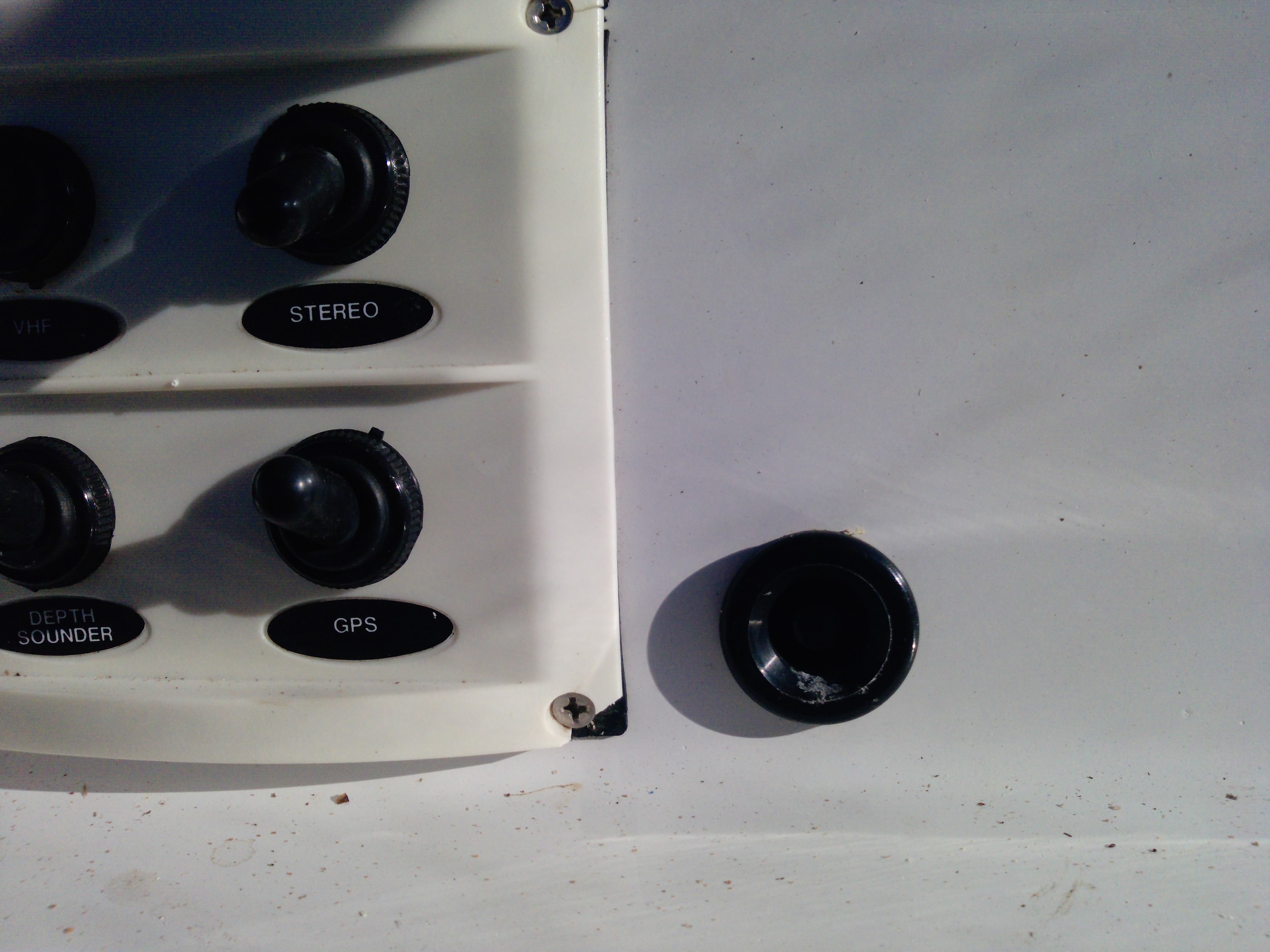

PIC A+B: Im not sure what the small black plug like hole is in next to the switches...? it looks kind of like a cig lighter but it has a solid plastic column in the middle of it? Ive had a look at the cable behind it and it looks as though it has a fuse in the line if that helps?

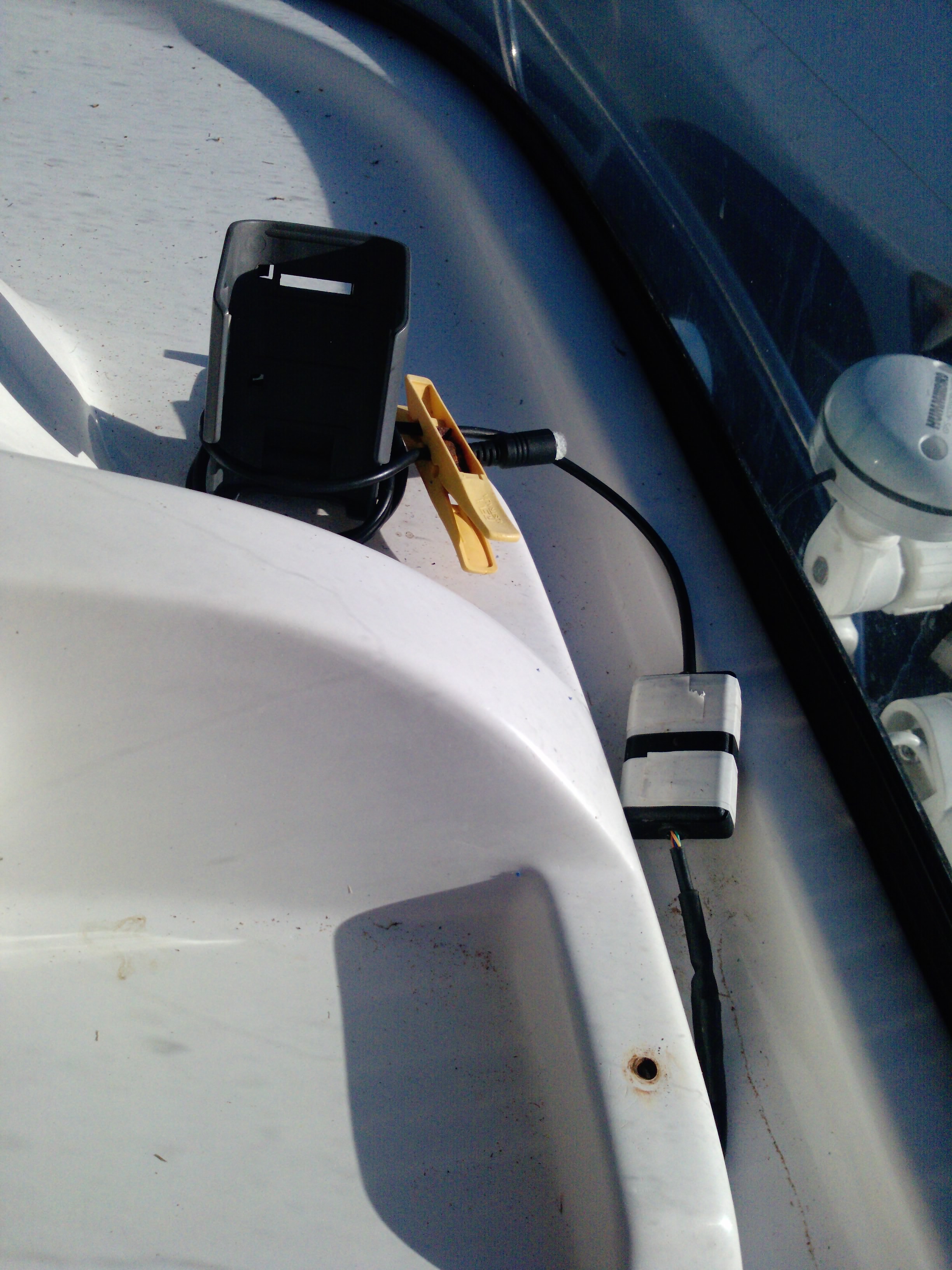

PIC C: Not what this cradle is for? It looks like a GPS cradle with a lead that is meant to plug into something, but the boat already has a good humminbird and a furuno sounder on it.
Any ideas?? thanks in advance- I know its probably something pretty obvious but its got me stumped
thanks in advance!
Image Upload:
Paul N
Posts: 494
Date Joined: 09/11/06
pic c
yes it is a gps cradle for a hand held gps. I have the same one myself . The cable and box is the 12 volt adaptor cable for it but the gps is also battery operated
Bill Chaser
Posts: 14
Date Joined: 18/05/10
Thanks for that Paul, that
Thanks for that Paul, that solves one mystery....
anyone have any ideas on the other one?
Feral
Posts: 1508
Date Joined: 01/11/06
usually the black plug is
usually the black plug is used to power a hand held spot light .. but without a great picture its hard to tell .. usually it has 2 pins - low voltage connector
Bill Chaser
Posts: 14
Date Joined: 18/05/10
Thats what I orginally
Thats what I orginally thought... but theres no pins or metal contact points or anything on it...
I guess the best way to describe it is that it looks like a film cannister (but smaller in diameter) with one solid black plastic tube in the center of it thats about the the width of a bic biro but black in colour....
Will try and get a better pic of it tomorrow in the sunlight
alfred
Posts: 3097
Date Joined: 12/01/07
The small black hole with the
The small black hole with the plastic dowel inside is an air temperature sensor.
I suspect you have a Merc on the transom. Smartcraft gauges have a barometer in them.
snappermiles
Posts: 2102
Date Joined: 05/11/10
pic a & b
looks like a fuse holder to me its just missing the fuse and the screw on top piece, is there wires conected to the back of it and where do they go??
ALL FISHERMEN ARE LIARS EXCEPT YOU AND ME! AND IM NOT SO SURE ABOUT YOU!
Bill Chaser
Posts: 14
Date Joined: 18/05/10
thanks alfred
thanks alfred
yep, merc with smart guages so it must be the air temp sensor.
snapper- there is wires connected to it- one to the battery bar and the other goes somewhere up near the guages, so it makes sense that its the temp sensor
cheers for that guys
