Just realised what that's for
Submitted by Anonymous on Mon, 2015-02-09 20:38

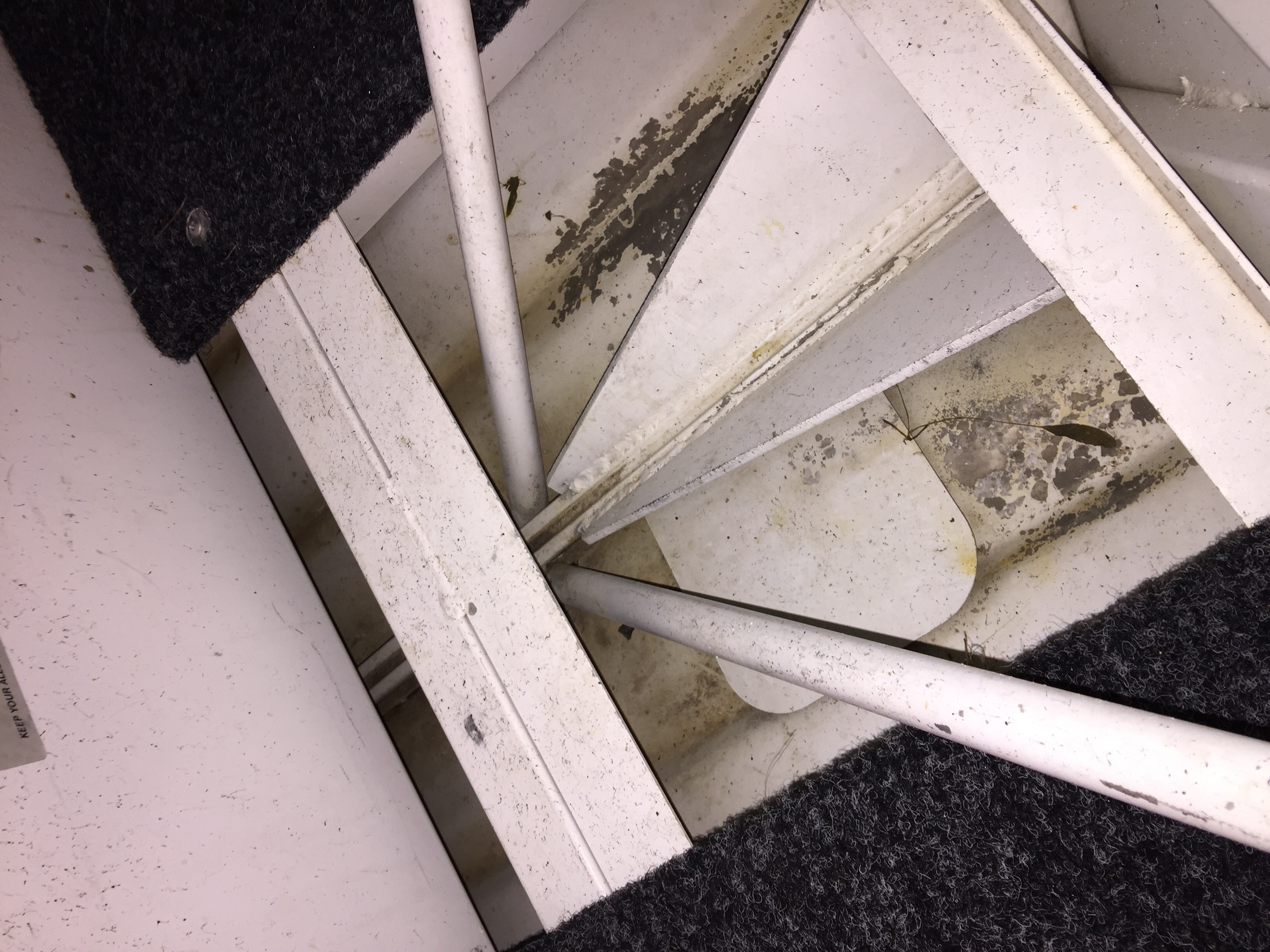

just purchased a rule 2000gph bilge pump for my boat & just realised what the plate between the hull & transom support is for. To mount your bilge pump! Now to bring myself to drill the hole for the outlet...
Image Upload:
opsrey
Posts: 1200
Date Joined: 05/10/07
Drill the hole nice and high.
above waterline will bet just fine for a bilge hole.
Anyfishwilldo (not verified)
Posts: 16
Date Joined: 01/01/70
Cheers mate will do
Cheers mate will do
Paul H
Posts: 2104
Date Joined: 18/01/07
Idealy want to put a riser in
Idealy want to put a riser in the hose as well - that is take the hose above the outlet around 3" and then come back down to the outlet (upside down U in hose) that should prevent any reverse siphoning.
Youtube Channel - FishOnLine Productions
https://www.youtube.com/channel/UCbUVNa-ViyGm_FTDSv4Nqzg/videos
ranmar850
Posts: 2702
Date Joined: 12/08/12
Make the outlet nice and high
Make the outlet nice and high and you won't need to worry about siphoning. Any bilge pump will easily lift to just below rail height. Run it out the same side as you drive from so you can see when it stops pumping, rather than backwards out the transom. It can't siphon if it isn't underwater.
randall df223
Posts: 6454
Date Joined: 08/08/11
If you are putting a float
If you are putting a float switch in, make sure you wire it up so the automatic switch doesn't run through the isolator switch. you want the float to work even if the battery is isolated (ie when the boat is at mooring with no one on board).
