Lead Kiln ( Home made )
Submitted by grantarctic1 on Wed, 2012-02-01 16:16
Hi crew, i had an old compressor tank and finaly worked out what to use it for.

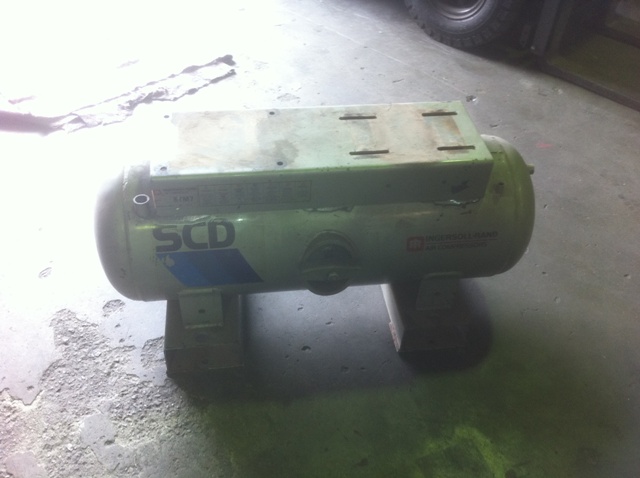

The tank.

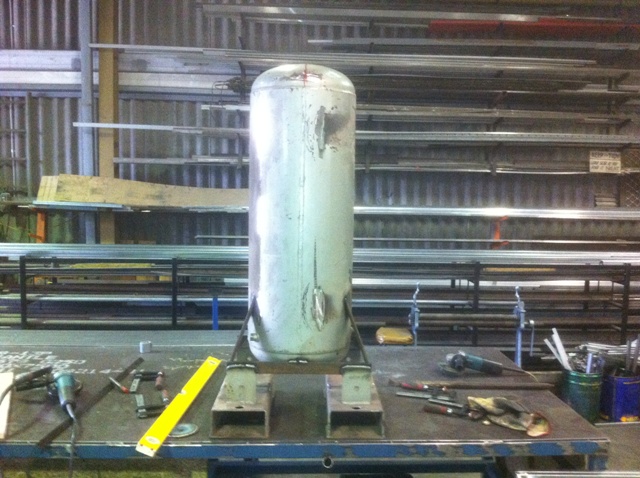

I cut of the all the exrta bits and reused the skid's for the feet of the kiln.

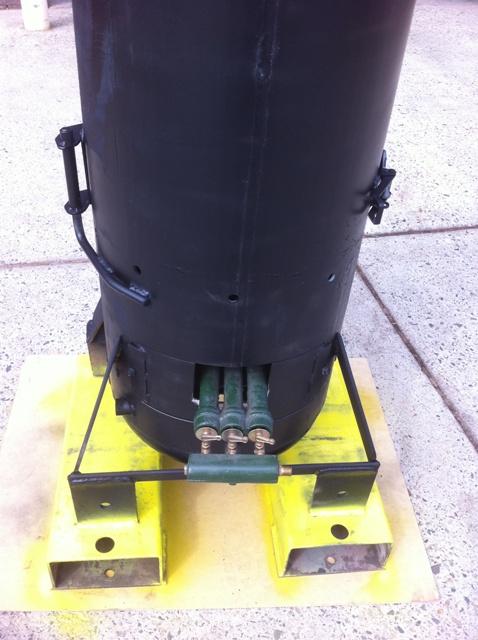

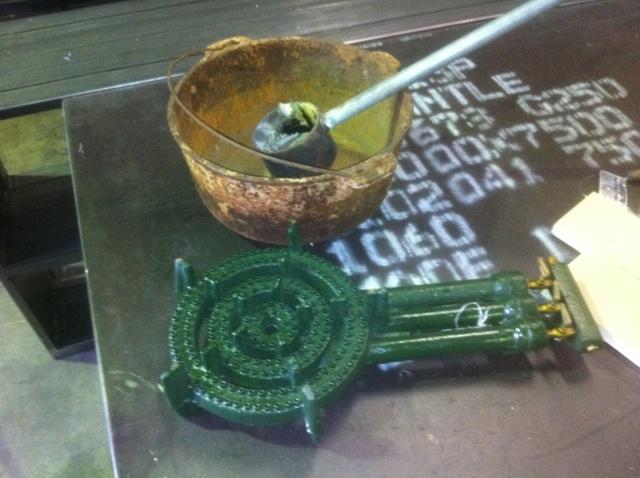

Then i got the gas burner and a large camp oven ( pot )

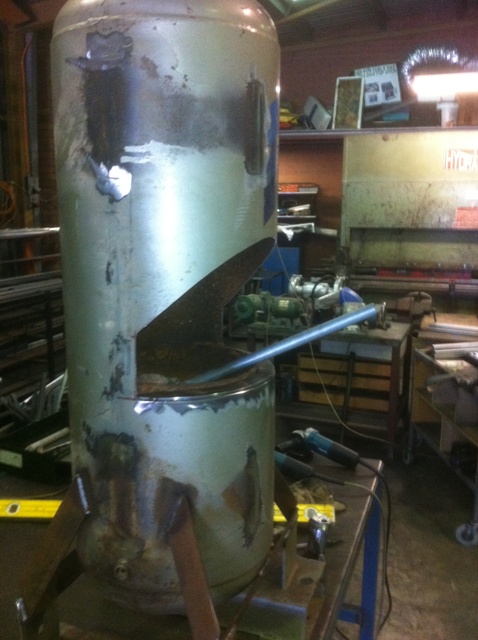

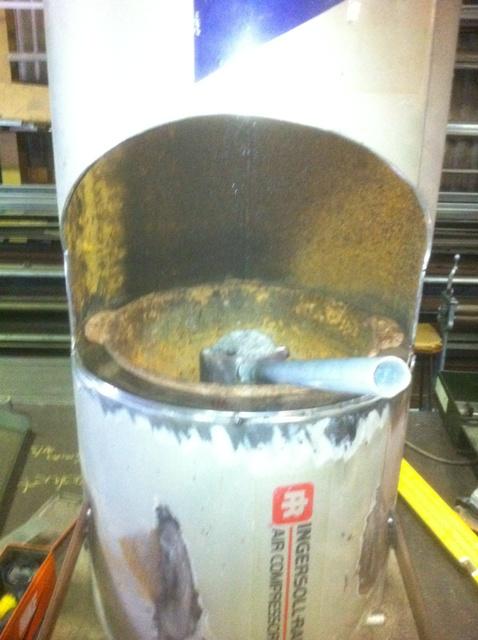

I worked out how to fit these to the tank and started cutting the tank open

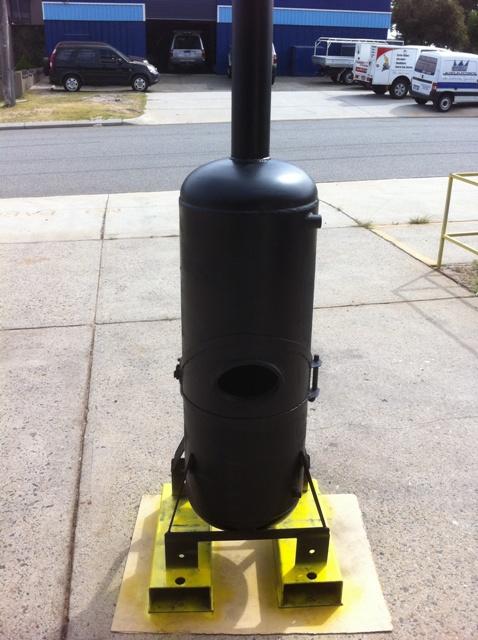

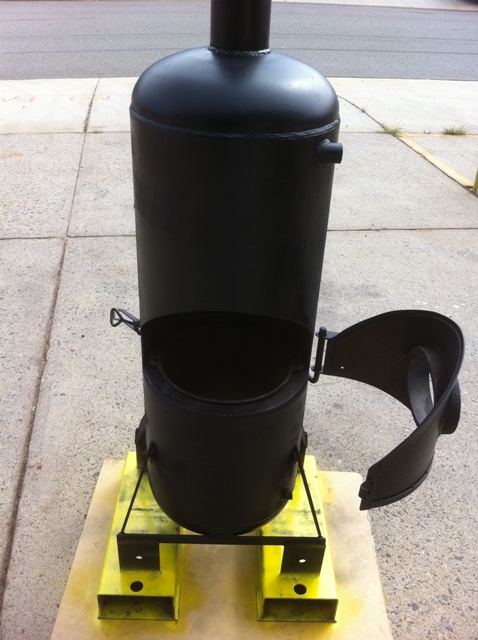

A few finishing touches to the door and a coat of high temp paint .
I intend to use this kiln for large melt's of scrap lead to be turned into ingot's.
It will run of a 9kg gas bottle.
I also have an extraction fan to fit to the flu to remove fumes .
It will be used outside as well for ventilation . ( I fully understand the dangers of working with lead )
Cheers Grant .
Image Upload:
alfred
Posts: 3097
Date Joined: 12/01/07
I bow to you.What a cool
I bow to you.
What a cool project!
chris raff
Posts: 3257
Date Joined: 09/02/10
Well Done Grant
looks the goods...wish i could weld half as good...is your boat back in the water as yet ,been awaiting report on the raymarine E7 you brought hows that going
“Intelligence is like a four-wheel drive. It only allows you to get stuck in more remote places.”
grantarctic1
Posts: 2546
Date Joined: 03/03/11
Hull fixed
It's been slow on the boat fix (work keeps getting in the way ) Over Xmas i had to strip it and flip it over. There were broken stringers and a few bad spot's that needed to be replaced.
Ive been recording it on the GoPro in time laps, and when im done will post the complete video.
Cheers Grant..
adam87
Posts: 291
Date Joined: 16/05/11
mate wat an outcome
mate wat an outcome
very impressed with that!
makai
Posts: 459
Date Joined: 28/10/08
I'd be happy with that in my lounge room
I'd be happy with that in my lounge room
Lamby
Posts: 3145
Date Joined: 04/08/09
Excellent mate, you have some
Excellent mate, you have some fine skill & ingenuity
glastronomic
Posts: 892
Date Joined: 16/02/11
Top stuff, good engineering
Top stuff, good engineering at it's very best!
big john
Posts: 8756
Date Joined: 20/07/06
Looks
Looks shit hot mate. Is the flue going to extend through the roof of the shed or is it an outdoors thing?
WA based manufacturer and supplier of premium leadhead jigs, fligs, bucktail jigs, 'bulletproof' soft plastic jig heads and XOS bullet jig heads.
Jigs available online in my web store!
till
Posts: 9358
Date Joined: 21/02/08
Looks like he left the fork
Looks like he left the fork skids on it for outside!
grantarctic1
Posts: 2546
Date Joined: 03/03/11
Outside
Yeah as Jaime said, I put the skids on as a base so it could be moved with a forklift. I thought if it was still hot and wanted to move it this would be the best and safest way.
I put the pipe (flu) on top to remove fumes. (hot air rises just like a fire place ) But as an extra i have an extraction fan connected to flexable ducting.
The whole kiln goes outside, the ducting slips over the flu and the extraction fan is on the end. (away from the heat ). The fan just takes the toxic fumes away from the work area and into open air.
Also i only do this at my factory in a registered comercial area.
Dicey
Posts: 912
Date Joined: 23/07/10
One word "WOW".
One word "WOW".
southcity104
Posts: 1659
Date Joined: 27/01/09
Nice work!!
Love it. can i hire?
"Its a life style job"
franke
Posts: 32
Date Joined: 02/08/10
just in time
were outta sinkers
nice work
grantarctic1
Posts: 2546
Date Joined: 03/03/11
Ha Ha
Ha Ha . That's what happens when you fish the 5 Fathhom Bank all the time.
No probs Bro, i'll always sort you out with a few nut's and bolt's . lol
fisho-ron
Posts: 2539
Date Joined: 26/09/09
you are a man of many
you are a man of many talents/ideas...awesome mate!
the idea of hiring out sounds good, maybe even a couple for sale would be the go?
grantarctic1
Posts: 2546
Date Joined: 03/03/11
Thanks
Thanks to every one for the comments.
Ron, i havent thought about sale or hire i just do it for fun and usualy share sinkers with my friends. , my grandfather taught me to make sinkers on an open fire when i was 5 years old and ive been doing it ever since then.
I'm happy to do a deal (not for money) with FW members , i'm not a site sponsor and don't want to breech any rules about selling merchandise.
Normaly i organize a Sat or Sunday , we all help out and make enough sinkers to share , have a beer and a chat .
Cheers Grant
franke
Posts: 32
Date Joined: 02/08/10
not the five
and its not me loosing em its your nephew and his mum
