New deck, again.
Well that was a mission.
After using a hole saw to dig into a soft spot on the deck uncovered rot and catastrophic delamination in my 3 year old deck, I bit the bullet.
Over the past months, I made a replacement deck out of the boat and consolidated lots of glass and resin. It still wasn't enough but we now have a new deck. 18mm ply with two layers of 600gsm uni directional glass mat on top along with 10 meters of 400gsm thrown in there for good measure.
Also thrown in is 16kg of expandable foam to stiffen the heck out of it. Under the deck we have jarrah on top of the frames glued and glassed. Lots of epoxy glue, q cells, sikaflex and 316 screws.

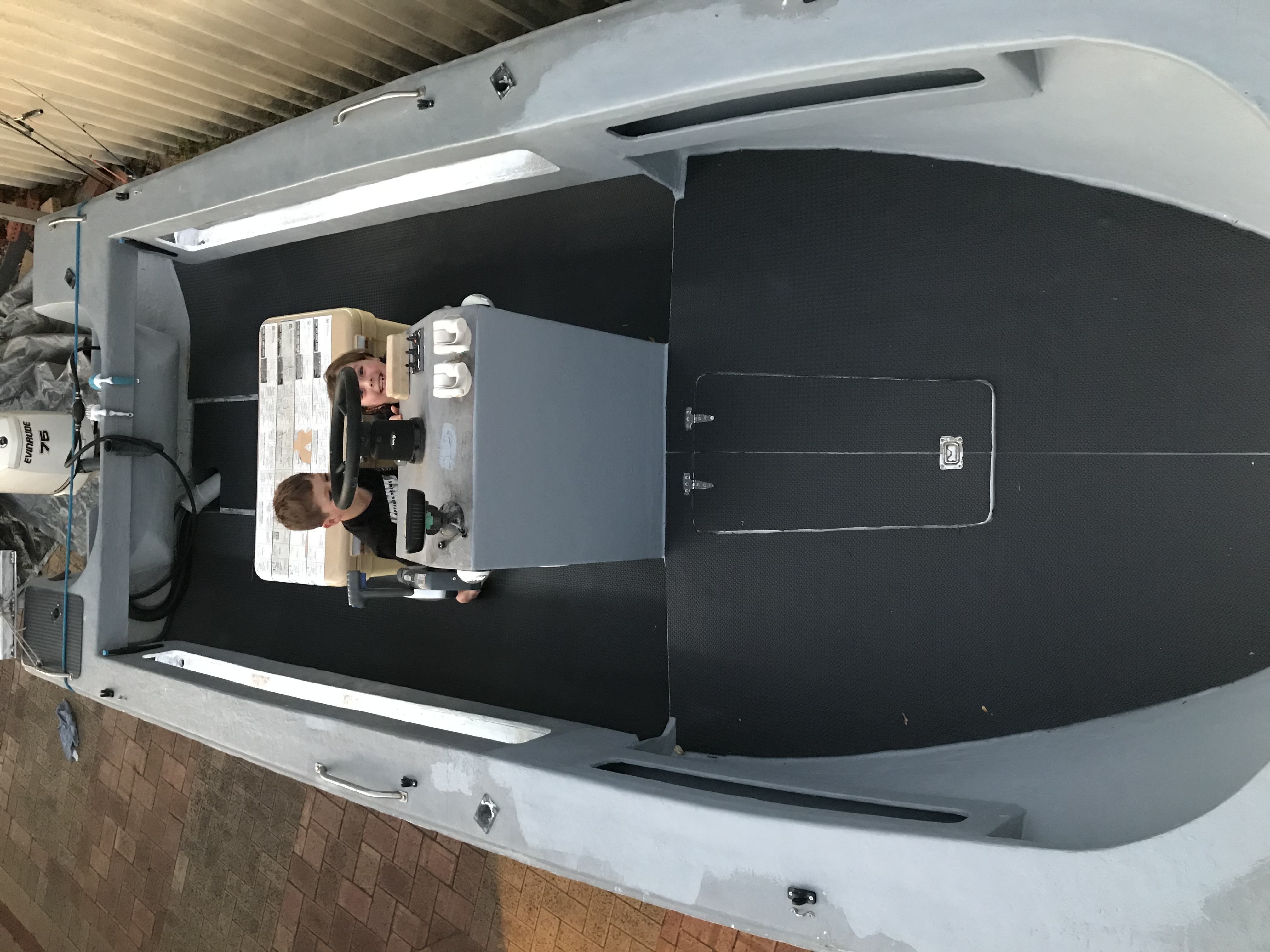

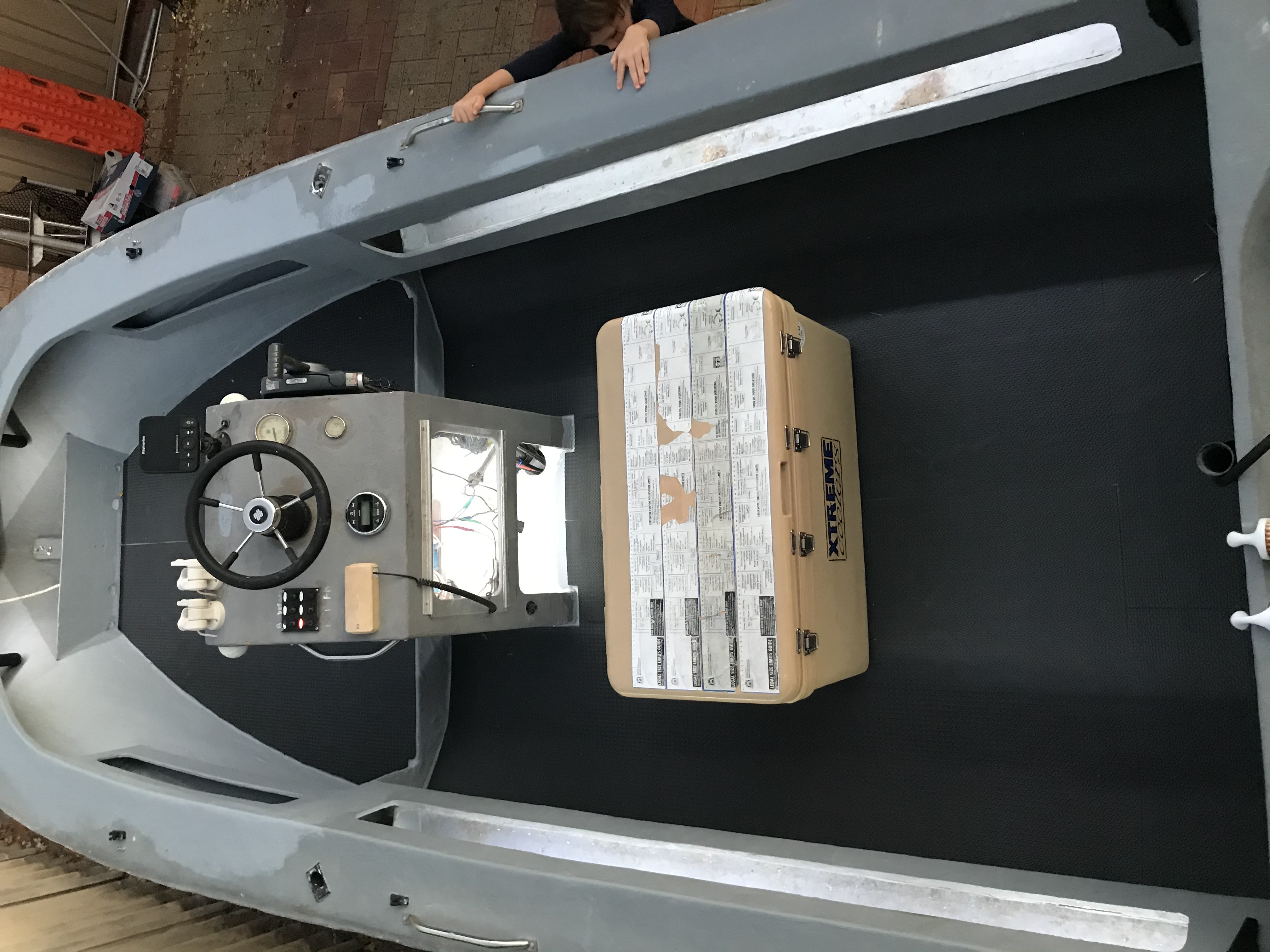

Instead of carpet, I opted for udek. A kiwi product that I saw in a post by Ranmar. It is denser than Seadek/deckarmour. The Deckarmour rep wouldn't return my calls so no idea the cost there but the Udek cost me $250 for a 2m x 1m sheet. I used 5 so it is a bit more expensive than carpet at 30 per lineal meter...
Anyhoo, she is stiff and solid again with quality timber under the glass. Next year will be time to paint the outside then get her ready to sell.
Bring on Aluminium plate!
.thumbnail.jpg "Nice start to the day")
Faulkner Family
Posts: 18035
Date Joined: 11/03/08
Well done. That deck would
Well done. That deck would add a few kg's not to mention it should outlast the hull.
RUSS and SANDY. A family that fishes together stays together
Swompa
Posts: 3893
Date Joined: 14/10/12
It's around 100kg based on a
It's around 100kg based on a rough estimate. The old deck I removed was very heavy along with the waterlogged foam so I guess I took about that much when I did the job last time. The boat was very light and didn't dig a hole so felt every ripple. We took it out today and it is far quieter and feels very solid.
The foam deck gets a bit toasty as opposed to carpet but on the other hand, it dries off very quickly!
Rick
Posts: 1113
Date Joined: 22/12/06
Good
Pain in the butt you had to do it all over again, but it looks the goods now
PGFC Member
sea-kem
Posts: 15002
Date Joined: 30/11/09
Paul, that looks sweet!!
Paul, that looks sweet!!
Love the West!
Swompa
Posts: 3893
Date Joined: 14/10/12
Thanks mate! Many hours of
Thanks mate! Many hours of itch there!
I also made a new ladder for it and wound up dads 40 year old welder...and reminded myself why I go to you!
Feral
Posts: 1508
Date Joined: 01/11/06
Just curious.. Did you paint
Just curious.. Did you paint the underside of the deck both times (now and 3 years ago)?
Swompa
Posts: 3893
Date Joined: 14/10/12
Yeah mate. Painted with

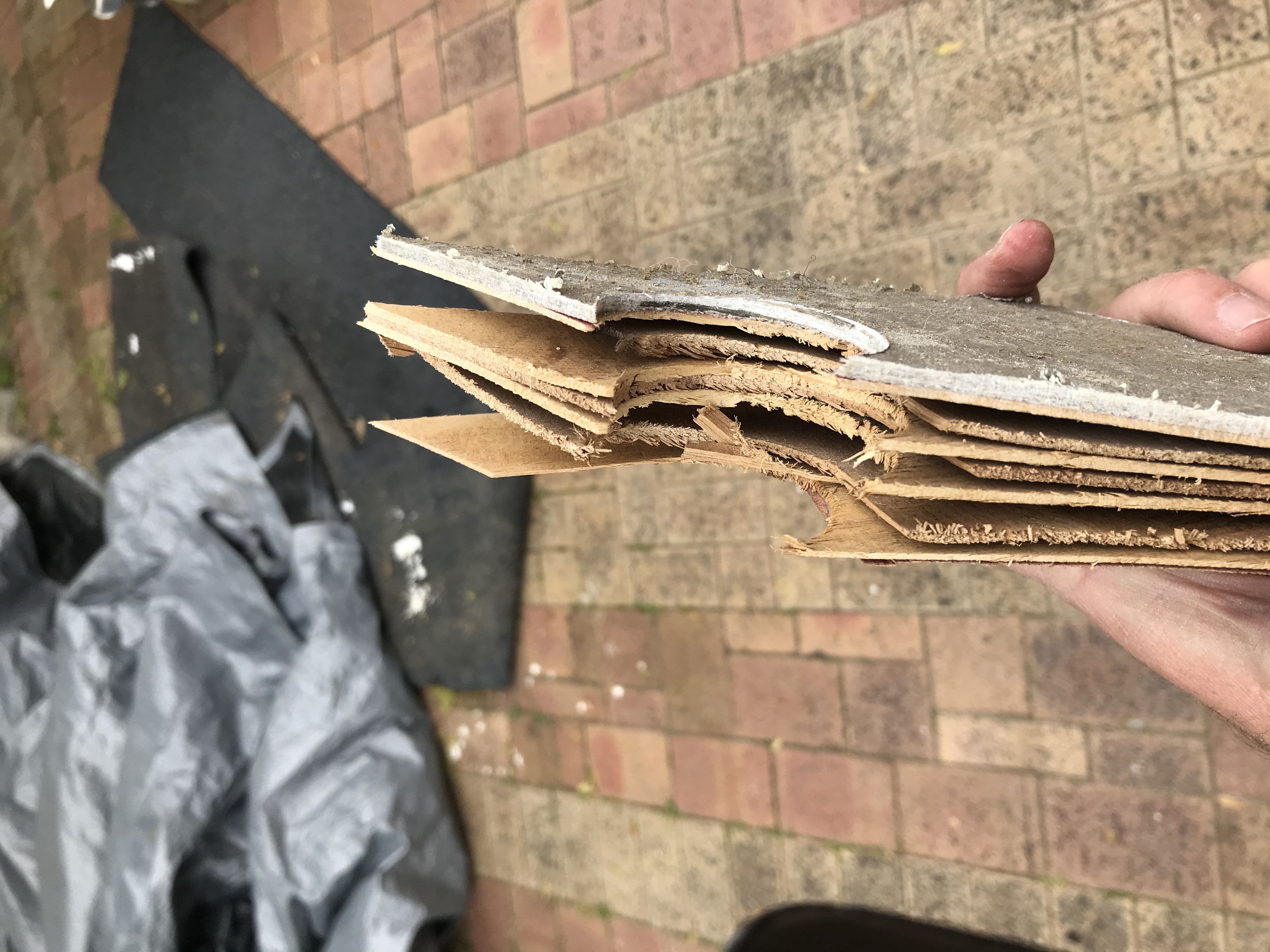

Yeah mate. Painted with polyester resin on the underside and glasses on the top. In some parts, after I cut pieces out, everything between the outer layers had fallen apart.
Everything is soaked again this time but the wood is far better quality and is actually marked with the manufacturing standard.
Foam packed up to the underside of the timber this time will help avoid the start of any flex and any water ingress.
Strong like tractor!
davewillo
Posts: 2410
Date Joined: 08/09/16
Looks good mate. At least
Looks good mate. At least you know this time it'll be solid until you sell it.
PGFC member and lure tragic
Swompa
Posts: 3893
Date Joined: 14/10/12
Well thats the plan! The boat
Well thats the plan! The boat is solid and just needs some beautification so it doesnt look like a work horse.
The plan was for the inside to happen first then the outside though the trailer took precedence. One day I will get to the outside and address the bore water stains from 8 years ago...
