Repair rod holders - welding
Submitted by bsir on Fri, 2018-01-05 05:43
hi,

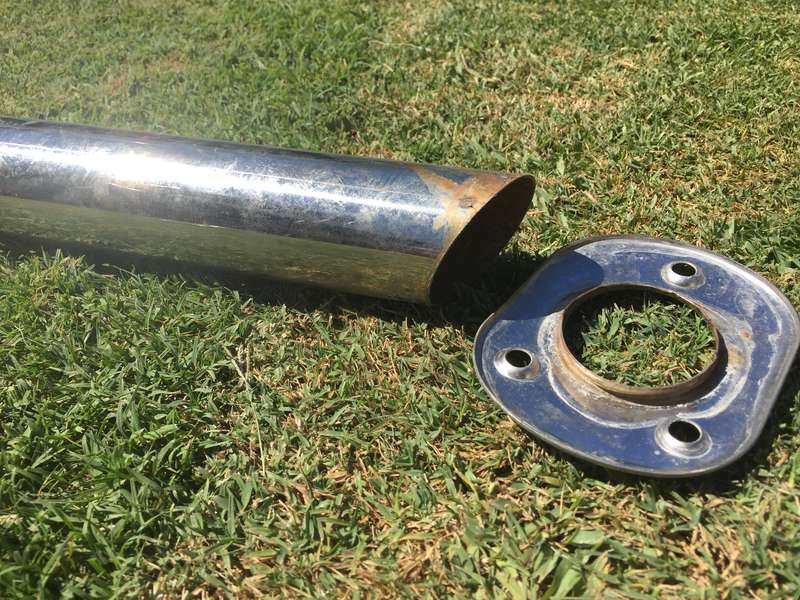

ive now got a couple of rod holders that look like the attached. While it's pretty cheap and easy to replace them , I'd rather get stronger ones.
my options are buy something to replace them, or get these welded up properly. I'm not sure how a full weld on 2mm ish SS would go and whether it's worth the hassle. From the factory, these just have 4-5 spot welds on them that fail.
what have others done?
Can anyone recommend some rod holders built to last?
thanks
blair
Image Upload:
.thumbnail.jpg "Morning Light Sunday 17-12-06")
crano
Posts: 695
Date Joined: 04/11/09
Weld them
I have the same ones but mine only have 3 tacks on each.
I just got a small staino rod andtacked them again using lots of tacks.
bsir
Posts: 565
Date Joined: 24/04/11
SS
Do the SS welding rods work OK on a manual arc welder?
ive seen them around, but always been sceptical.
grantarctic1
Posts: 2546
Date Joined: 03/03/11
They work fine
They work fine , but i havent used them on thin metal much. Probaly as sugested above , lots of small tacks ..
sea-kem
Posts: 14851
Date Joined: 30/11/09
As Grant says they work fine
As Grant says they work fine and you would have to be a gun arc welder (no names mentioned :P ) to tack them. Mig is the way to go as they are made from probably .6 material, tissue paper in other words.
Love the West!
ranmar850
Posts: 2702
Date Joined: 12/08/12
Solid ones are cheap enough on ebay
just look for the ones described as Cast--also, some of the ones (but not all) described as heavy duty also have cast tops. try to get a lok at the picture of them, and you will see that they look different to what you have, with a heavy cast top fully welded on . Thi is just one type, plenty more out there. just avid the ones like yours with the pressed, curved tyoe top--they are all weak.
www.ebay.com.au/itm/Stainless-316Rod-Holders-Heavy-Duty-Deluxe-with-Drain-Flush-Mount-3069/112491266555
ranmar850
Posts: 2702
Date Joined: 12/08/12
Solid ones are cheap enough on ebay
just look for the ones described as Cast--also, some of the ones (but not all) described as heavy duty also have cast tops. try to get a lok at the picture of them, and you will see that they look different to what you have, with a heavy cast top fully welded on . Thi is just one type, plenty more out there. just avid the ones like yours with the pressed, curved type top--they are all weak.
www.ebay.com.au/itm/Stainless-316Rod-Holders-Heavy-Duty-Deluxe-with-Drain-Flush-Mount-3069/112491266555
travis89
Posts: 57
Date Joined: 27/12/14
these i use
alluminium large pop rivet them in, then you wont get any corrossion from disimilar metals (if your boat is ally)
www.ebay.com.au/itm/NEW-Aluminium-Rod-Holder-Cast-Alloy-Fishing-Rod-Holder-Bolt-or-Rivet-On/252484964450
these are the way to go strength wise... they dont look as good as ss stuff tho
sea-kem
Posts: 14851
Date Joined: 30/11/09
The problem is where the
The problem is where the salt water gets under the holder and cooks away. They need to be sealed up to cure that problem.
Love the West!
