Splicing trailer wiring
Submitted by Ericl on Sun, 2013-06-02 15:08
Hi all

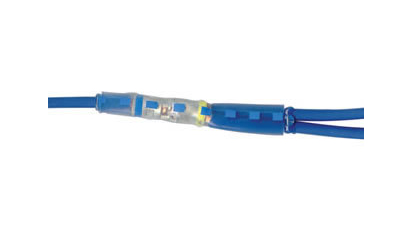

Re-wiring a trailer and will need to connect2 wires to one in some areas. I came across this on another forum, but the chap who posted didn't mention who the seller was. Just that he got it on ebay. Wondering if anyone has seen anything like this and where they can be sourced.
Thanks for any leads
Eric
____________________________________________________________________________
Don't spend all your money on beer, boats, and fishing. Save some to spend foolishly
Image Upload:
Reefmonkey
Posts: 711
Date Joined: 22/09/08
crimp/silicone/heat shrink thingos
Hillarys boat and tackle sell them, great product, use them on all the connections on boat and trailer, not cheap though i think $7 gets you 4or5.
Dave J.
duges66
Posts: 138
Date Joined: 07/03/12
You could try Martins trailer
You could try Martins trailer parts O'Connor.
There's 3 kinds of people in this world, those who can count and those that can't.
Ericl
Posts: 450
Date Joined: 02/05/11
Thanks for that.Dont think
Thanks for that.
Dont think Martins do them, but I'll get some from Hillarys, I can get away with about 5 of them.
Been looking for these for a few years now, since I last re-wired another trailer
Cheers
Eric
Don't spend all your money on beer, boats, and fishing. Save some to spend foolishly
kempy
Posts: 810
Date Joined: 28/05/09
The only way to do it is
The only way to do it is solder and duel wall heat shrink nothing will get in there then.
Dinkum Auto Electrical A/C & Mechanical Unit 10/16 Kent way Malaga 0438755754 Also Mobile
Open 7 days except when we are fishn For all your auto electrical needs
Vinesh87
Posts: 2751
Date Joined: 02/04/11
Yep agree with that !!
Yep agree with that !!
Ericl
Posts: 450
Date Joined: 02/05/11
Thanks KempyI better do a
Thanks Kempy
I better do a good job. You guys are going to do the final wiring to the connector and also install an in car controller. I'll see you about that in a week or 2
Eric
Don't spend all your money on beer, boats, and fishing. Save some to spend foolishly
Muppet
Posts: 408
Date Joined: 23/11/09
Join at drawbar
When i rewired my last trailer, i ran independant cables either side and into the plug at the drawbar. no chance of water ingress then and no black wires.
.
Stevo81
Posts: 1278
Date Joined: 16/04/12
Agree. Run single cables up
Agree. Run single cables up to a weatherproof Luca box on the draw bar. Then you can join single cables to your hard wired sealed fittings with glue-lined heat shrink. Will not fail.
•••••••• Electrical Contractor NOR ••••••••
alfred
Posts: 3097
Date Joined: 12/01/07
I agree, join at the draw
I agree, join at the draw bar, run individual wired down.
squidder
Posts: 457
Date Joined: 03/09/10
Couldn't agree
more. I buy all my LED's with 9mtrs of wire attached which makes it so easy.
I strip the last metre or so of wire and pass it through 6mm air line to the plug and fasten the trailer end down with a saddle harness which eliminates the cord getting snapped when some clown trips over it.
Muppet
Posts: 408
Date Joined: 23/11/09
bet
you didnt have to do that with your new tub......
.
petermac
Posts: 2946
Date Joined: 03/03/10
the best way
the best way is to solder your joints and heat shrink them with epoxy lined heat shrink then tape them with scotch 23 tape (self vulcanising tape) then place all the connections in a small scotch cast and then fill the scotch cast with the epoxy that comes with the scotch cast when the epoxy has solidified nothing is ever getting in there, scotch 23 tape comes with a scotch cast kit you can get them from auslec , M&M , Laurance and Hanson or most electrical distributors might cost you 50 dollars for the scotch cast kit but can tell you it will never fail and you will have peace of mind
tim-o
Posts: 4657
Date Joined: 24/05/11
I solder, coat in rtv then
I solder, coat in rtv then wrap in insulation tape
I am, as I've said, merely competent. But in an age of incompetence, that makes me extraordinary.
Ericl
Posts: 450
Date Joined: 02/05/11
Thanks for all the
Thanks for all the suggestions everyone.
I will post some pics of the connections as I complete them mid week. Publice holiday (and squidding today) and a bit of a fish on Tuesday
Cheers
Eric
Don't spend all your money on beer, boats, and fishing. Save some to spend foolishly
Travisd
Posts: 315
Date Joined: 07/05/11
Red2go
Get that dual walled heat shrink from steve- use the stuff on everything from lure rigging to electrical.
was gonna get some larger stuff to cover the rod rash on my trolling gear too
Baron Sportsman
Just the depth that Varies
Splashback
Posts: 82
Date Joined: 25/06/12
glue line d heat shrink
is def the go. But TEST the lights first....
Rods: a few
Reels: a few too
Personal best: eaten and forgotten
Location: North Mandurah
scubafish
Posts: 949
Date Joined: 15/08/12
wiring
What i do is ,solder(use flux),coat soldered area with small amount of silicone (i use a syringe without the needle of course)slide the heatshrink over the area and shrink until silicone comes out of join , no more to be done.Cheap clear silicone is ok,also gives the connection flexibility and reinforcement.If you only put enough silicone in the syringe to do the job it is easy to clean out when it drys.Complies with marine standards for elec joins in wiring for boats,all joins must be siliconed and heat shrinked, so i have been told .
