23 ft pro line broaching considerations

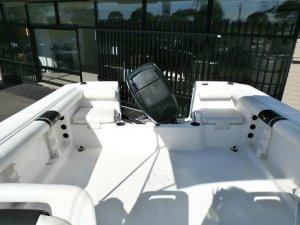

Time to upgrade from my Baron sportsman, I cant justify pumping another $15K into it to upgrade the inboard as I just don't trust it anymore to head out far. I am considering a 23' Pro Line but am concerned about the transom in a following sea, seems to me it could be a concern considering the large gap. I was hoping any Pro Line owners or those familiar with transoms like this could give me some advice.

Thanks in advance

Image Upload:

hayden's picture

Posts: 164

Date Joined: 10/01/10

 If you can find one mate

Fri, 2014-12-26 13:27

 If you can find one mate look at a wellcraft or even the sea fox and sailfish pro line are good but tend to crack as I have also looked at them and did my research on them

pricey10's picture

Posts: 486

Date Joined: 07/01/12

 sea fox over a proline or

Fri, 2014-12-26 14:01

 sea fox over a proline or sailfish? Your must be joking

____________________________________________________________________________

Karratha. WA

Posts: 407

Date Joined: 12/03/10

Keywest

Fri, 2014-12-26 17:02

 I have a 225cc Keywest Awsome boat have done big seas with this one was out 30 mile norwest today from two rocks with a howling south south wester did it no drama

Paul H's picture

Posts: 2104

Date Joined: 18/01/07

Main things you want to

Sat, 2014-12-27 14:38

Main things you want to consider is

Broaching per say would not be the problem but taking a wave over the stern

1. Height of the gap at the front (as in spilling water into the cockpit) above the water line and the ability of the engine well to catch any water before it spills into the cockpit including through holes made for steering cables etc. and their height (ideally any steering cable holes should be as high or higher then the front part of the engine well).

2. Height of the suppers above the water line (ABYC standard states the length of the boat in metres x 1.83 gives you the height the deck (or scuppers) should be above the water line (with the boat at its normal waterline position) - i.e a 7.31m boat (7.31 x 1.83 =13.37) should have scuppers sitting at least 13.3cm above the waterline.

The above design would certainly rule out heavy reversing into a sea.

Apart from that its not what I'd call a great transom design for fishing (the back corners).



____________________________________________________________________________

Youtube Channel  -  FishOnLine Productions

https://www.youtube.com/channel/UCbUVNa-ViyGm_FTDSv4Nqzg/videos

Posts: 17

Date Joined: 26/12/11

Thanks for that Paul H. I

Sun, 2014-12-28 09:58

Thanks for that Paul H. I agree and will continue searching. I've been really happt with the old baron and will look for something with a similar transom. Some Trophy's look good, except those with that euro transom or whatever they call it.



terboz123's picture

Posts: 1358

Date Joined: 13/04/11

 hey mate... i had a pro

Sun, 2015-02-22 10:10

 hey mate...



i had a pro line...went all the way to the trnech, and did numerious northern island missions. never had a issue with broaching or waves comming over the stern and i had been insome narly stuff!!!



him me with a pm for more questions and honest answers



B
