Sounder pics added Installing the Airmar R199 in the back of a Baron Sportsman.
Submitted by wangler on Sat, 2011-07-09 18:07

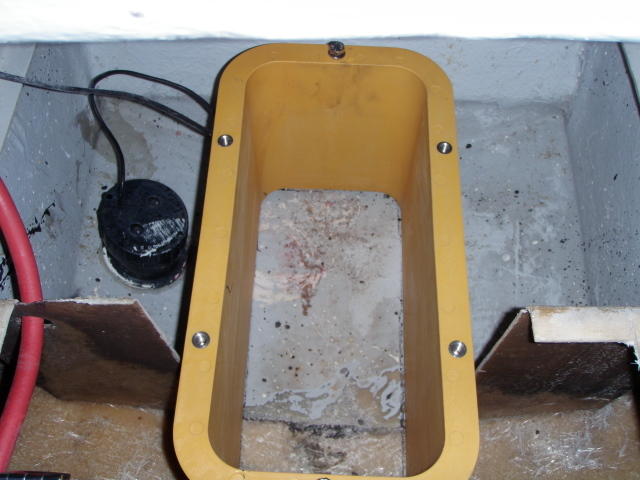

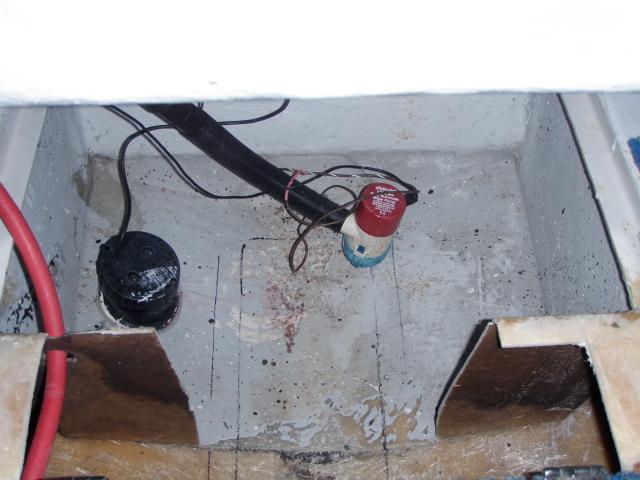

As you can see the difference in size of the 600w in hull on the left.
Sounder pics added, pretty sloppy conditions, no fish only green eyes today until we headedto the 90m late arvo and got our bag limit in 1 hr - close to the tide change.
____________________________________________________________________________
Want to make someone mad... tell a lie! Want to get the world upset... tell the TRUTH !
Dougie
Image Upload:
Lamby
Posts: 3145
Date Joined: 04/08/09
good thread mate
good thread mate
southcity104
Posts: 1659
Date Joined: 27/01/09
Thats one serious foot!
what unit sounder unit are your running?
"Its a life style job"
wangler
Posts: 607
Date Joined: 26/04/08
The FCV 295
The FCV 295
Want to make someone mad... tell a lie! Want to get the world upset... tell the TRUTH !
Dougie
till
Posts: 9358
Date Joined: 21/02/08
Thats a big job, good to see
Thats a big job, good to see it coming along!
Lastchance
Posts: 1273
Date Joined: 02/02/09
Great sounders. A lot of
Great sounders. A lot of purchasers get a bit surprised when it arrives as the transducer doesnt look that big on the internet!
wangler
Posts: 607
Date Joined: 26/04/08

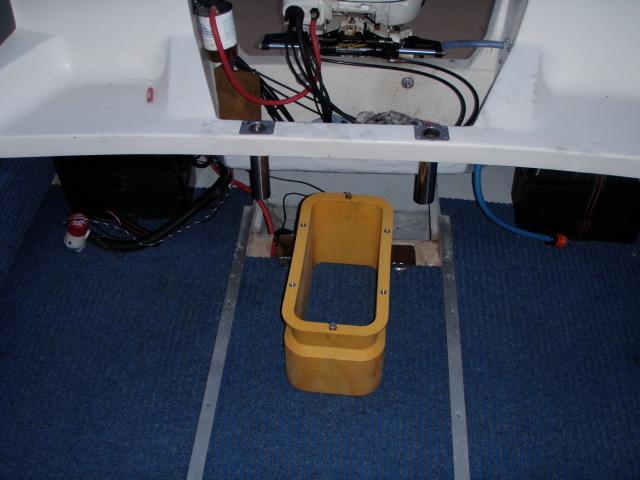

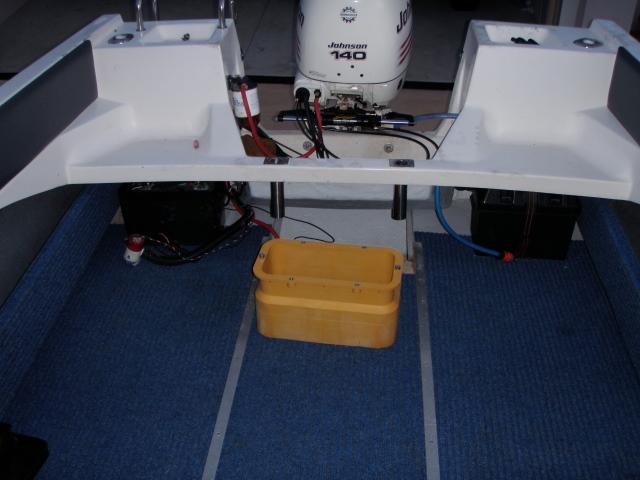

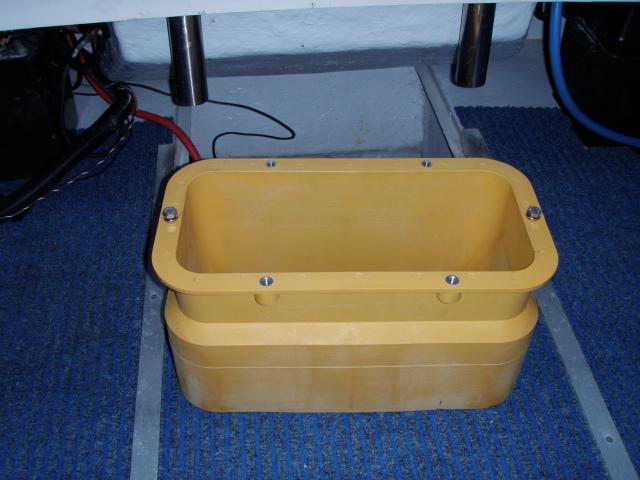

I made a 'dummy' box
1st to see how it would go in...but another 20kg in the back, may have to put the batteries up front somewhere now.
Want to make someone mad... tell a lie! Want to get the world upset... tell the TRUTH !
Dougie
Lucky Tim
Posts: 2536
Date Joined: 28/11/07
you've obviously checked the
you've obviously checked the keel for wood? I was advised to offset mine from the keel to one side as, while there was no wood in my keel, the extra glass made that area thicker.
wangler
Posts: 607
Date Joined: 26/04/08
Solid glass where I'm putting it
The 600w was 3cm off centre before and I had a great picture, so I presume I will get a great pic with the new one, I'll fill the back with water before I set it in place to see how it reads, just to be sure
Want to make someone mad... tell a lie! Want to get the world upset... tell the TRUTH !
Dougie
Tomcat
Posts: 614
Date Joined: 24/02/11
295
Looking at doing same what way are you going to fix box to floor
wangler
Posts: 607
Date Joined: 26/04/08

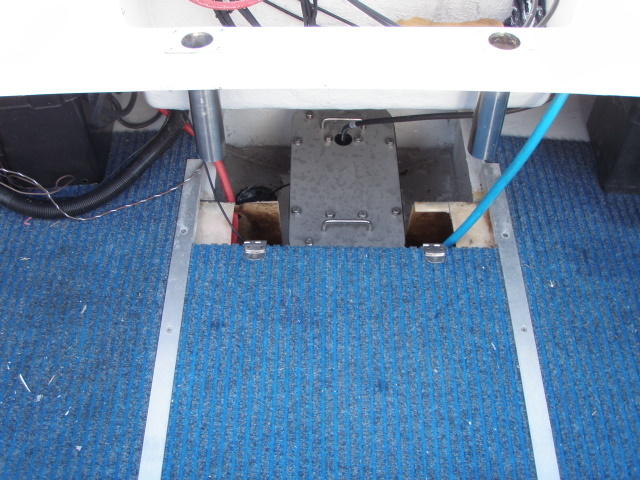

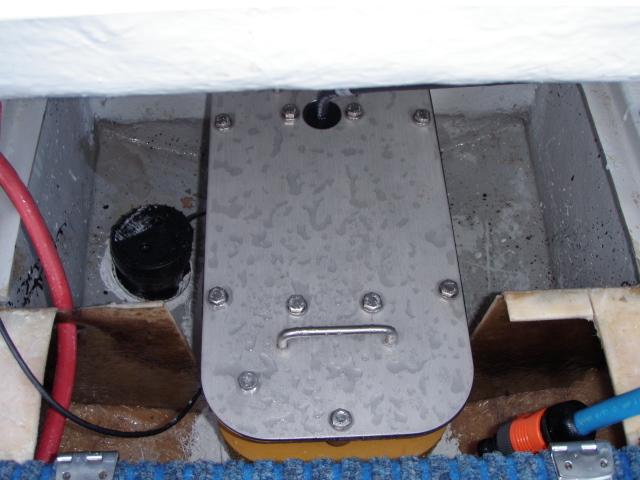

Installing the Airmar R199 pics added
Now hopefully the weather holds out on Wednesday for a deep test.
Want to make someone mad... tell a lie! Want to get the world upset... tell the TRUTH !
Dougie
fisho-ron
Posts: 2539
Date Joined: 26/09/09
hey mate, is that a p79 nex
hey mate, is that a p79 nex to the big one?
if so i would love to see the differance in the 2.
i run the p79 and was thinking about the 1 kw as well.
wangler
Posts: 607
Date Joined: 26/04/08
yip
an airmar 600w in hull, great reading to 100m, had to move it up. When I go deep I will sure put up pics of the two diif readings
Want to make someone mad... tell a lie! Want to get the world upset... tell the TRUTH !
Dougie
Dizzy
Posts: 753
Date Joined: 21/02/11
Nice thread. PS : love the
Nice thread.
PS : love the Johnno branded Zukes - wish they still did them !
Just sold a sweet 115 Johnson to buy a 150 Zuke - but way prefer the look of the Johnson.
wangler
Posts: 607
Date Joined: 26/04/08
Did a test run today in sloppy conditions
Seems the deeper I went the better it performed. Hopefully head out to the 300m + on wed if I can get a day off.....will take some pics if I find anything
Want to make someone mad... tell a lie! Want to get the world upset... tell the TRUTH !
Dougie
grantarctic1
Posts: 2546
Date Joined: 03/03/11
Cant Wait
Cant wait to see your results. Very interesting thread and great info, thanks for sharing .
Cheers Grant..
wangler
Posts: 607
Date Joined: 26/04/08

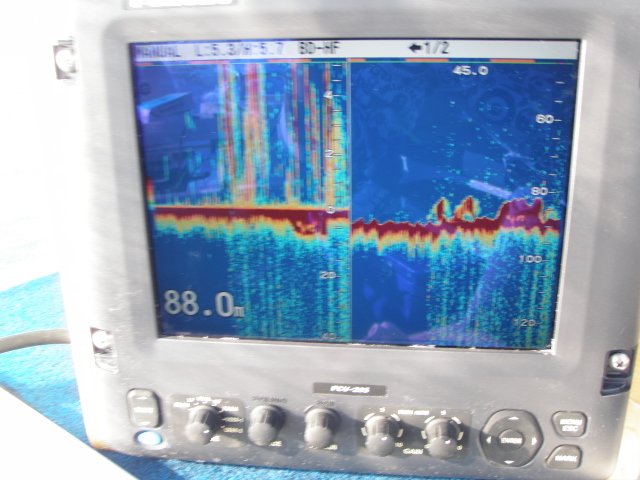

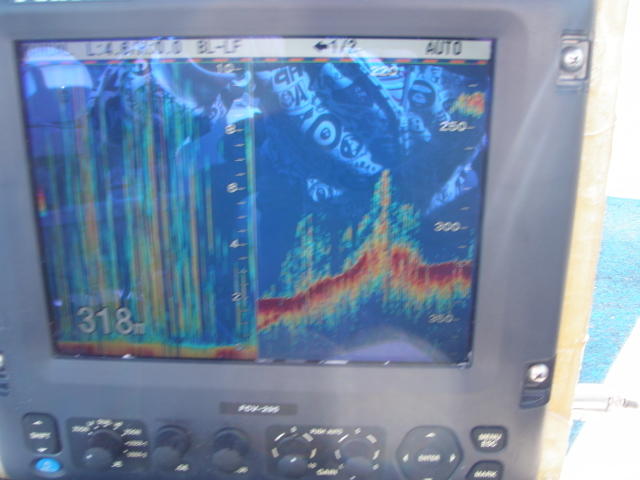

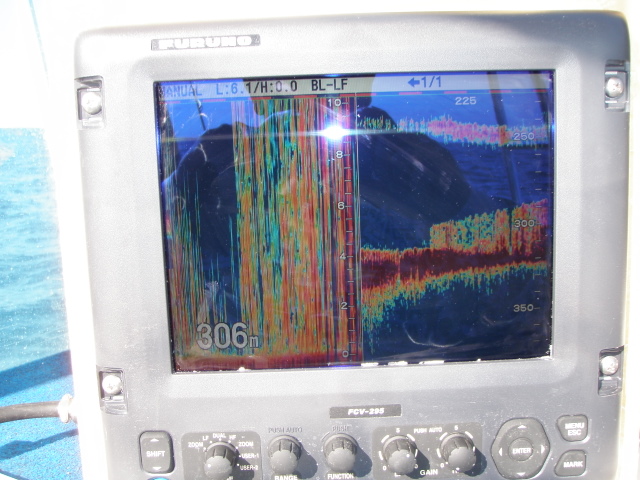

Sounder pics added
Very sloppy conditions on Wed, about 8-10knt SE and a 2m swell...only greeneyes. Came into the 90m mark and got our 6 fish in 1 hr
Want to make someone mad... tell a lie! Want to get the world upset... tell the TRUTH !
Dougie
till
Posts: 9358
Date Joined: 21/02/08
The sounder pics are looking
The sounder pics are looking good, just gotta skip the green eyes next time ;)
