stone deflectors - part duex

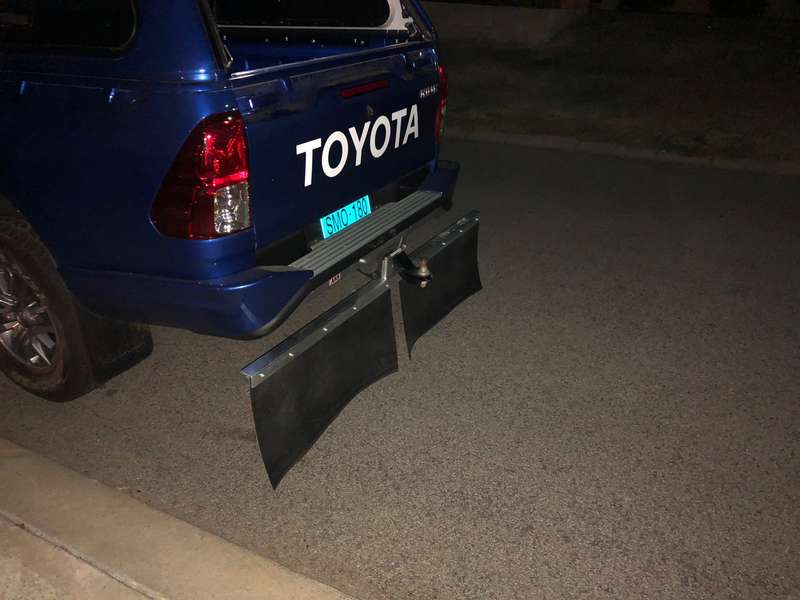

probably to JohnF's disgust, I googled some stone deflectors, but was put off by the price (starting at $370+...), so I managed to fashion these ones up with steel from site, and a bit of conveyor belt rubber I had laying around. they're 1850mm wide, and drop 450mm. I'm yet to decide if I need to cut an exhaust hole out. they take around 1 minute to install, so I'll only be putting them on when I hit the dirt track.

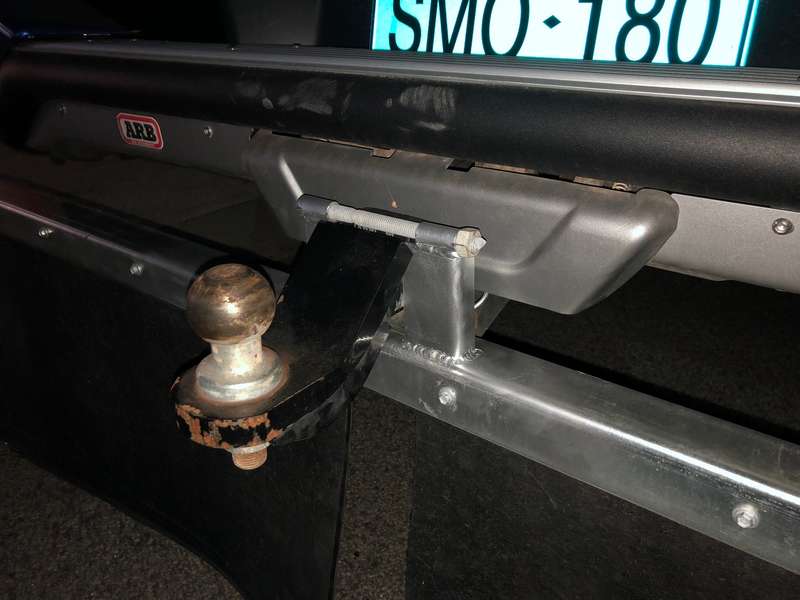

I welded up a bracket that will fit around any standard Reece hitch/tow bar of 50mm SHS, so if anyone wants to borrow them after I've returned from my trip, I drink Gage Roads Little Dove... :)

Image Upload:

piston broke's picture

Posts: 663

Date Joined: 05/11/08

Looks

Sat, 2018-05-19 08:03

 really good, nice job. cheers Pete.

 ps I think the exhaust will be fine

kirky79's picture

Posts: 1165

Date Joined: 13/01/12

Looks the goods

Sat, 2018-05-19 10:16

I made some up very similar to yours. As piston said don't worry about the exhaust. I had mine on the D max all the way to Coral Bay no dramas.

JohnF's picture

Posts: 2698

Date Joined: 07/07/10

Old Skool DIY. Respect

Thu, 2018-05-24 15:30

Old Skool DIY. Respect Scotto.

____________________________________________________________________________

Boston Whaler 235 Conquest......getting the flogging it was built for.

mrwinta's picture

Posts: 457

Date Joined: 14/01/10

 Mate they could be a bit

Fri, 2018-05-25 16:21

 Mate they could be a bit low.... I made some in a similar way but found on the Ningaloo stn track that they made contact with the ground and caused stones and dirt to fly up... I did however make them from door matting which would grab the loose dirt more than the smooth rubber..



Take a stanley with you so you could trim them if you had to- otherwise it looks like a neat job- well done
